REMEHA-COMMERCIAL
GAS 2000 M & ECO - (Exploded View)
Appliance Code: 2000

Appliance Diagram


Exploded View diagram for Remeha-Commercial Gas 2000 M & EcoClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 1035, (USE S103279) Pressure test nipple 1/8 (USE S103279) PRESSURE TEST NIPPLE 1/8
Remeha-Broag part no. 1035

Part number 25696, (NOW USE S100643) Sealant silicone Red rtv 106 High Temp (tube) (NOW USE S100643) SEALANT SILICONE RED RTV 106 HIGH TEMP (TUBE)
Remeha-Broag part no. 25696

  (USE S25944) CLEANING BRUSH ECO
Remeha-Broag part no. 25944

  FLEXIBLE STAINLESS STEEL TUBE L=40MM
Remeha-Commercial part no. 26446
£140.82
Part number 35956, (NOW USE S101370) Seal tapa cord 8mm (1 Meter Length) (NOW USE S101370) SEAL TAPA CORD 8MM (1 METER LENGTH)
Remeha-Broag part no. 35956

Part number 41755, (NOW USE S100419) Casing front handle (NOW USE S100419) CASING FRONT HANDLE
Remeha-Broag part no. 41755

  MIRROR FLAME DETECTION
Remeha-Commercial part no. 43094
£75.23
  SCREW COUPLING + SEALING RING ?"
Remeha-Commercial part no. 43796
£15.72
Part number 43798, Door snapper female (NEW PART NO. S43798) DOOR SNAPPER FEMALE (NEW PART NO. S43798)
Remeha-Broag part no. 43798

Part number 43799, (USE S43799) Door snapper male (USE S43799) DOOR SNAPPER MALE
Remeha-Broag part no. 43799

  INSERT PIECE FOR CASINGS
Remeha-Broag part no. 45911
£0.31
  SENSOR TEMPERATURE REDUCING NIPPLE
Remeha-Commercial part no. 46678
£16.97
  DISTANCE SUPPORT
Remeha-Commercial part no. 48257
£1.05
Part number 49298, Grommet flue gas temperature sensor GROMMET FLUE GAS TEMPERATURE SENSOR
Remeha-Commercial part no. 49298
£1.35
  RETURN WATER PIPE
Remeha-Commercial part no. 50010
£101.85
  (DISCONTINUED) ELBOW WATER SUPPLY PIPE
Remeha-Broag part no. 50012
£38.58
Part number 50016, Flue gas pipe Gas 2000 FLUE GAS PIPE GAS 2000
Remeha-Commercial part no. 50016

  CABLE FOR FLUE GAS TEMPERATURE SENSOR
Remeha-Commercial part no. 50099
£28.92
  CLEANING BRUSH BOILER BLOCK
Remeha-Commercial part no. 50707
£10.15
  CONNECTION PIECE FLOW
Remeha-Commercial part no. 51398
£86.01
  GASKET FOR FAN SUPPORT RUBBER 96X110X3MM
Remeha-Commercial part no. 51677
£7.50
  CABLE FOR FAN CONNECTION
Remeha-Commercial part no. 51692
£49.54
  SUPPLY WATER PIPE
Remeha-Commercial part no. 52125
£551.98
  CABLE SET FOR INSTRUMENT PANEL M
Remeha-Commercial part no. 52129
£157.54
Part number s100304, SEALING RING 0 150 MM (5 pcs) SEALING RING 0 150 MM (5 PCS)
Remeha-Commercial part no. s100304
£48.55
Part number S100419, Casing Front Handle CASING FRONT HANDLE
Remeha-Commercial part no. S100419
£26.96
Part number S100643, Silicone Sealant Rtv106 SILICONE SEALANT RTV106
Remeha-Commercial part no. S100643
£78.08
Part number S101370, Tapa sealing cord 8mm (5m) TAPA SEALING CORD 8MM (5M)
Remeha-Commercial part no. S101370
£55.93
Part number S103279, Pressure Test Nipple 1/8" Incl Loctite PRESSURE TEST NIPPLE 1/8" INCL LOCTITE
Remeha-Commercial part no. S103279
£29.81
  CLEANING BRUSH ECO
Remeha-Commercial part no. S25944
£36.90
Part number S43798, Door Snapper Female (10 pcs) DOOR SNAPPER FEMALE (10 PCS)
Remeha-Commercial part no. S43798
£22.71
Part number S43799, Door Snapper Male (10 pcs) DOOR SNAPPER MALE (10 PCS)
Remeha-Commercial part no. S43799
£17.74
Part number S45004, Glass inspection c/w gasket 32x32x3mm and screws GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS
Remeha-Commercial part no. S45004
£48.55
  OVERLOAD FOR FAN MOTOR
Remeha-Commercial part no. S47154
£121.08
Part number S53282, Switch On/Off 40c1350al with cap SWITCH ON/OFF 40C1350AL WITH CAP
Remeha-Commercial part no. S53282
£28.39
  ECONOMISER BLOCK C/W GASKETS 12 SECTIONS
Remeha-Commercial part no. S54401
£5,250.74
  ECONOMISER BLOCK C/W GASKETS 16 SECTIONS
Remeha-Commercial part no. S54402
£5,387.79
  ECONOMISER BLOCK C/W GASKETS 20 SECTIONS
Remeha-Commercial part no. S54403
£5,879.42
  FILTER ELECTRICAL EMC
Remeha-Commercial part no. S56742
£651.31

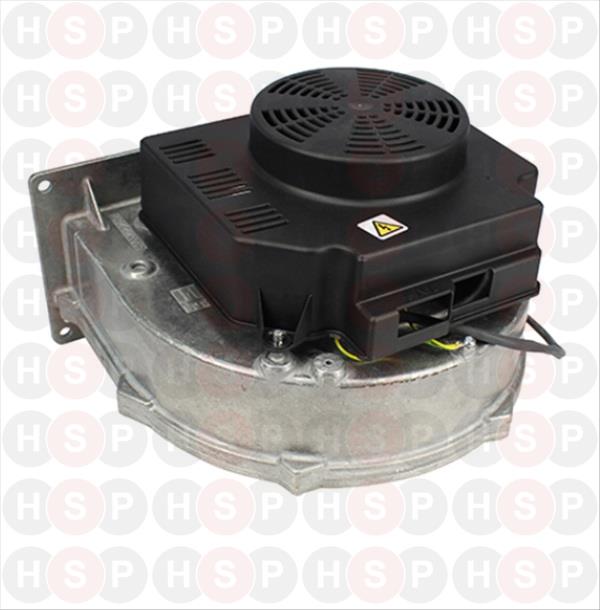

1 Part number S52298, G2000 Fan G2000 FAN
Remeha-Commercial part no. S52298
£576.25
2 Part number 51518, (NOW USE S59650) Gasket fan/mixing piece bend (NOW USE S59650) GASKET FAN/MIXING PIECE BEND
Remeha-Broag part no. 51518

2 Part number S59650, Gasket fan Gas 210 and Gas 310-5-6 section GASKET FAN GAS 210 AND GAS 310-5-6 SECTION
Remeha-Commercial part no. S59650
£11.70
3   MIXING PIECE/ANGLE
Remeha-Commercial part no. 51298
£216.27
3   BURNER HOLDER 12 SECTION
Remeha-Commercial part no. S52955
£721.72
3   BURNER HOLDER 16 SECTION NOW P/N S58676 OR S58679 DEPENDING OF YEAR OF BOILER
Remeha-Broag part no. S52956

3   BURNER HOLDER 20 SECTION NOW P/N S58677
Remeha-Broag part no. S52957

3   BURNER HOLDER ASSY GAS 2000-16 (FOR BOILER FEB 93 TO AUG 95 ONLY)
Remeha-Commercial part no. S58676
£1,995.43
3   BURNER HOLDER ASSY GAS 2000-20 (FOR BOILER MANUFACTURED UP TO AUG 1995)
Remeha-Commercial part no. S58677
£1,942.62
4 Part number S53994, Valve multi block kroms. 1-¥" VALVE MULTI BLOCK KROMS. 1-¥"
Remeha-Commercial part no. S53994
£1,698.69
5   GASKET 38X27X02MM(GAS VALVE UNION) - (PACK OF 10)
Remeha-Commercial part no. S17509
£20.58
6   INJECTOR MAIN D=4.90 -¥" 12 SECTION
Remeha-Commercial part no. 42901
£98.07
6   INJECTOR MAIN D=5.60 -¥" 16 SECTION
Remeha-Commercial part no. 42902
£141.09
6   INJECTOR MAIN D=7.20 -¥" 20 SECTION
Remeha-Commercial part no. 42903
£110.70
7 Part number 46947, (NOW USE S100303) Gasket 155x104x3mm (NOW USE S100303) GASKET 155X104X3MM
Remeha-Broag part no. 46947

7 Part number S100303, Gasket Set GASKET SET
Remeha-Commercial part no. S100303
£20.58
8 Part number S45053, Non return valve nw 100 NON RETURN VALVE NW 100
Remeha-Commercial part no. S45053
£44.14
9 Part number 46946, (NOW USE S100302) Gasket 155x112x4mm (NOW USE S100302) GASKET 155X112X4MM
Remeha-Broag part no. 46946

9 Part number S100302, Gasket Set GASKET SET
Remeha-Commercial part no. S100302
£20.58
10 Part number S30153, Cap brown ionisation CAP BROWN IONISATION
Remeha-Commercial part no. S30153
£24.13
11 Part number S52735, Electrode Ionisation ELECTRODE IONISATION
Remeha-Commercial part no. S52735

12 Part number 4396, Cap black M4 threaded pin CAP BLACK M4 THREADED PIN
Remeha-Commercial part no. 4396
£13.08
12 Part number S50525, Ignition Cable c/w spark plug (for Gas 450/2000/3002/6002) L=1000mm IGNITION CABLE C/W SPARK PLUG (FOR GAS 450/2000/3002/6002) L=1000MM
Remeha-Commercial part no. S50525
£66.64
14 Part number 23607, (USE S100291) Seal neoprene strip 20x06mm (sold per mtr) (USE S100291) SEAL NEOPRENE STRIP 20X06MM (SOLD PER MTR)
Remeha-Broag part no. 23607

14 Part number s100291, Neoprene gasket strip 20x6 mm (10m) NEOPRENE GASKET STRIP 20X6 MM (10M)
Remeha-Commercial part no. s100291
£38.33
15   BURNER PREMIX ASSEMBLY 12 SECTION
Remeha-Commercial part no. S44753
£2,016.81
15 Part number S44754, Burner premix assembly 16 section BURNER PREMIX ASSEMBLY 16 SECTION
Remeha-Commercial part no. S44754
£2,387.73
15 Part number S44755, Burner premix assembly 20 section BURNER PREMIX ASSEMBLY 20 SECTION
Remeha-Commercial part no. S44755
£3,375.19
16 Part number 44530, Gasket tape tapa 12mm (REPLACED BY S100299) GASKET TAPE TAPA 12MM (REPLACED BY S100299)
Remeha-Broag part no. 44530

16 Part number S100299, Silicone Gasket Strip 15x5mm (10M) SILICONE GASKET STRIP 15X5MM (10M)
Remeha-Commercial part no. S100299
£342.06
17   GASKET 57X42X1.5MM (FLOW/RETURN UNION)
Remeha-Commercial part no. 7239
£6.28
18 Part number 57341, (DISCONTINUED) (USE S100300) Seal tapa cord 12/15 mm (sold per mtr) (DISCONTINUED) (USE S100300) SEAL TAPA CORD 12/15 MM (SOLD PER MTR)
Remeha-Broag part no. 57341

18 Part number S100300, Tapa cord 15mm (5m) TAPA CORD 15MM (5M)
Remeha-Commercial part no. S100300
£94.10
19   MANIFOLD ECO TO BLOCK (NO FLEXIBLE)
Remeha-Commercial part no. 52126
£201.18
20   DRAIN COCK
Remeha-Commercial part no. 1389
£61.75
20   DRAIN OFF COCK HANDLE
Remeha-Broag part no. 8993
£4.24
21   BOILER BLOCK 12 SECTIONS M ECO
Remeha-Commercial part no. 53074
£2,367.61
21   BOILER BLOCK 16 SECTIONS M ECO
Remeha-Commercial part no. 53075
£3,118.25
21   BOILER BLOCK 20 SECTIONS M ECO
Remeha-Commercial part no. 53076
£3,726.82
21   BOILER BLOCK 12 SECTIONS H/L AFTER 06/
Remeha-Commercial part no. 53077
£2,270.79
21   BOILER BLOCK 16 SECTIONS H/L AFTER 06/
Remeha-Commercial part no. 53078
£2,914.56
21   BOILER BLOCK 20 SECTIONS H/L AFTER 06/
Remeha-Commercial part no. 53079
£3,572.16
22 Part number S44698, Temperature Sensor (flow And return) Elmwood NTC 12K/007 TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007
Remeha-Commercial part no. S44698
£38.33
23 Part number S49297, Flue gas temp. sensor NTC 12kohm 3% (blue dot-Eco boiler) FLUE GAS TEMP. SENSOR NTC 12KOHM 3% (BLUE DOT-ECO BOILER)
Remeha-Commercial part no. S49297
£31.23
23 Part number S51272, Flue gas temp. sensor ntc 100kohm 5% (red dot - Std Boiler) FLUE GAS TEMP. SENSOR NTC 100KOHM 5% (RED DOT - STD BOILER)
Remeha-Commercial part no. S51272
£55.93
24   GASKET 44X33X2MM
Remeha-Commercial part no. 46046
£2.88
25 Part number S45967, Air press differential switch - G2000/3000 AIR PRESS DIFFERENTIAL SWITCH - G2000/3000
Remeha-Commercial part no. S45967
£234.20
26 Part number S45724, Pressure sensor type huba 69799008 (Gas 2000/3000) PRESSURE SENSOR TYPE HUBA 69799008 (GAS 2000/3000)
Remeha-Commercial part no. S45724
£251.47
27 Part number S48376, PCB ignition/output PCB IGNITION/OUTPUT
Remeha-Commercial part no. S48376
£1,017.66
29 Part number S48377, PCB circuit board input PCB CIRCUIT BOARD INPUT
Remeha-Commercial part no. S48377

30 Part number S55043, PCB display print pactr. V3.1 PCB DISPLAY PRINT PACTR. V3.1
Remeha-Commercial part no. S55043

31 Part number S50422, Filter mains power nfb110rs FILTER MAINS POWER NFB110RS
Remeha-Commercial part no. S50422
£51.51
32 Part number S48255, Transformer Ignition satronic zt 870 TRANSFORMER IGNITION SATRONIC ZT 870
Remeha-Commercial part no. S48255
£156.13
33 Part number S51693, Fan controller ebm IMI (55920-1-0173 230v 125w 4100u/min FAN CONTROLLER EBM IMI (55920-1-0173 230V 125W 4100U/MIN
Remeha-Commercial part no. S51693
£1,000.64
34 Part number S37628, NEW PART NUMBER S62728 Vent auto air bleed device 3/8" for W40/60, Quinta, Gas6, Gas2000/3000, Selecta NEW PART NUMBER S62728 VENT AUTO AIR BLEED DEVICE 3/8" FOR W40/60, QUINTA, GAS6, GAS2000/3000, SELECTA
Remeha-Broag part no. S37628

34 Part number S62728, Auto Air Vent bleed device 3/8" AUTO AIR VENT BLEED DEVICE 3/8"
Remeha-Commercial part no. S62728
£44.14
35 Part number 47858, (Use S51417) -Seal for eco unit gas 2000 (1 Metre) - see S51417 (USE S51417) -SEAL FOR ECO UNIT GAS 2000 (1 METRE) - SEE S51417
Remeha-Broag part no. 47858

35 Part number S51417, Gasket Strip Front Plate ECO (5metre pre cut lengths) GASKET STRIP FRONT PLATE ECO (5METRE PRE CUT LENGTHS)
Remeha-Commercial part no. S51417
£194.45
36   SYPHON ELBOW 90 DEGR. 32X1,9
Remeha-Commercial part no. 30537
£4.20
36 Part number S24494, Syphon assembly SYPHON ASSEMBLY
Remeha-Commercial part no. S24494
£55.93
