REMEHA-COMMERCIAL

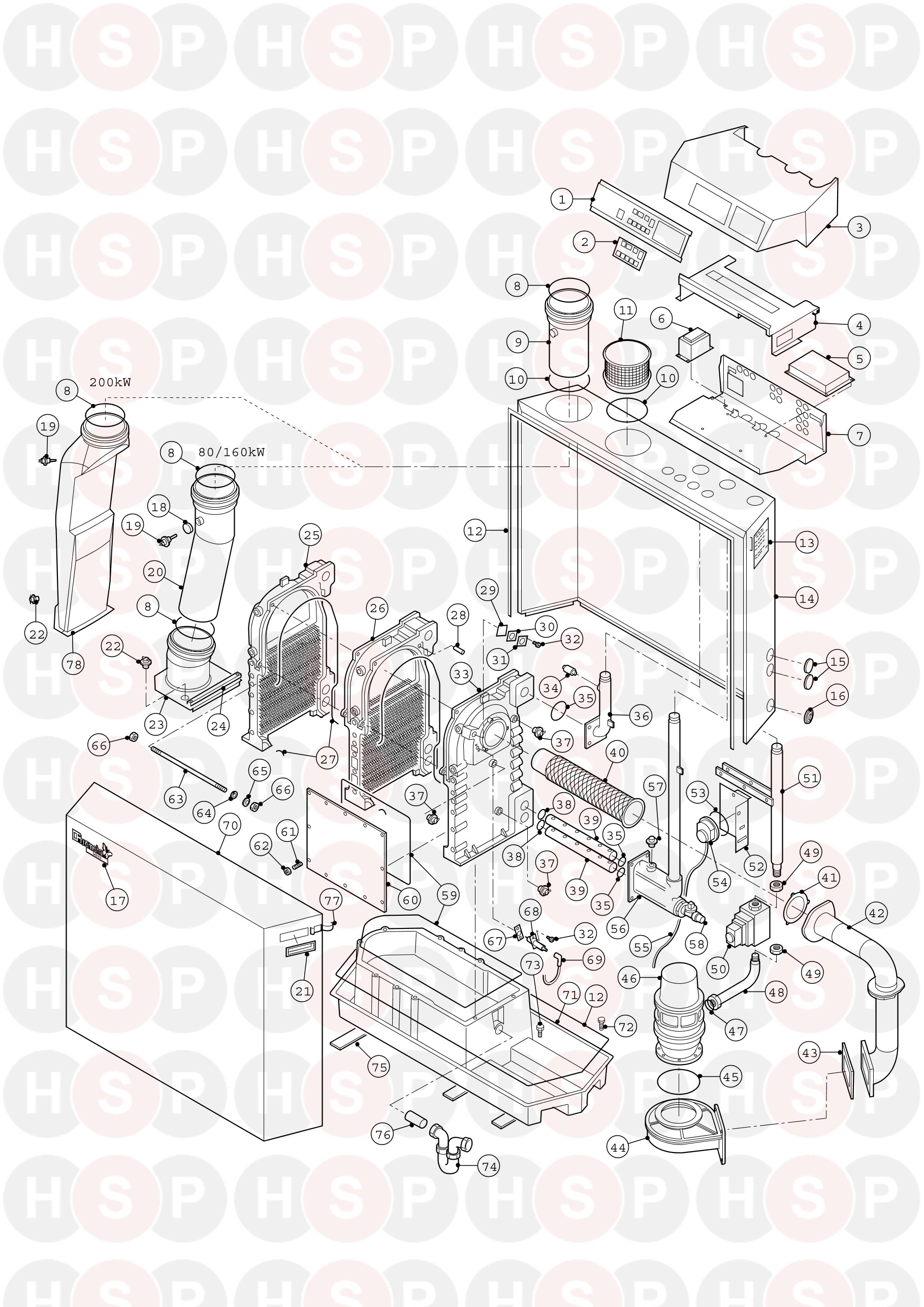

GAS 210 ECO PRO 80-120-160-200KW - (Exploded View)
Appliance Code: GAS 80-120-160-200

Appliance Diagram


Exploded View diagram for Remeha-Commercial Gas 210 Eco Pro 80-120-160-200kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  HEAT EXCHANGER GAS 210 PRO - 80KW (3 SECTION)
Remeha-Commercial part no. S100633		 £3 132,49
  HEAT EXCHANGER GAS 210 PRO - 120KW (4 SECTION)
Remeha-Commercial part no. S100634		 £4 719,30
  HEAT EXCHANGER GAS 210 PRO - 160KW (5 SECTION)
Remeha-Commercial part no. S100635		 £9 865,83
  HEAT EXCHANGER GAS 210 PRO - 200KW (6 SECTION)
Remeha-Commercial part no. S100636		 £11 527,89
Part number S100637, Service Kit Gas 210 PRO (only) SERVICE KIT GAS 210 PRO (ONLY)
Remeha-Commercial part no. S100637		 £120,64
Part number S55152, TRANSFORMER 24v control supply TRANSFORMER 24V CONTROL SUPPLY
Remeha-Commercial part no. S55152		 £289,54
Part number S55166, Interface Tem 4sw2.5 for Rematic-Gas 210/310/610 INTERFACE TEM 4SW2.5 FOR REMATIC-GAS 210/310/610
Remeha-Commercial part no. S55166
  PCB FAILURE PRINT AM3-2
Remeha-Commercial part no. S55190		 £342,06
Part number S55561, Service Kit for Gas 210 ECO Mk I & Mk II Boiler SERVICE KIT FOR GAS 210 ECO MK I & MK II BOILER
Remeha-Commercial part no. S55561		 £80,90
1   OBSOLETE CASING FRONT INSTRUMENT PANEL
Remeha-Broag part no. 53958
2 Part number S54802, PCB display print PCB DISPLAY PRINT
Remeha-Commercial part no. S54802		 £123,48
3   INSTRUMENT PANEL COVER MK1 G210
Remeha-Commercial part no. 53578		 £154,71
4   INSTRUMENT PANEL SUPPORT
Remeha-Broag part no. 56113		 £37,62
5 Part number S56194, Do not use see S59444 - Control box mcba 1463d 1.2 - DO NOT USE SEE S59444 - CONTROL BOX MCBA 1463D 1.2 -
Remeha-Broag part no. S56194
5 Part number S59444, Control box MCBA 1463D V 3.0//V 3.1 (Mk I ONLY) CONTROL BOX MCBA 1463D V 3.0//V 3.1 (MK I ONLY)
Remeha-Commercial part no. S59444
5 Part number S59444, Control box MCBA 1463D V 3.0//V 3.1 (Mk I ONLY) CONTROL BOX MCBA 1463D V 3.0//V 3.1 (MK I ONLY)
Remeha-Commercial part no. S59444
5 Part number S62274, Control box MCBA 1463D V3.1 (Mk II ONLY) CONTROL BOX MCBA 1463D V3.1 (MK II ONLY)
Remeha-Commercial part no. S62274
6   FLOW LIMIT/RESTRICTOR DEVICE 10 LITRE/MIN (YELLOW)
Remeha-Commercial part no. S57502		 £26,40
7   INSTRUMENT PANEL MOUNTING PLATE
Remeha-Commercial part no. 53868		 £70,41
8 Part number 49209, (USE S100304) Gasket Ring For Flue Gas Discharge Pipe Gas 2000 (USE S100304) GASKET RING FOR FLUE GAS DISCHARGE PIPE GAS 2000
Remeha-Broag part no. 49209
8 Part number s100304, SEALING RING 0 150 MM (5 pcs) SEALING RING 0 150 MM (5 PCS)
Remeha-Commercial part no. s100304		 £48,55
9 Part number 53561, Flue Gas Pipe External (210-5 Mk1 & 2) (L=280mm) inc. Test Point 150mm 210 FLUE GAS PIPE EXTERNAL (210-5 MK1 & 2) (L=280MM) INC. TEST POINT 150MM 210
Remeha-Commercial part no. 53561		 £80,90
9 Part number 57306, Flue gas pipe external 150mm (210 - 6 Mk 1&2 ONLY)(L=150mm) inc. test point for 210-6 Mk I & II FLUE GAS PIPE EXTERNAL 150MM (210 - 6 MK 1&2 ONLY)(L=150MM) INC. TEST POINT FOR 210-6 MK I & II
Remeha-Commercial part no. 57306		 £69,55
9 Part number S59680, Flue gas pipe internal/external for 210-3 Mk II FLUE GAS PIPE INTERNAL/EXTERNAL FOR 210-3 MK II
Remeha-Commercial part no. S59680
10   (USE S100553) SEALING RING CASING/FLUE/AIR CONNECTION
Remeha-Broag part no. 53562
10   SEALING RING CASING/FLUE/AIR CONNECTION (210)
Remeha-Commercial part no. S100553		 £22,71
12 Part number 49826, Seal for casing parts (Per meter) SEAL FOR CASING PARTS (PER METER)
Remeha-Commercial part no. 49826		 £3,81
13   IDENTIFICATION PLATE
Remeha-Commercial part no. 34803		 £53,44
14   CASING BACK GAS 210 MK1 (RED)
Remeha-Commercial part no. 55145		 £447,62
15   GROMMET 60MM
Remeha-Commercial part no. 44091		 £7,95
16   GROMMET FEED THROUGH 60MM
Remeha-Commercial part no. 55125		 £3,23
17   BADGE "REMEHA"
Remeha-Commercial part no. 51231		 £16,97
17   CASING FRONT
Remeha-Commercial part no. S55144		 £662,84
18 Part number 49298, Grommet flue gas temperature sensor GROMMET FLUE GAS TEMPERATURE SENSOR
Remeha-Commercial part no. 49298		 £1,35
19 Part number S49297, Flue gas temp. sensor NTC 12kohm 3% (blue dot-Eco boiler) FLUE GAS TEMP. SENSOR NTC 12KOHM 3% (BLUE DOT-ECO BOILER)
Remeha-Commercial part no. S49297		 £31,23
20 Part number 54025, Flue gas pipe internal 150 for 210-5 Mk I FLUE GAS PIPE INTERNAL 150 FOR 210-5 MK I
Remeha-Commercial part no. 54025
20 Part number 55133, Flue gas pipe internal/external 80/150 210-3 Mk I FLUE GAS PIPE INTERNAL/EXTERNAL 80/150 210-3 MK I
Remeha-Commercial part no. 55133
20 Part number 55134, Flue gas pipe internal/external 100/150 for 210-4 Mk I FLUE GAS PIPE INTERNAL/EXTERNAL 100/150 FOR 210-4 MK I
Remeha-Commercial part no. 55134
21 Part number 41755, (NOW USE S100419) Casing front handle (NOW USE S100419) CASING FRONT HANDLE
Remeha-Broag part no. 41755
21 Part number S100419, Casing Front Handle CASING FRONT HANDLE
Remeha-Commercial part no. S100419		 £26,96
22 Part number S62122, Plug Inspection 60mm PLUG INSPECTION 60MM
Remeha-Commercial part no. S62122		 £38,33
23 Part number 52899, DISCONTINUED (USE S101206) Condensate collector cover plate 3 section DISCONTINUED (USE S101206) CONDENSATE COLLECTOR COVER PLATE 3 SECTION
Remeha-Broag part no. 52899
23 Part number 52900, Condensate collector cover plate 4 section CONDENSATE COLLECTOR COVER PLATE 4 SECTION
Remeha-Commercial part no. 52900		 £172,26
23   CONDENSATE COLLECTOR COVER PLATE 5 SECTION
Remeha-Commercial part no. 52901		 £185,94
23 Part number S101206, Flue gas rennovation set 80kw (PVC Collector Cover & Exhaust Pipe) FLUE GAS RENNOVATION SET 80KW (PVC COLLECTOR COVER & EXHAUST PIPE)
Remeha-Commercial part no. S101206		 £563,49
24   CONDENSATE COLLECTOR COVER PLATE MOUNTING PROFILE
Remeha-Commercial part no. 53822		 £28,39
25   SECTION END LEFT
Remeha-Commercial part no. S52481		 £1 836,63
26   SECTION INTERMEDIATE GAS 210
Remeha-Commercial part no. S52482		 £1 988,50
27 Part number 25696, (NOW USE S100643) Sealant silicone Red rtv 106 High Temp (tube) (NOW USE S100643) SEALANT SILICONE RED RTV 106 HIGH TEMP (TUBE)
Remeha-Broag part no. 25696
27 Part number S100643, Silicone Sealant Rtv106 SILICONE SEALANT RTV106
Remeha-Commercial part no. S100643		 £78,08
28   DOWEL D7
Remeha-Commercial part no. 53532		 £0,45
29 Part number 35458, (NOW USE S35458) Gasket for inspection glass (NOW USE S35458) GASKET FOR INSPECTION GLASS
Remeha-Broag part no. 35458
29 Part number S35458, Gasket for inspection glass (5 pcs) GASKET FOR INSPECTION GLASS (5 PCS)
Remeha-Commercial part no. S35458		 £11,70
30 Part number S45004, Glass inspection c/w gasket 32x32x3mm and screws GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS
Remeha-Commercial part no. S45004		 £48,55
31 Part number 54822, (USE S54822) Mounting frame (for inspection glass) (USE S54822) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Broag part no. 54822
31 Part number S54822, Mounting Frame (For Inspection Glass) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Commercial part no. S54822		 £13,39
32   SCREW M4 X 8 STAINLESS STEEL
Remeha-Commercial part no. 25265		 £0,30
33   SECTION END RIGHT (GAS 210 MK1 ONLY)
Remeha-Commercial part no. S52480		 £2 790,08
35 Part number 53533, (USE S100544) Seal O-ring 50. 17x5.33 (1 req (USE S100544) SEAL O-RING 50. 17X5.33 (1 REQ
Remeha-Broag part no. 53533
35 Part number S100544, 50, 17 x 5.33 mm O RING (PK10) 50, 17 X 5.33 MM O RING (PK10)
Remeha-Commercial part no. S100544		 £16,19
37 Part number S44698, Temperature Sensor (flow And return) Elmwood NTC 12K/007 TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007
Remeha-Commercial part no. S44698		 £38,33
38 Part number 53548, NOW USE S100550 Seal O-ring 37.69x3.53 (2 required per section) NOW USE S100550 SEAL O-RING 37.69X3.53 (2 REQUIRED PER SECTION)
Remeha-Broag part no. 53548
38 Part number S100550, O-ring 37.69 x 3.53 mm 10 pieces O-RING 37.69 X 3.53 MM 10 PIECES
Remeha-Commercial part no. S100550		 £16,19
39   NOW USE S100557 WATER DISTRIBUTION PIPE
Remeha-Broag part no. 55888
39   RETURN WATER DISTRIBUTION PIPE 4 SECTION
Remeha-Commercial part no. 55889		 £61,61
39   RETURN WATER DISTRIBUTION PIPE 3 SECT- 80KW
Remeha-Commercial part no. S100557		 £76,64
40 Part number S53553, Burner for 3 section 80KW BURNER FOR 3 SECTION 80KW
Remeha-Commercial part no. S53553		 £645,80
40 Part number S53554, Burner for 4 section 120KW BURNER FOR 4 SECTION 120KW
Remeha-Commercial part no. S53554		 £861,54
40 Part number S53555, Burner for 5 section (G210) 160KW BURNER FOR 5 SECTION (G210) 160KW
Remeha-Commercial part no. S53555		 £1 064,50
40 Part number S57988, Burner for 6 Section Gas 210 BURNER FOR 6 SECTION GAS 210
Remeha-Commercial part no. S57988		 £1 193,66
41 Part number 53552, (USE S100551) Gasket for burner (USE S100551) GASKET FOR BURNER
Remeha-Broag part no. 53552
41 Part number S100551, Burner Gasket (Gas 210) BURNER GASKET (GAS 210)
Remeha-Commercial part no. S100551		 £22,71
42   (USE 58331) MIXING PIECE ABOVE 120/160 KW
Remeha-Broag part no. 55124
42   MIXING PIECE ABOVE 120/160KW
Remeha-Broag part no. 58331		 £58,76
42   MIXING PIECE/ANGLE
Remeha-Commercial part no. 55120		 £272,51
42   MIXING PIECE ABOVE 80 KW
Remeha-Commercial part no. 55122		 £270,33
42   SEAL O-RING 72.63X3.53
Remeha-Commercial part no. 55128		 £2,88
43 Part number 51518, (NOW USE S59650) Gasket fan/mixing piece bend (NOW USE S59650) GASKET FAN/MIXING PIECE BEND
Remeha-Broag part no. 51518
43 Part number S59650, Gasket fan Gas 210 and Gas 310-5-6 section GASKET FAN GAS 210 AND GAS 310-5-6 SECTION
Remeha-Commercial part no. S59650		 £11,70
44 Part number S53556, Fan ebm g1g170 (Gas 210 Mk1&2) FAN EBM G1G170 (GAS 210 MK1&2)
Remeha-Commercial part no. S53556		 £1 500,25
45 Part number 51809, Seal O-ring 110x3.5mm( new p/n S100305) SEAL O-RING 110X3.5MM( NEW P/N S100305)
Remeha-Broag part no. 51809
45 Part number S100305, O-Ring 110x3.5mm (Pack of 5) O-RING 110X3.5MM (PACK OF 5)
Remeha-Commercial part no. S100305		 £22,71
46 Part number S53566, IMS Unit 80 kw IMS UNIT 80 KW
Remeha-Commercial part no. S53566		 £1 670,56
46 Part number S53567, IMS Unit 120,160 and 200kw IMS UNIT 120,160 AND 200KW
Remeha-Commercial part no. S53567
47   GASKET 44X33X2MM
Remeha-Commercial part no. 46046		 £2,88
48   (DISCONTINUED) GAS SUPPLY PIPE 1"
Remeha-Broag part no. 56035		 £17,37
48   GAS SUPPLY PIPE 3/4"
Remeha-Broag part no. 56036		 £25,55
49   GAS PIPE NUT NO. 310 3/4" G210 ECO
Remeha-Commercial part no. 55168		 £7,11
50 Part number S58087, Valve Multiblock Gas 210ECO - NOW USE S62930 VALVE MULTIBLOCK GAS 210ECO - NOW USE S62930
Remeha-Broag part no. S58087
50 Part number S53571, Valve multi block G210-3 (80kW) Eco Mk1 & Mk2 VALVE MULTI BLOCK G210-3 (80KW) ECO MK1 & MK2
Remeha-Commercial part no. S53571		 £417,29
50 Part number S62930, Valve Multiblock Gas 210ECO 4/5 & 6 section - CG20-R03-GH5CF1Z VALVE MULTIBLOCK GAS 210ECO 4/5 & 6 SECTION - CG20-R03-GH5CF1Z
Remeha-Commercial part no. S62930		 £1 351,21
51   GAS SUPPLY PIPE 5-¥"X-¥"
Remeha-Commercial part no. 54022		 £113,55
52   MOUNTING PLATE FOR PRESSURE DIFFERENTIAL SWITCH
Remeha-Commercial part no. 55698		 £26,96
53 Part number 593, (USE S100532) Plug no. 290 3/8" (USE S100532) PLUG NO. 290 3/8"
Remeha-Broag part no. 593
53   MOUNTING RING
Remeha-Commercial part no. 53931		 £1,70
53 Part number S100532, Plug 3/8" PLUG 3/8"
Remeha-Commercial part no. S100532		 £13,89
55 Part number 46685, (NOW USE S101358) Tube plastic blue 5.5mm i/d 8mm o/d (NOW USE S101358) TUBE PLASTIC BLUE 5.5MM I/D 8MM O/D
Remeha-Broag part no. 46685
55 Part number S101358, Tubing for Air Pressure Switch to IMS Gas 210 TUBING FOR AIR PRESSURE SWITCH TO IMS GAS 210
Remeha-Commercial part no. S101358		 £17,74
58 Part number 55703, Drain cock -¢" DRAIN COCK -¢"
Remeha-Broag part no. 55703		 £12,54
59 Part number 30629, (USE S101368) Seal silicone red 7mm D:(per m) (2m req (USE S101368) SEAL SILICONE RED 7MM D:(PER M) (2M REQ
Remeha-Broag part no. 30629
59 Part number S101368, 7mm Red Silicone Rubber Cord (Round) - 5m 7MM RED SILICONE RUBBER CORD (ROUND) - 5M
Remeha-Commercial part no. S101368		 £38,33
60   HEAT EXCHANGER FRONT PLATE 3 SECTION - SEE S100545
Remeha-Broag part no. 53541
60   (USE S100546) HEAT EXCHANGER FRONT PLATE 4 SECTION
Remeha-Broag part no. 53542		 £38,01
60 Part number 53543, Heat exchanger front plate 5 section HEAT EXCHANGER FRONT PLATE 5 SECTION
Remeha-Broag part no. 53543		 £52,08
60   HEAT EXCHANGER ACCESS PLATE - 80KW (210 PRO)
Remeha-Commercial part no. S100545		 £94,10
60   HEAT EXCHANGER FRONT PLATE GAS 210 PRO - 120KW - 4 SECTION
Remeha-Commercial part no. S100546		 £171,75
61 Part number 53544, NOW USE S100549 Stud M8 x 20mm NOW USE S100549 STUD M8 X 20MM
Remeha-Broag part no. 53544
61 Part number S100549, Studs M8X20mm (25 pcs) STUDS M8X20MM (25 PCS)
Remeha-Commercial part no. S100549		 £28,39
62   NUT M8
Remeha-Commercial part no. 55558		 £1,50
63   TIE ROD M8X452
Remeha-Commercial part no. 15558		 £3,76
63   WASHER FLAT M8.4MM
Remeha-Commercial part no. 24146		 £0,27
63   TIE ROD M8X206
Remeha-Commercial part no. 42682		 £2,55
63   TIE ROD M8X168
Remeha-Commercial part no. 53534		 £1,35
63   TIE ROD M8X368
Remeha-Commercial part no. 53535		 £5,86
63   TIE ROD M8X468
Remeha-Commercial part no. 53540		 £5,86
65   SPRING ROUND 20 X 8.2X1.0MM
Remeha-Commercial part no. 41669		 £0,45
66 Part number 44483, Nut M8 NOW USE S44483 NUT M8 NOW USE S44483
Remeha-Broag part no. 44483
66 Part number S44483, Nut M 8 (10 pcs.) NUT M 8 (10 PCS.)
Remeha-Commercial part no. S44483		 £17,49
67 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489		 £28,39
68 Part number S53564, Gas 210 (MkI & II) Electrode Ignition/Ionisation L=72 (only one for Gas 210) GAS 210 (MKI & II) ELECTRODE IGNITION/IONISATION L=72 (ONLY ONE FOR GAS 210)
Remeha-Commercial part no. S53564		 £22,71
69 Part number S56002, Cable ignition c/w cap CABLE IGNITION C/W CAP
Remeha-Commercial part no. S56002
71   USE S100542 CONDENSE TRAY FRAME BOTTOM (POLYESTER)
Remeha-Broag part no. 53490
71   BOTTOM FRAME (POLYESTER) GAS 210
Remeha-Commercial part no. S100542		 £770,70
72 Part number 15524, (USE S15524) Bolt M8 x 16mm (USE S15524) BOLT M8 X 16MM
Remeha-Broag part no. 15524
72 Part number S15524, Bolt M 8 X 16 (10 Pcs.) BOLT M 8 X 16 (10 PCS.)
Remeha-Commercial part no. S15524		 £19,16
73   BOLT M8X30
Remeha-Commercial part no. 51174		 £0,89
74 Part number 53559, Syphon unit complete "p" r032 SYPHON UNIT COMPLETE "P" R032
Remeha-Commercial part no. 53559		 £28,92
75   MOUNTING BRACKET
Remeha-Commercial part no. 55136		 £4,24
76   PIPE DRAIN TO SYPHON PVC 32MM LENGTH 120MM
Remeha-Commercial part no. 27108		 £9,82
77   MOUNTING STIRRUP
Remeha-Commercial part no. 55683		 £7,52
78   FLUE GAS PIPE INTERNAL 150MM 210-6 MK I & II
Remeha-Commercial part no. 57048		 £867,21


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
