REMEHA-COMMERCIAL
QUINTA PRO 45 - (Exploded View)
Appliance Code: 41-288-16

Appliance Diagram


Exploded View diagram for Remeha-Commercial Quinta Pro 45Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1002 Part number S101574, Cover Drop Down Door for Quinta Pro COVER DROP DOWN DOOR FOR QUINTA PRO
Remeha-Commercial part no. S101574		 £98.51
1002 Part number S101575, Quinta Pro Casing Front Panel QUINTA PRO CASING FRONT PANEL
Remeha-Commercial part no. S101575		 £178.84
1003 Part number S101517, Wall Bracket WALL BRACKET
Remeha-Commercial part no. S101517		 £17.74
1005 Part number S101403, Stud Quarter Retain STUD QUARTER RETAIN
Remeha-Commercial part no. S101403		 £22.33
2001 Part number S101560, Heat Exchanger Quinta 45kW / QP30 & 45kW HEAT EXCHANGER QUINTA 45KW / QP30 & 45KW
Remeha-Commercial part no. S101560		 £2,168.75
2002 Part number S101564, Quinta Pro Heat Exchanger Front Plate QUINTA PRO HEAT EXCHANGER FRONT PLATE
Remeha-Commercial part no. S101564		 £256.90
2003 Part number S54753, Burner (Q45) furigas BURNER (Q45) FURIGAS
Remeha-Commercial part no. S54753		 £519.48
2004 Part number S101566, Quinta PRO Electrode Ignition/Ionisation c/w lead QUINTA PRO ELECTRODE IGNITION/IONISATION C/W LEAD
Remeha-Commercial part no. S101566		 £38.33
2005 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489		 £28.39
2006 Part number S59118, GLASS INSPECTION SET GLASS INSPECTION SET
Remeha-Commercial part no. S59118		 £44.14
2007 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731		 £76.64
2008 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241		 £20.58
2009 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £25.55
2010 Part number s100052, Screw Burner (20 pcs) SCREW BURNER (20 PCS)
Remeha-Broag part no. s100052		 £11.58
2011 Part number S101619, Transformer Ignition Incl. Electrode Ignition/Ionisation TRANSFORMER IGNITION INCL. ELECTRODE IGNITION/IONISATION
Remeha-Commercial part no. S101619		 £54.35
2012 Part number S101509, Screw 7985 M4X8 (5 Pcs) SCREW 7985 M4X8 (5 PCS)
Remeha-Commercial part no. S101509		 £13.39
2014 Part number S101003, Temperature Sensor NTC (2 Pcs) Quinta PRO 310/610 Pro TEMPERATURE SENSOR NTC (2 PCS) QUINTA PRO 310/610 PRO
Remeha-Commercial part no. S101003		 £68.14
2015 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950		 £17.74
2016 Part number 7631937, Flue Gas Discharge Pipe (c/w Seals) FLUE GAS DISCHARGE PIPE (C/W SEALS)
Remeha-Commercial part no. 7631937		 £136.68
2016 Part number S55993, (Use 7631937) - Flue gas pipe Q45 din 80 (USE 7631937) - FLUE GAS PIPE Q45 DIN 80
Remeha-Broag part no. S55993
2017 Part number S55914, NOW USE S100855 Sealing Ring dia 80 (5pcs) NOW USE S100855 SEALING RING DIA 80 (5PCS)
Remeha-Broag part no. S55914
2017 Part number S100855, Sealing Ring (1) SEALING RING (1)
Remeha-Commercial part no. S100855		 £29.81
2019 Part number S100465, Flue Gas Discharge Adapter 80/125 FLUE GAS DISCHARGE ADAPTER 80/125
Remeha-Commercial part no. S100465		 £20.17
2020 Part number S62233, CAP CAP
Remeha-Commercial part no. S62233		 £28.98
2021 Part number S62232, Screw cap flue gas measure point (5 pcs) Quinta PRO SCREW CAP FLUE GAS MEASURE POINT (5 PCS) QUINTA PRO
Remeha-Commercial part no. S62232		 £36.90
2022 Part number S100855, Sealing Ring (1) SEALING RING (1)
Remeha-Commercial part no. S100855		 £29.81
2023 Part number S101567, Flue Connection 80mm FLUE CONNECTION 80MM
Remeha-Commercial part no. S101567		 £39.74
2024 Part number S100901, Fixing Strip Heat Exchanger FIXING STRIP HEAT EXCHANGER
Remeha-Commercial part no. S100901		 £42.71
2025 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288		 £7.11
2026 Part number S101568, Flow Pipe Central Heating (Quinta Pro) FLOW PIPE CENTRAL HEATING (QUINTA PRO)
Remeha-Commercial part no. S101568		 £246.96
2027 Part number S101632, Water Pressure Sensor (Quinta Pro) WATER PRESSURE SENSOR (QUINTA PRO)
Remeha-Commercial part no. S101632		 £42.71
2028 Part number S101608, Vent Auto Air Bleed Device (QP) VENT AUTO AIR BLEED DEVICE (QP)
Remeha-Commercial part no. S101608		 £20.58
2029 Part number S100737, Sealing Ring 44x32x4mm (5pcs) SEALING RING 44X32X4MM (5PCS)
Remeha-Commercial part no. S100737		 £19.16
2030   WIRE CLAMP 28-35 (5 PCS)
Remeha-Commercial part no. S101576		 £12.86
2031 Part number S101644, Clip 10.2 (5 Pcs) CLIP 10.2 (5 PCS)
Remeha-Commercial part no. S101644		 £13.39

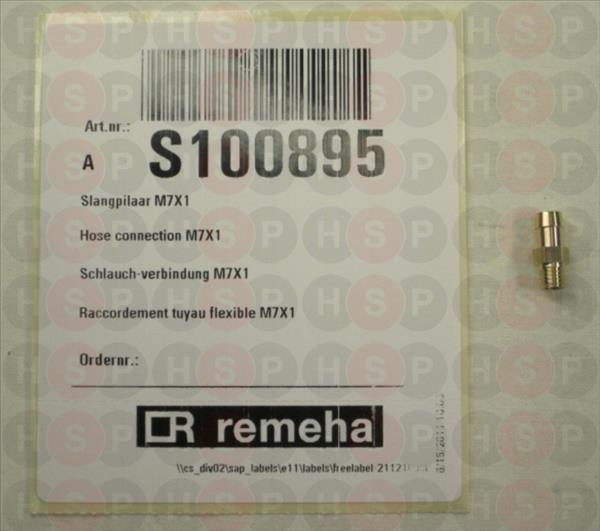

2032 Part number S100895, Hose connection M7X1 HOSE CONNECTION M7X1
Remeha-Commercial part no. S100895		 £1.48
2033 Part number S101570, Hose silicone 8x2x740 mm HOSE SILICONE 8X2X740 MM
Remeha-Commercial part no. S101570		 £26.96
2037 Part number S101558, Siphon Body QP (Includes Upper Seal & Screws, NO CUP) SIPHON BODY QP (INCLUDES UPPER SEAL & SCREWS, NO CUP)
Remeha-Commercial part no. S101558		 £17.74
2038 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254		 £11.05
2039 Part number S101580, Sealing Ring 60mm SEALING RING 60MM
Remeha-Commercial part no. S101580		 £14.76
2040 Part number S101559, Siphon Cup SIPHON CUP
Remeha-Commercial part no. S101559		 £31.23
2041 Part number S101606, Syphon Hose (Quinta Pro) SYPHON HOSE (QUINTA PRO)
Remeha-Commercial part no. S101606		 £22.71
2042 Part number S101581, Sealing Ring Syphon SEALING RING SYPHON
Remeha-Commercial part no. S101581		 £29.81
2044   CAP BLIND SCU
Remeha-Commercial part no. S101298		 £26.96
2045 Part number S62727, GROMMET 20mm GROMMET 20MM
Remeha-Commercial part no. S62727		 £41.50
2046   GROMMET (5 PCS)
Remeha-Commercial part no. S101607		 £19.16
2047   SEALANT RETURN CENTRAL HEATING
Remeha-Commercial part no. S101605		 £31.23
3001 Part number S59167, NOW USE S101725 Fan for Q45-65 / QP30-45 NOW USE S101725 FAN FOR Q45-65 / QP30-45
Remeha-Broag part no. S59167
3001 Part number S101725, Fan for Q45 and QP30/45 FAN FOR Q45 AND QP30/45
Remeha-Commercial part no. S101725		 £407.45
3002 Part number S54765, Venturi Q45 VENTURI Q45
Remeha-Commercial part no. S54765		 £79.49
3003   AIR INLET DAMPER
Remeha-Commercial part no. S101543		 £19.16
3004   CLAMP AIR INLET SILENCER
Remeha-Commercial part no. S101590		 £8.98
3005   GAS SUPPLY PIPE
Remeha-Commercial part no. S101569		 £75.23
3006 Part number S101596, Gas block Vk8115V1386 30, 45 & 65 kW 230 Volt (Quinta Pro) GAS BLOCK VK8115V1386 30, 45 & 65 KW 230 VOLT (QUINTA PRO)
Remeha-Commercial part no. S101596		 £211.49
3007 Part number S101565, Seal 83mm complete with non-return valve - Quinta Pro SEAL 83MM COMPLETE WITH NON-RETURN VALVE - QUINTA PRO
Remeha-Commercial part no. S101565		 £10.50
3008 Part number S54777, Sealing for Venturi - (pack of 5) SEALING FOR VENTURI - (PACK OF 5)
Remeha-Commercial part no. S54777		 £28.39
3009 Part number S48512, Screw M5X10 (10 Pcs) SCREW M5X10 (10 PCS)
Remeha-Commercial part no. S48512		 £19.16
3010 Part number S101591, Gasket set 45-65 kW GASKET SET 45-65 KW
Remeha-Commercial part no. S101591		 £31.23
3011 Part number S56155, Gasket 23.8 x 17.2 (20pc) GASKET 23.8 X 17.2 (20PC)
Remeha-Commercial part no. S56155		 £29.81
3012   WIRE CLAMP (5 PCS)
Remeha-Commercial part no. S101519		 £12.86
3013 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £25.55
3014 Part number S100055, Nut M5 (Pack of 20) NUT M5 (PACK OF 20)
Remeha-Commercial part no. S100055		 £17.74
4001 Part number S101518, PCB PCU-04 c/w SU-01 c/w Sanitary Pump Conn. (Quinta Pro) PCB PCU-04 C/W SU-01 C/W SANITARY PUMP CONN. (QUINTA PRO)
Remeha-Commercial part no. S101518		 £310.84
4002 Part number S103300, Pcb Su-01 PCB SU-01
Remeha-Commercial part no. S103300		 £107.86
4003 Part number S100859, Display Print PCB for Quinta Pro (All) DISPLAY PRINT PCB FOR QUINTA PRO (ALL)
Remeha-Commercial part no. S100859		 £170.31
4004 Part number S43562, Fuses glass 3.15 Amp Slow Pack of 10 FUSES GLASS 3.15 AMP SLOW PACK OF 10
Remeha-Commercial part no. S43562		 £42.71
4004 Part number S6778, Fuse Glass 6.3A Slow (pkt of 10) FUSE GLASS 6.3A SLOW (PKT OF 10)
Remeha-Commercial part no. S6778		 £36.90
4005 Part number S101619, Transformer Ignition Incl. Electrode Ignition/Ionisation TRANSFORMER IGNITION INCL. ELECTRODE IGNITION/IONISATION
Remeha-Commercial part no. S101619		 £54.35
4007 Part number S101003, Temperature Sensor NTC (2 Pcs) Quinta PRO 310/610 Pro TEMPERATURE SENSOR NTC (2 PCS) QUINTA PRO 310/610 PRO
Remeha-Commercial part no. S101003		 £68.14
4008 Part number S101005, Temperature Sensor HI TEMPERATURE SENSOR HI
Remeha-Commercial part no. S101005		 £112.13
4009 Part number S101554, Cable for Pump PCU - Terminal X8 Internal to PCB CABLE FOR PUMP PCU - TERMINAL X8 INTERNAL TO PCB
Remeha-Commercial part no. S101554		 £14.34
4010 Part number S101561, Quinta Pro 24V Loom QUINTA PRO 24V LOOM
Remeha-Commercial part no. S101561		 £44.14
4011 Part number S101589, Cable Set 230V (45-90 kW) CABLE SET 230V (45-90 KW)
Remeha-Commercial part no. S101589		 £31.23
4012   POWER CABLE X1 (L = 1500 MM)
Remeha-Commercial part no. S100845		 £35.49
4013 Part number S101588, Cable for Pump - Terminal X81 External to pump CABLE FOR PUMP - TERMINAL X81 EXTERNAL TO PUMP
Remeha-Commercial part no. S101588		 £16.19
4014 Part number S101553, Cable for Fan CABLE FOR FAN
Remeha-Commercial part no. S101553		 £19.16
4015 Part number S100857, Control Panel with Display Print Board CONTROL PANEL WITH DISPLAY PRINT BOARD
Remeha-Commercial part no. S100857		 £413.03
4017 Part number S101514, Door clamp (2 pieces) DOOR CLAMP (2 PIECES)
Remeha-Commercial part no. S101514		 £20.58
4018   GASKET OVAL (5 PCS)
Remeha-Commercial part no. S100861		 £58.76
4019 Part number 720538101, CABLE CLAMP CABLE CLAMP
Remeha-Broag part no. 720538101		 £15.40
4019 Part number S59372, NOW USE CABLE CLAMP 720538101 NOW USE CABLE CLAMP 720538101
Remeha-Broag part no. S59372
4020 Part number S100764, Print Interface SCU-S02 PRINT INTERFACE SCU-S02
Remeha-Commercial part no. S100764		 £177.41
4021   CABLE POWER FOR SCU
Remeha-Commercial part no. S101555		 £47.13
4022   CABLE INTERFACE
Remeha-Commercial part no. S101556		 £47.13
4023   SCU BOX
Remeha-Commercial part no. S101513		 £51.51
4024 Part number S100862, Tulle Scu (5 Pcs) TULLE SCU (5 PCS)
Remeha-Commercial part no. S100862		 £44.14
4025 Part number S100763, Print Interface 0-10V (If-01) Quinta Pro PRINT INTERFACE 0-10V (IF-01) QUINTA PRO
Remeha-Commercial part no. S100763		 £190.19
