QUINTA 115 - (Exploded View)
Appliance Code: 18.115 KW

Appliance Diagram


Exploded View diagram for Remeha-Commercial Quinta 115Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number S55443, PCB interface 0-10v AM4K PCB INTERFACE 0-10V AM4K
Remeha-Commercial part no. S55443		 £164.65
1001 Part number S54783, Casing front for Quinta ECO (Includes Top & Bottom Trim) CASING FRONT FOR QUINTA ECO (INCLUDES TOP & BOTTOM TRIM)
Remeha-Commercial part no. S54783		 £239.86
1002 Part number S56168, Casing side left or right Q85 & Q115 CASING SIDE LEFT OR RIGHT Q85 & Q115
Remeha-Commercial part no. S56168		 £109.39

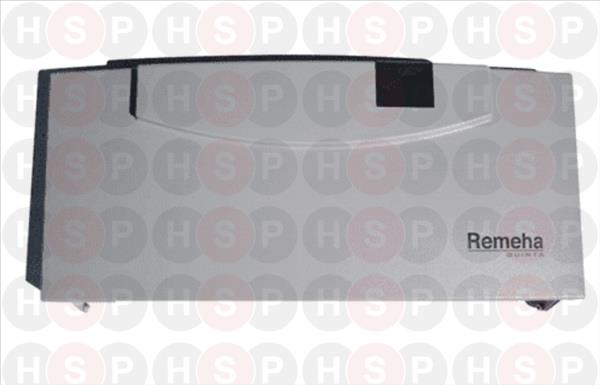

1003 Part number S100213, Grey Drop Down Door for Quinta 30/45/65/85/115 GREY DROP DOWN DOOR FOR QUINTA 30/45/65/85/115
Remeha-Commercial part no. S100213		 £75.23
1004 Part number 57485, (USE S57485) Wall mounting bracket for Quinta 45/65/85/115 (USE S57485) WALL MOUNTING BRACKET FOR QUINTA 45/65/85/115
Remeha-Broag part no. 57485
1004 Part number S57485, Wall Bracket (Quinta) WALL BRACKET (QUINTA)
Remeha-Commercial part no. S57485		 £36.90
2001 Part number S101550, Heat exchanger 90/115kW (AND Q85/Q115) HEAT EXCHANGER 90/115KW (AND Q85/Q115)
Remeha-Commercial part no. S101550		 £2,972.10
2001 Part number S100196, (USE S101550) Heat Exchanger Quinta 85 & 115 (USE S101550) (USE S101550) HEAT EXCHANGER QUINTA 85 & 115 (USE S101550)
Remeha-Broag part no. S100196
2002 Part number S53477, Heat exchanger front plate (c/w Seal & Insulation) Quinta Eco 45-115 HEAT EXCHANGER FRONT PLATE (C/W SEAL & INSULATION) QUINTA ECO 45-115
Remeha-Commercial part no. S53477		 £319.35
2004 Part number S54339, Quinta Eco Electrode Ignition/ionisation MX REBA inc gasket and 2 screws L=58 QUINTA ECO ELECTRODE IGNITION/IONISATION MX REBA INC GASKET AND 2 SCREWS L=58
Remeha-Commercial part no. S54339		 £39.74
2005 Part number S45004, Glass inspection c/w gasket 32x32x3mm and screws GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS
Remeha-Commercial part no. S45004		 £48.55
2006 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731		 £76.64
2007   FLUE CONNECTION 150MM D:
Remeha-Commercial part no. S54781		 £65.30
2009 Part number S57163, Cap for connection piece chimney (Pk2) CAP FOR CONNECTION PIECE CHIMNEY (PK2)
Remeha-Commercial part no. S57163		 £20.58
2010 Part number S62728, Auto Air Vent bleed device 3/8" AUTO AIR VENT BLEED DEVICE 3/8"
Remeha-Commercial part no. S62728		 £44.14
2010 Part number S62729, VALVE - NON RETURN (FOR AUTO AIR VENT) 5PCS VALVE - NON RETURN (FOR AUTO AIR VENT) 5PCS
Remeha-Commercial part no. S62729		 £39.74
2011 Part number S100041, Syphon Assembly Q115 SYPHON ASSEMBLY Q115
Remeha-Commercial part no. S100041		 £126.46
2012 Part number S44698, Temperature Sensor (flow And return) Elmwood NTC 12K/007 TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007
Remeha-Commercial part no. S44698		 £38.33
2013 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241		 £20.58
2014 Part number S55994, (Use 7631936) - Flue gas pipe dia100 Q65/85/115 (USE 7631936) - FLUE GAS PIPE DIA100 Q65/85/115
Remeha-Broag part no. S55994
2014 Part number 7631936, Flue Gas Discharge Pipe (c/w Seals) FLUE GAS DISCHARGE PIPE (C/W SEALS)
Remeha-Commercial part no. 7631936		 £161.81
2015 Part number S53240, OBSOLETE Cap for flue gas temperature sensor OBSOLETE CAP FOR FLUE GAS TEMPERATURE SENSOR
Remeha-Commercial part no. S53240		 £28.39
2015 Part number 53240, OBSOLETE Cap for flue gas temperature sensor OBSOLETE CAP FOR FLUE GAS TEMPERATURE SENSOR
Remeha-Broag part no. 53240		 £0.67
2016 Part number 54278, (USE S54278) Grommet 46mm o/d x 22mm I/d black condensate pipe to bottom casing (USE S54278) GROMMET 46MM O/D X 22MM I/D BLACK CONDENSATE PIPE TO BOTTOM CASING
Remeha-Broag part no. 54278
2016 Part number S54278, Grommet (5pcs) GROMMET (5PCS)
Remeha-Commercial part no. S54278		 £22.71
2017 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950		 £17.74
2018 Part number S55924, Cable ignition c/w cap (Quinta 45/65/85 & 115) CABLE IGNITION C/W CAP (QUINTA 45/65/85 & 115)
Remeha-Commercial part no. S55924		 £63.86
2019 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489		 £28.39
2020 Part number S54822, Mounting Frame (For Inspection Glass) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Commercial part no. S54822		 £13.39
2021 Part number S35458, Gasket for inspection glass (5 pcs) GASKET FOR INSPECTION GLASS (5 PCS)
Remeha-Commercial part no. S35458		 £11.70
2022 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £25.55
2023 Part number 55915, DO NOT USE Sealing ring r 100 (USE S55915 PK OF 5) DO NOT USE SEALING RING R 100 (USE S55915 PK OF 5)
Remeha-Broag part no. 55915
2023 Part number S55915, NOW USE S101643 Quinta Internal Flue Sealing Ring 100mm (5pcs) NOW USE S101643 QUINTA INTERNAL FLUE SEALING RING 100MM (5PCS)
Remeha-Commercial part no. S55915
2023 Part number S101643, Sealing Ring 100 (5 Pcs) SEALING RING 100 (5 PCS)
Remeha-Commercial part no. S101643		 £35.49
2027 Part number S57470, Sealing Plate (Syphon Black Foam) 5 Pcs SEALING PLATE (SYPHON BLACK FOAM) 5 PCS
Remeha-Commercial part no. S57470		 £28.39
2029 Part number S51103, Sealing Ring 44 x 32 x 4 Pack of 5 SEALING RING 44 X 32 X 4 PACK OF 5
Remeha-Commercial part no. S51103		 £5.94
2030 Part number 21473, NOW USE S21473 Washer spring ring 4mm o/d x 3mm I/d for Ign electrode mtg screws x 2 NOW USE S21473 WASHER SPRING RING 4MM O/D X 3MM I/D FOR IGN ELECTRODE MTG SCREWS X 2
Remeha-Broag part no. 21473
2030 Part number S21473, Washer Spring Ring A4,3 (10 Pcs.) WASHER SPRING RING A4,3 (10 PCS.)
Remeha-Commercial part no. S21473		 £8.46
2034 Part number S55409, GROMMET FOR IGNITION ELECTRODE GROMMET FOR IGNITION ELECTRODE
Remeha-Broag part no. S55409		 £6.83
2034 Part number 55409, (USE S55409) Grommet for ignition electrode (USE S55409) GROMMET FOR IGNITION ELECTRODE
Remeha-Broag part no. 55409
3001 Part number S100036, Fan - Quinta, Quinta Pro, & Gas 110 115kW FAN - QUINTA, QUINTA PRO, & GAS 110 115KW
Remeha-Commercial part no. S100036		 £518.06
3002 Part number S100037, Venturi Quinta 115 VENTURI QUINTA 115
Remeha-Commercial part no. S100037		 £305.16
3003 Part number S100065, Valve Gasblock VR8615VB1002 (Q115 Eco / Gas 110 (115kW)) VALVE GASBLOCK VR8615VB1002 (Q115 ECO / GAS 110 (115KW))
Remeha-Commercial part no. S100065		 £310.84
3006 Part number S56151, Gasket for fan to venturi GASKET FOR FAN TO VENTURI
Remeha-Commercial part no. S56151		 £8.46
3007 Part number S100058, Seal O-ring 70x3 (5 pcs) SEAL O-RING 70X3 (5 PCS)
Remeha-Commercial part no. S100058		 £68.14
3009 Part number S100363, Seal O-ring 33x2 (10 pcs) SEAL O-RING 33X2 (10 PCS)
Remeha-Commercial part no. S100363		 £26.96
3011 Part number S100059, Seal O-ring 23.47x2.62 (5 pcs) SEAL O-RING 23.47X2.62 (5 PCS)
Remeha-Commercial part no. S100059		 £48.55
4001 Part number S100040, Control Board MCBA Quinta 115 and Gas 110-115kW CONTROL BOARD MCBA QUINTA 115 AND GAS 110-115KW
Remeha-Commercial part no. S100040		 £481.75
4001 Part number S14510, FUSE 4 AMP SLOW ACTING QUINTA /210 (Pack of 10) (Sold singularly as 14510) FUSE 4 AMP SLOW ACTING QUINTA /210 (PACK OF 10) (SOLD SINGULARLY AS 14510)
Remeha-Commercial part no. S14510		 £26.96
4001 Part number S43563, Fuses glass 2 Amp fast Pack of 10 FUSES GLASS 2 AMP FAST PACK OF 10
Remeha-Commercial part no. S43563		 £22.71
4002 Part number S54802, PCB display print PCB DISPLAY PRINT
Remeha-Commercial part no. S54802		 £123.48
4005 Part number S56087, Housing TEM (open) HOUSING TEM (OPEN)
Remeha-Commercial part no. S56087		 £45.64
4007 Part number S56940, Door R/H Cover DOOR R/H COVER
Remeha-Commercial part no. S56940		 £29.81
4009   CABLE SUPPORT
Remeha-Broag part no. 49196		 £2.28
4011   SNAPPER FOR CONTROL BOX
Remeha-Broag part no. 54794		 £1.41
4013 Part number S58938, Pressure gauge + grommet PRESSURE GAUGE + GROMMET
Remeha-Commercial part no. S58938		 £29.81
4014   DOOR R/H
Remeha-Commercial part no. S54800		 £22.71
4015 Part number S100039, Cable set Q115 CABLE SET Q115
Remeha-Commercial part no. S100039		 £122.19
4017 Part number S63316, Print Am3-2 (3 relais) PRINT AM3-2 (3 RELAIS)
Remeha-Commercial part no. S63316		 £110.70
