GLOWWORM
BG 330+ - (07 Electronics)
Appliance Code: 41-019-11

Appliance Diagram

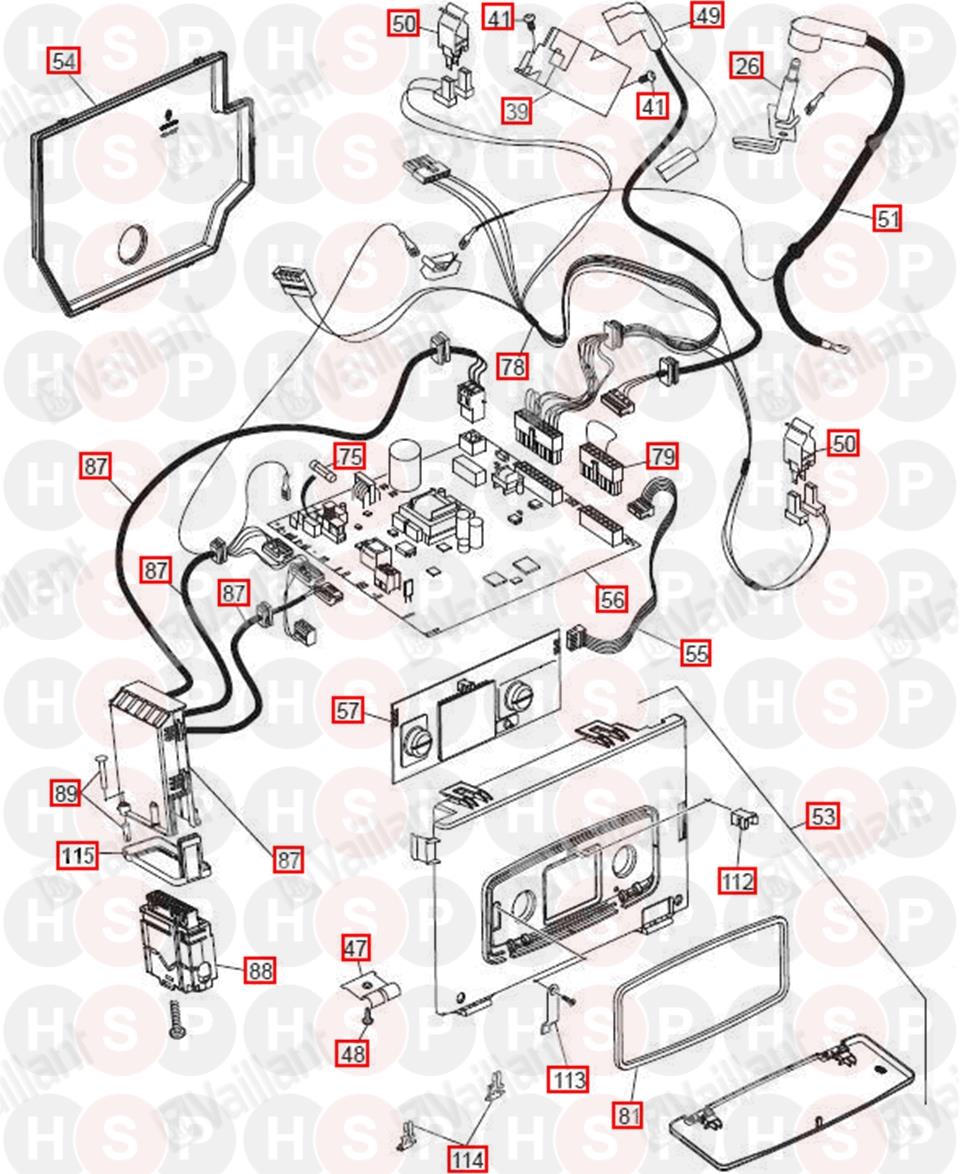

07 Electronics diagram for Glowworm BG 330+Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

26 Part number 0020020731, electrode ELECTRODE
Glowworm part no. 0020020731		 £15.93
39 Part number 0020020763, igniter IGNITER
Glowworm part no. 0020020763		 £28.53
41 Part number SK7959, Screw, M3x6mm SCREW, M3X6MM
Glowworm part no. SK7959		 £6.61
47 Part number 0020020774, Support (PK2) SUPPORT (PK2)
Glowworm part no. 0020020774		 £6.61
48   SCREW
Glowworm part no. 0020020776		 £6.61
49 Part number 0020020780, cable tree (zig harness) CABLE TREE (ZIG HARNESS)
Glowworm part no. 0020020780		 £14.81
50 Part number 0020020781, NOW USE S5739800 temperature monitor NOW USE S5739800 TEMPERATURE MONITOR
Glowworm part no. 0020020781
50 Part number 2000801935, NOW USE S5739800 ntc with clip d=18mm 10kOhm NOW USE S5739800 NTC WITH CLIP D=18MM 10KOHM
Glowworm part no. 2000801935
50 Part number S5739800, Temperature sensor TEMPERATURE SENSOR
Glowworm part no. S5739800		 £23.87
51 Part number 0020020783, cable (ignition lead assembly) CABLE (IGNITION LEAD ASSEMBLY)
Glowworm part no. 0020020783		 £44.25
53 Part number 0020058973, Casing (Front Part) CASING (FRONT PART)
Glowworm part no. 0020058973		 £99.59
54   CASING (BACK PANEL)
Glowworm part no. 0020058976		 £17.01
55 Part number 0020025183, appliance interface harness APPLIANCE INTERFACE HARNESS
Glowworm part no. 0020025183		 £13.27
56 Part number 0020058975, Printed Circuit Board PRINTED CIRCUIT BOARD
Glowworm part no. 0020058975		 £262.86
57 Part number 0020058974, Display DISPLAY
Glowworm part no. 0020058974		 £166.97
75 Part number 0020026405, NOW USE 0020079603 fuse NOW USE 0020079603 FUSE
Glowworm part no. 0020026405
75 Part number 0020079603, Fuse 2,0 A T2H (PK10) FUSE 2,0 A T2H (PK10)
Glowworm part no. 0020079603		 £14.09
78 Part number 0020020778, Cable tree (combustion harness) CABLE TREE (COMBUSTION HARNESS)
Glowworm part no. 0020020778		 £29.44
79   CABLE TREE (HYDRAULIC HARNESS)
Glowworm part no. 0020020786		 £8.76
81 Part number 0020061283, Gasket GASKET
Glowworm part no. 0020061283		 £6.80
87 Part number 0020061286, Housing HOUSING
Glowworm part no. 0020061286		 £86.69
88 Part number 0020041108, housing HOUSING
Glowworm part no. 0020041108		 £23.16
89 Part number 0020038263, fitting FITTING
Glowworm part no. 0020038263		 £6.61
112   SPRING CATCH (X15)
Glowworm part no. 2000802020		 £17.39
113   COVER
Glowworm part no. 0020061288		 £10.33
114   DAMPER
Glowworm part no. 0020061284		 £11.73
115 Part number 0020038260, Gasket GASKET
Glowworm part no. 0020038260		 £18.55
