GLOWWORM
ULTRACOM 2 30 CXI 2010 - 2015 - (07 Electronics)
Appliance Code: 47-019-11

Appliance Diagram


07 Electronics diagram for Glowworm Ultracom 2 30 CXI 2010 - 2015Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number A000035144, ignition transformer IGNITION TRANSFORMER
Glowworm part no. A000035144
£38.23
2   SCREW PACK (PK75)
Glowworm part no. 0020097301
£6.39
3 Part number 2000801935, NOW USE S5739800 ntc with clip d=18mm 10kOhm NOW USE S5739800 NTC WITH CLIP D=18MM 10KOHM
Glowworm part no. 2000801935

3 Part number S5739800, Temperature sensor TEMPERATURE SENSOR
Glowworm part no. S5739800
£23.87
4 Part number 0020097284, Strap (PK5) STRAP (PK5)
Glowworm part no. 0020097284
£6.39

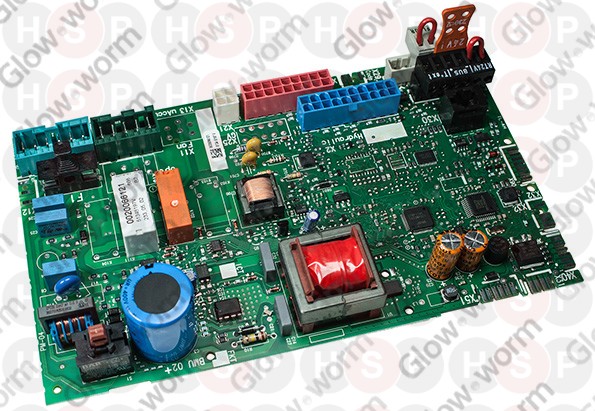

5 Part number 0020097400, Printed circuit PRINTED CIRCUIT
Glowworm part no. 0020097400
£188.66
6 Part number 0020014787, 2 AMMP FUSE 2 AMMP FUSE
Glowworm part no. 0020014787
£4.46
6 Part number 05651700, Fuse 2A (PK5) FUSE 2A (PK5)
Glowworm part no. 05651700
£6.36
7 Part number 0020097285, Plastic control box cover PLASTIC CONTROL BOX COVER
Glowworm part no. 0020097285
£8.58
8   WIRING HARNESS
Glowworm part no. 0020097282
£28.76
8 Part number 0020097368, Wiring harness WIRING HARNESS
Glowworm part no. 0020097368
£49.71
9   CONNECTION BOX
Glowworm part no. 0020097286
£21.92
10   CABLE
Glowworm part no. 0020097294
£8.25
11   COVER
Glowworm part no. 0020097293
£6.61
12   CONTROL BOX
Glowworm part no. 0020097288
£21.68
13 Part number 0020084513, Switch reset (x5) SWITCH RESET (X5)
Glowworm part no. 0020084513
£6.39
14 Part number 0020084515, Cable tree (harness) CABLE TREE (HARNESS)
Glowworm part no. 0020084515
£6.39
15 Part number 0020191787, Display DISPLAY
Glowworm part no. 0020191787
£80.81
16   KNOB
Glowworm part no. 0020097296
£6.61
17 Part number 0020097304, Plug 6 wires (PK5) PLUG 6 WIRES (PK5)
Glowworm part no. 0020097304
£30.99
19 Part number 0020097302, Plug 2 wires (PK5) PLUG 2 WIRES (PK5)
Glowworm part no. 0020097302
£9.70
20 Part number 0020097303, Plug 5 wires PLUG 5 WIRES
Glowworm part no. 0020097303
£6.61
