GLOWWORM
ULTRACOM 2 12 SXI 2010 - 2015 - (09A Hydraulics Hydroblock)
Appliance Code: 41-019-12

Appliance Diagram

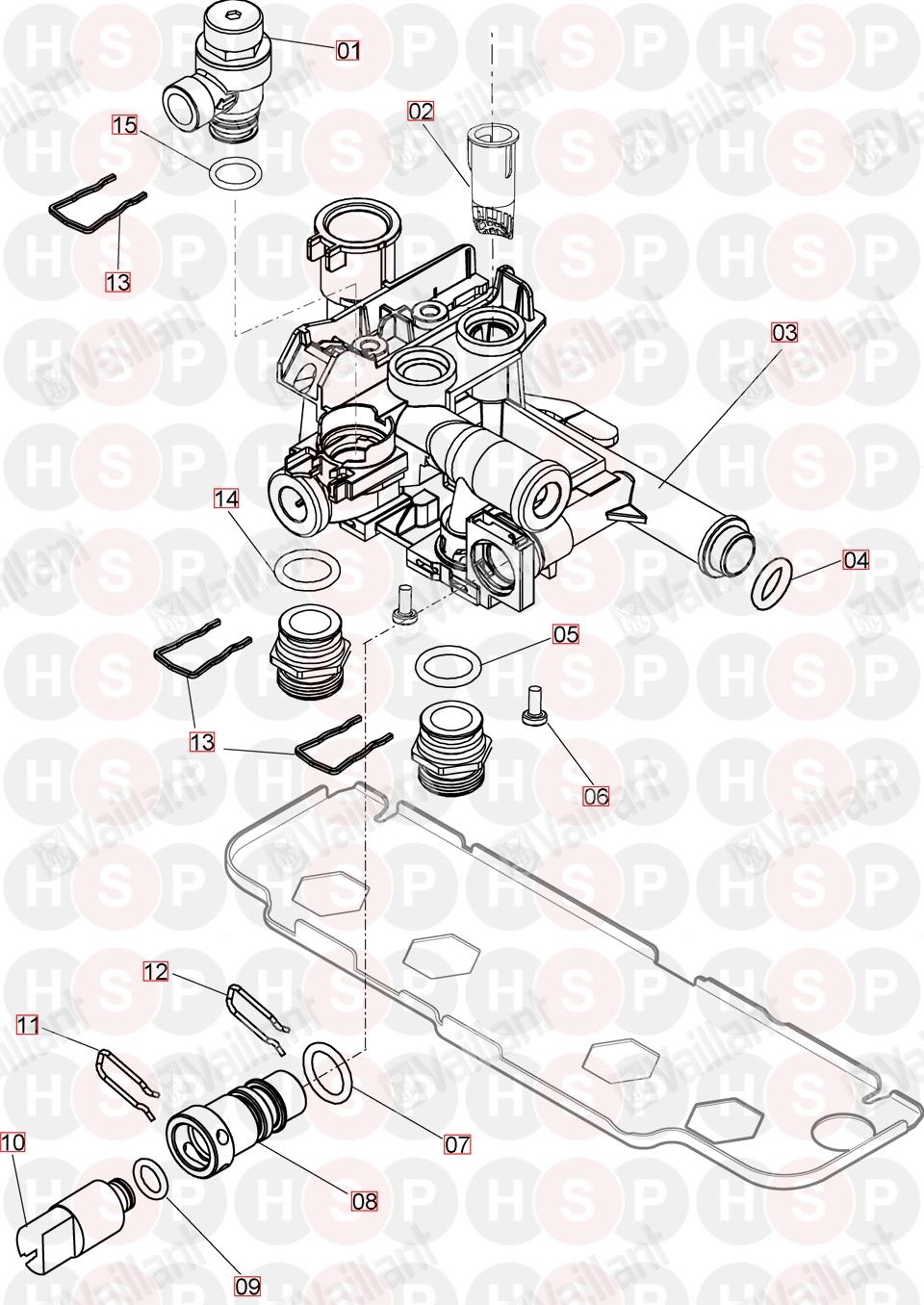

09A Hydraulics Hydroblock diagram for Glowworm Ultracom 2 12 SXI 2010 - 2015Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 2000801904, NOW USE 0020047005 HEATING SAFETY VALVE 3BAR - NOW USE 0020047005 HEATING SAFETY VALVE 3BAR -
Glowworm part no. 2000801904

1 Part number 0020014173, NOW USE 0020047005 pressure relief valve(3 bar) NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR)
Glowworm part no. 0020014173

1 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005
£14.99
2 Part number 0020097195, FILTER FILTER
Glowworm part no. 0020097195
£6.61
3 Part number 0020097205, Hydraulic block, Din outlet HYDRAULIC BLOCK, DIN OUTLET
Glowworm part no. 0020097205
£112.25
4 Part number 0020097187, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097187
£6.61
5 Part number 2000801948, O-ring, (PK20) O-RING, (PK20)
Glowworm part no. 2000801948
£12.05
6 Part number 0020097185, Screw (PK10) SCREW (PK10)
Glowworm part no. 0020097185
£6.61
7 Part number 2000801953, NOW USE S5466400 o-ring 13mm cv-filter (20 pieces) NOW USE S5466400 O-RING 13MM CV-FILTER (20 PIECES)
Glowworm part no. 2000801953

7 Part number S5466400, O-Ring (PK20) O-RING (PK20)
Glowworm part no. S5466400
£17.50
8 Part number 0020097199, Adapter sensor (PK10) ADAPTER SENSOR (PK10)
Glowworm part no. 0020097199
£56.13
9 Part number 0020097203, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020097203
£6.61
10 Part number A000024135, NOW USE S5720500 Pressure sensor d=10mm NOW USE S5720500 PRESSURE SENSOR D=10MM
Glowworm part no. A000024135

10 Part number S5720500, Pressure Sensor PRESSURE SENSOR
Glowworm part no. S5720500
£27.02
11 Part number 0020014164, Wire retaining clip (PK10) WIRE RETAINING CLIP (PK10)
Glowworm part no. 0020014164
£8.47
12 Part number 0020097201, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020097201
£8.40
13 Part number 0020014176, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014176
£12.38
14 Part number 2000801956, O-ring (PK10) O-RING (PK10)
Glowworm part no. 2000801956
£9.48
15 Part number 0020027470, O-ring 15.1x2.7 (PK10) O-RING 15.1X2.7 (PK10)
Glowworm part no. 0020027470
£10.31
