RIELLO
RDB1 90-120 3748760 (TYPE 487 T50) - (Burner Diagram)
Appliance Code: 3748760

Appliance Diagram


Burner Diagram diagram for Riello RDB1 90-120 3748760 (Type 487 T50)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

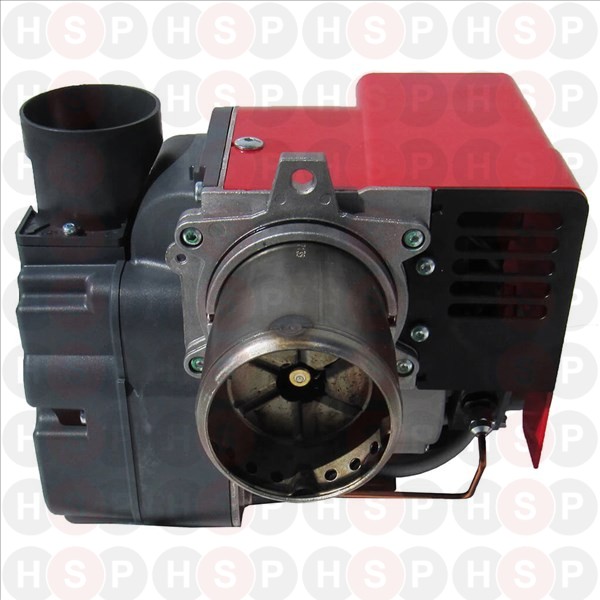

Part number 3748760, Grant Riello RDB2 Burner, 90/120 GRANT RIELLO RDB2 BURNER, 90/120
Riello part no. 3748760		 £250.00
1 Part number 3005787, FLANGE GASKET USED WITH 5786 FLANGE GASKET USED WITH 5786
Riello part no. 3005787		 £7.50
2 Part number 3006384, FRONT PIECE FRONT PIECE
Riello part no. 3006384		 £13.18
3 Part number 3008769, CUP-SHAPED HEAD CUP-SHAPED HEAD
Riello part no. 3008769		 £43.72
4 Part number 3007513, ELECTRODE ASSEMBLY ELECTRODE ASSEMBLY
Riello part no. 3007513		 £14.87
5 Part number 3006552, ELECTRODE CLAMP (10 PCS) ELECTRODE CLAMP (10 PCS)
Riello part no. 3006552		 £19.47
6 Part number 3008642, NOZZLE HOLDER NOZZLE HOLDER
Riello part no. 3008642		 £18.30
7 Part number 3008643, COLLAR COLLAR
Riello part no. 3008643		 £44.83
8 Part number 3008794, HIGH VOLTAGE LEAD (6 PCS) HIGH VOLTAGE LEAD (6 PCS)
Riello part no. 3008794		 £11.58
9 Part number 3008839, AIR DAMPER ASSEMBLY AIR DAMPER ASSEMBLY
Riello part no. 3008839		 £77.19
10 Part number 3008645, FAN FAN
Riello part no. 3008645		 £40.23
11 Part number 3008646, PHOTOCELL PHOTOCELL
Riello part no. 3008646
12 Part number 3002837, NOW USE 20071576 CAPACITOR NOW USE 20071576 CAPACITOR
Riello part no. 3002837
12 Part number 20071576, CAPACITOR CAPACITOR
Riello part no. 20071576		 £30.32
13 Part number 3008878, SEAL KIT SEAL KIT
Riello part no. 3008878		 £9.42
14 Part number 3007871, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3007871		 £27.29
15 Part number 20032135, PRESSURE REGULATOR PRESSURE REGULATOR
Riello part no. 20032135		 £4.89
17 Part number 20030953, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20030953		 £125.51
18 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175		 £15.98
19 Part number 3020436, PUMP FILTER 3020436 RDB 3008653 PUMP FILTER 3020436 RDB 3008653
Riello part no. 3020436		 £8.40
20 Part number 3003602, CONNECTOR (G5BF) CONNECTOR (G5BF)
Riello part no. 3003602		 £4.44
21 Part number 3007621, NOW USE 20032005 FLEXIBLE PIPE (G5BF) NOW USE 20032005 FLEXIBLE PIPE (G5BF)
Riello part no. 3007621
21 Part number 20032005, FLEXIBLE PIPE (G5BF) FLEXIBLE PIPE (G5BF)
Riello part no. 20032005		 £19.87
22 Part number 3008644, TUBE TUBE
Riello part no. 3008644		 £34.80
23 Part number 3008876, PRESSURE GAUGE EXTENSION (RDB) PRESSURE GAUGE EXTENSION (RDB)
Riello part no. 3008876		 £14.98
24 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.74
25 Part number 3008648, COIL COIL
Riello part no. 3008648		 £21.09
26 Part number 3002836, NOW USE 20071577 RDB MOTOR C/W CAPACITOR NOW USE 20071577 RDB MOTOR C/W CAPACITOR
Riello part no. 3002836
26 Part number 3008650, NOW USE 20071577 MOTOR NOW USE 20071577 MOTOR
Riello part no. 3008650
26 Part number 20071577, Motor C/W Capacitor MOTOR C/W CAPACITOR
Riello part no. 20071577		 £124.05
27 Part number 3008649, PROTECTION PROTECTION
Riello part no. 3008649		 £11.09
28 Part number 3008652, CONTROL BOX 535 SE/LD CONTROL BOX 535 SE/LD
Riello part no. 3008652		 £125.32
29 Part number 3008851, H T LEADS ( WAS 3008877) H T LEADS ( WAS 3008877)
Riello part no. 3008851		 £7.35
30 Part number 3008879, COVER COVER
Riello part no. 3008879		 £39.19
