VAILLANT
MAG MINI 11-0/0 XI 2004-2009 - (4 Burner)
Appliance Code: 11-0/0 XI

Appliance Diagram


4 Burner diagram for Vaillant Mag Mini 11-0/0 XI 2004-2009Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

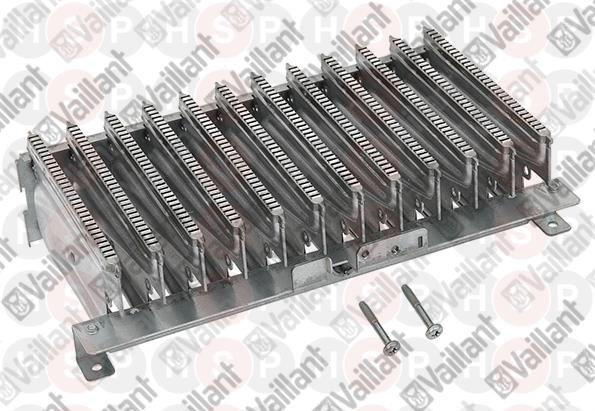

1 Part number 115189, Burner chamber group BURNER CHAMBER GROUP
Vaillant part no. 115189
£39.71
2 Part number 115191, Burner support BURNER SUPPORT
Vaillant part no. 115191

3 Part number 291203, Injector, 0.72 (PK12) INJECTOR, 0.72 (PK12)
Vaillant part no. 291203
£11.30
4 Part number 105831, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105831
£6.66
5 Part number 981125, Gasket (PK10) GASKET (PK10)
Vaillant part no. 981125
£6.66
6 Part number 115235, Sensor (STB) SENSOR (STB)
Vaillant part no. 115235
£17.54
7 Part number 509697, Ignition electrode IGNITION ELECTRODE
Vaillant part no. 509697
£13.92
8 Part number 105829, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105829
£6.66

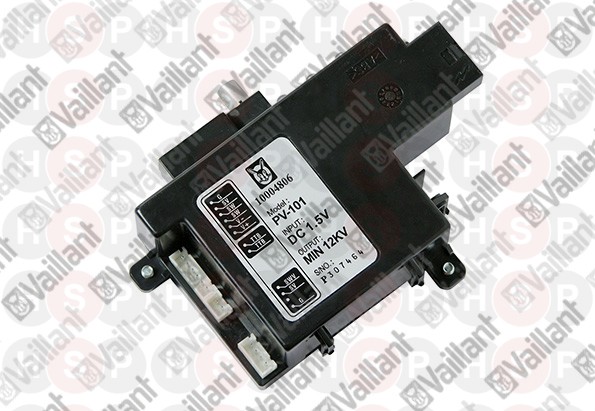

9 Part number 115257, Flame supervision device FLAME SUPERVISION DEVICE
Vaillant part no. 115257
£79.43
10 Part number 105834, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105834
£6.66
11 Part number 115198, Cylinder screw (PK10) CYLINDER SCREW (PK10)
Vaillant part no. 115198
£6.71
12 Part number 115264, Battery casing BATTERY CASING
Vaillant part no. 115264
£9.10

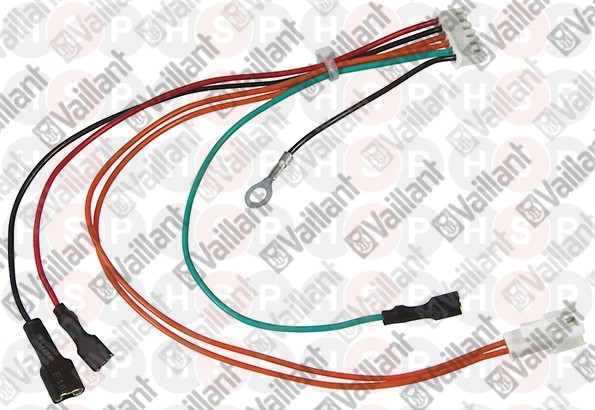

13 Part number 115258, Wiring harness WIRING HARNESS
Vaillant part no. 115258
£6.71
