VAILLANT
THERMOCOMPACT VC 180T 1988-1995 - (04 Burner)
Appliance Code: 41-044-03

Appliance Diagram

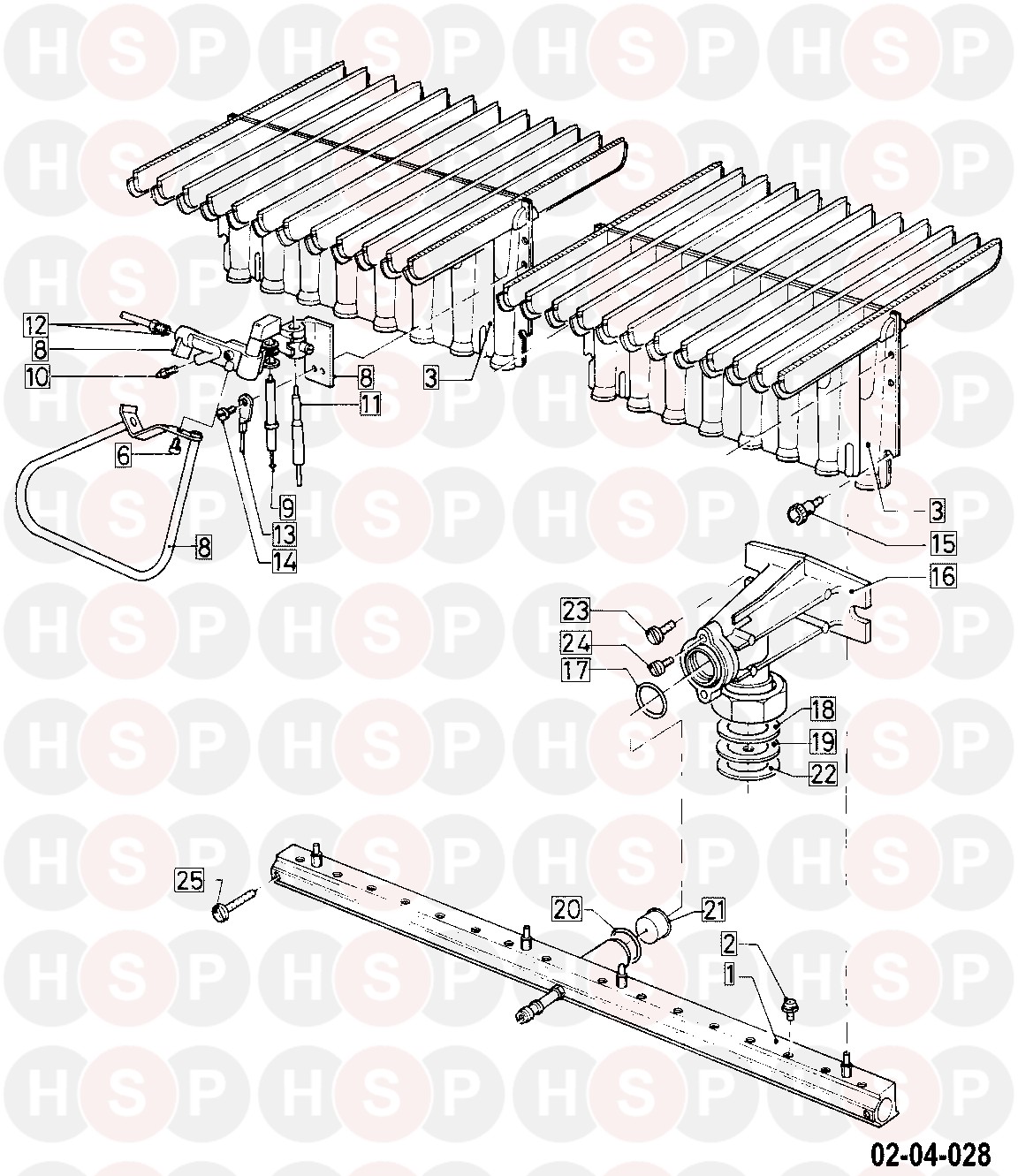

04 Burner diagram for Vaillant Thermocompact VC 180T 1988-1995Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 183968, distributor tube DISTRIBUTOR TUBE
Vaillant part no. 183968
£12.81
2 Part number 0020107713, OBSOLETE INJECTOR SET OBSOLETE INJECTOR SET
Vaillant part no. 0020107713

2 Part number 247080, burner nozzle VC110T B BURNER NOZZLE VC110T B
Vaillant part no. 247080
£3.91
3 Part number 040467, burner chamber group BURNER CHAMBER GROUP
Vaillant part no. 040467

6 Part number 060018, screw SCREW
Vaillant part no. 060018
£6.66
8 Part number 042951, Pilot burner support PILOT BURNER SUPPORT
Vaillant part no. 042951

9 Part number 0020107719, OBSOLETE ELECTRODE OBSOLETE ELECTRODE
Vaillant part no. 0020107719

10 Part number 042864, Pilot burner nozzle PILOT BURNER NOZZLE
Vaillant part no. 042864
£5.13
10 Part number 042874, pilot burner nozzle VC221T B, 110T B PILOT BURNER NOZZLE VC221T B, 110T B
Vaillant part no. 042874

11 Part number 171165, thermo-couple THERMO-COUPLE
Vaillant part no. 171165

12 Part number 043931, pilot burner tube, cpl. PILOT BURNER TUBE, CPL.
Vaillant part no. 043931
£3.91
15 Part number 133936, screw SCREW
Vaillant part no. 133936
£3.91
16   CONNECTION PIECE
Vaillant part no. 084957
£17.89
17 Part number 0020107693, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020107693
£6.50
20 Part number 982481, Gasket GASKET
Vaillant part no. 982481
£5.13
21   OBSOLETE THROTTLE JET
Vaillant part no. 049604

22 Part number 981162, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981162
£5.13
23 Part number 235727, screw SCREW
Vaillant part no. 235727
£5.13
24 Part number 105740, cylinder screw CYLINDER SCREW
Vaillant part no. 105740

25 Part number 235728, screw SCREW
Vaillant part no. 235728
