VAILLANT
THERMOCOMPACT 615E VU 152/2-5 R1 2002-2004 - (04 Burner (R1 2002-2004 ))
Appliance Code: 41-044-23-R1

Appliance Diagram

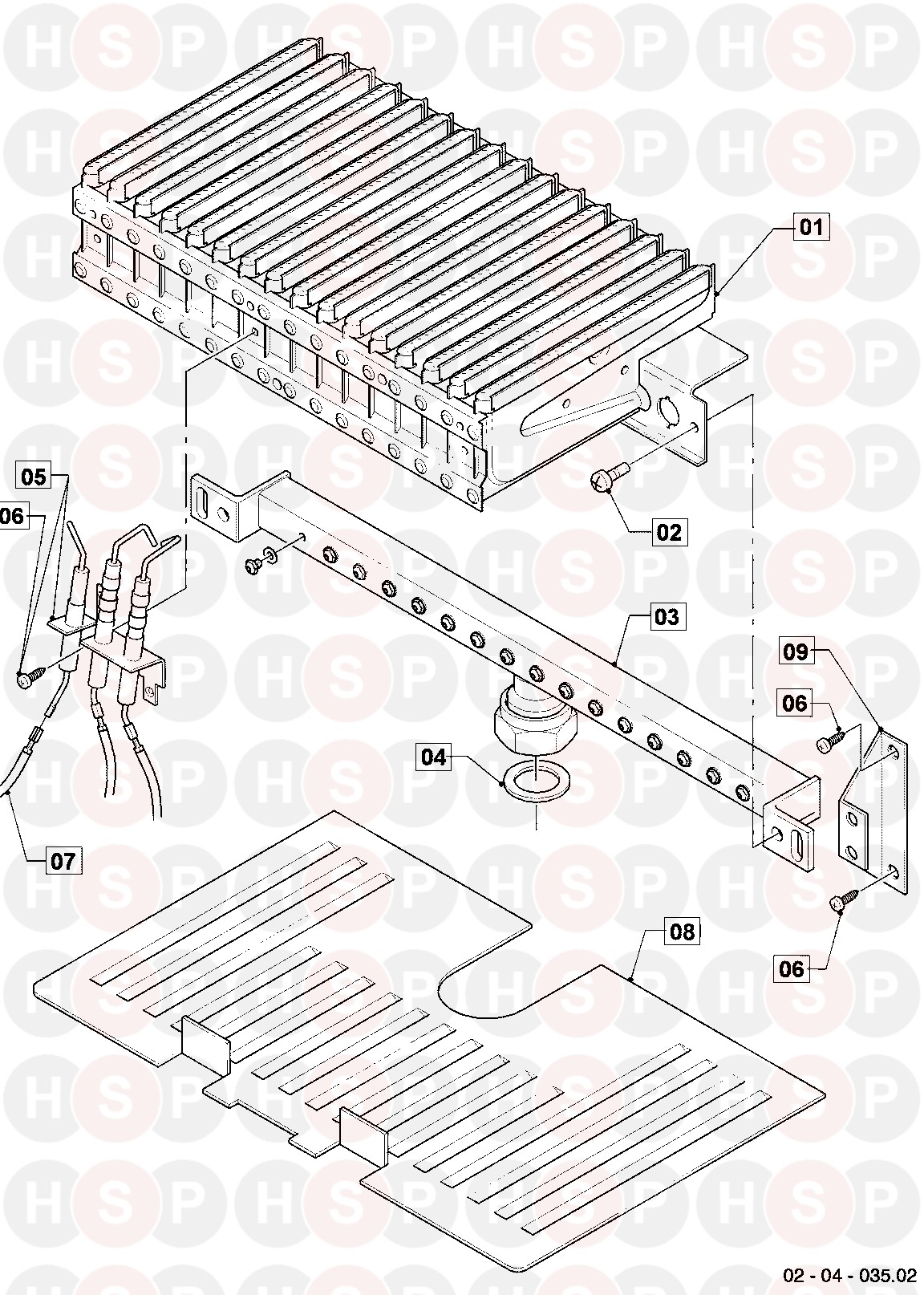

04 Burner (R1 2002-2004 ) diagram for Vaillant Thermocompact 615E VU 152/2-5 R1 2002-2004Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   BURNER CHAMBER GROUP
Vaillant part no. 031508		 £69.07
2 Part number 118937, Pan head screw (M 5x12) PAN HEAD SCREW (M 5X12)
Vaillant part no. 118937		 £5.13
3 Part number 126777, Burner support 12/15kW H BURNER SUPPORT 12/15KW H
Vaillant part no. 126777
4 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
5 Part number 090724, Electrode ELECTRODE
Vaillant part no. 090724		 £29.91
6 Part number 0020107695, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020107695		 £6.66
7 Part number 256116, cable tree CABLE TREE
Vaillant part no. 256116		 £62.52
9 Part number 098916, Support (PK2) SUPPORT (PK2)
Vaillant part no. 098916		 £6.66
