VWL 85/2 A 230V 2013 ONWARDS - (Refrigerant Circuit)
Appliance Code: 0010011971

Appliance Diagram


Refrigerant Circuit diagram for Vaillant VWL 85/2 A 230V 2013 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020148034, COIL, EXPANSION VALVE COIL, EXPANSION VALVE
Vaillant part no. 0020148034		 £41.06
2 Part number 0020148032, Coil, 4 way valve COIL, 4 WAY VALVE
Vaillant part no. 0020148032		 £30.10
3 Part number 108628, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 108628		 £6.86
4   EVAPORATOR, 8KW
Vaillant part no. 0020174497		 £1,088.71
5 Part number 0020175810, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020175810		 £6.73
6 Part number 0020175852, Compressor, 8kW COMPRESSOR, 8KW
Vaillant part no. 0020175852		 £610.07

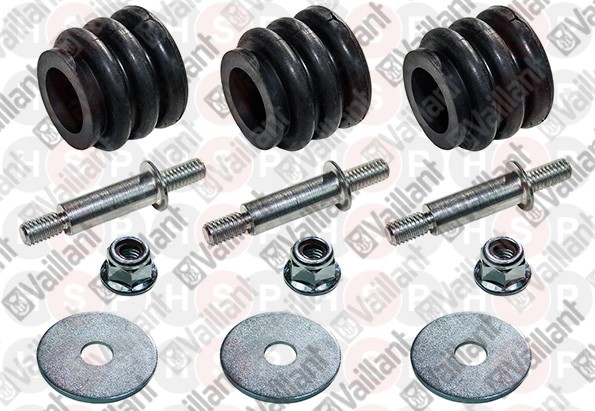

7 Part number 0020176078, Fastening kit, compressor FASTENING KIT, COMPRESSOR
Vaillant part no. 0020176078		 £12.50
8 Part number 0020176079, Resistor, compressor RESISTOR, COMPRESSOR
Vaillant part no. 0020176079		 £17.39
9 Part number 0020175855, Insulation, compressor 8kW INSULATION, COMPRESSOR 8KW
Vaillant part no. 0020175855		 £28.08
10 Part number 0020081349, Screw M8x30 (PK10) SCREW M8X30 (PK10)
Vaillant part no. 0020081349		 £13.06
11   COLLECTOR, 8KW
Vaillant part no. 0020175856		 £364.10
12 Part number 0020175858, Insulation INSULATION
Vaillant part no. 0020175858		 £12.45
13 Part number 0020175860, Condenser, 8kW CONDENSER, 8KW
Vaillant part no. 0020175860		 £499.27
14 Part number 0020175861, Insulation, front INSULATION, FRONT
Vaillant part no. 0020175861		 £12.45
15 Part number 0020030698, 4-ways valve 4-WAYS VALVE
Vaillant part no. 0020030698		 £75.00
16 Part number 0020175862, Filter FILTER
Vaillant part no. 0020175862		 £7.15
17 Part number 0020175863, Limiter LIMITER
Vaillant part no. 0020175863		 £20.12
18 Part number 0020175864, Expansion valve, thermostatic 8kW EXPANSION VALVE, THERMOSTATIC 8KW
Vaillant part no. 0020175864		 £65.33
19 Part number 0020148037, Sensor high pressure SENSOR HIGH PRESSURE
Vaillant part no. 0020148037		 £139.72
20 Part number 0020148036, Switch, high pressure SWITCH, HIGH PRESSURE
Vaillant part no. 0020148036		 £91.42
21 Part number 0020222853, Valve VALVE
Vaillant part no. 0020222853		 £7.07
22 Part number 0020175867, Clip, and insulation NTC CLIP, AND INSULATION NTC
Vaillant part no. 0020175867		 £6.91
23 Part number 0020148022, Sensor, temperature SENSOR, TEMPERATURE
Vaillant part no. 0020148022		 £13.15
24 Part number 0020175868, Filter, Biflow drier FILTER, BIFLOW DRIER
Vaillant part no. 0020175868		 £103.40
25 Part number 0020175869, Sensor SENSOR
Vaillant part no. 0020175869		 £7.58
26 Part number 0020183138, Damper, tubes DAMPER, TUBES
Vaillant part no. 0020183138		 £6.91
27 Part number 0020183139, Damper, condenser DAMPER, CONDENSER
Vaillant part no. 0020183139		 £6.91
28 Part number 0020183140, Insulation INSULATION
Vaillant part no. 0020183140		 £68.19
