VAILLANT
VRC 470F 2012 ONWARDS - (VRC 470f 2012 Onwards)
Appliance Code: 0020108137

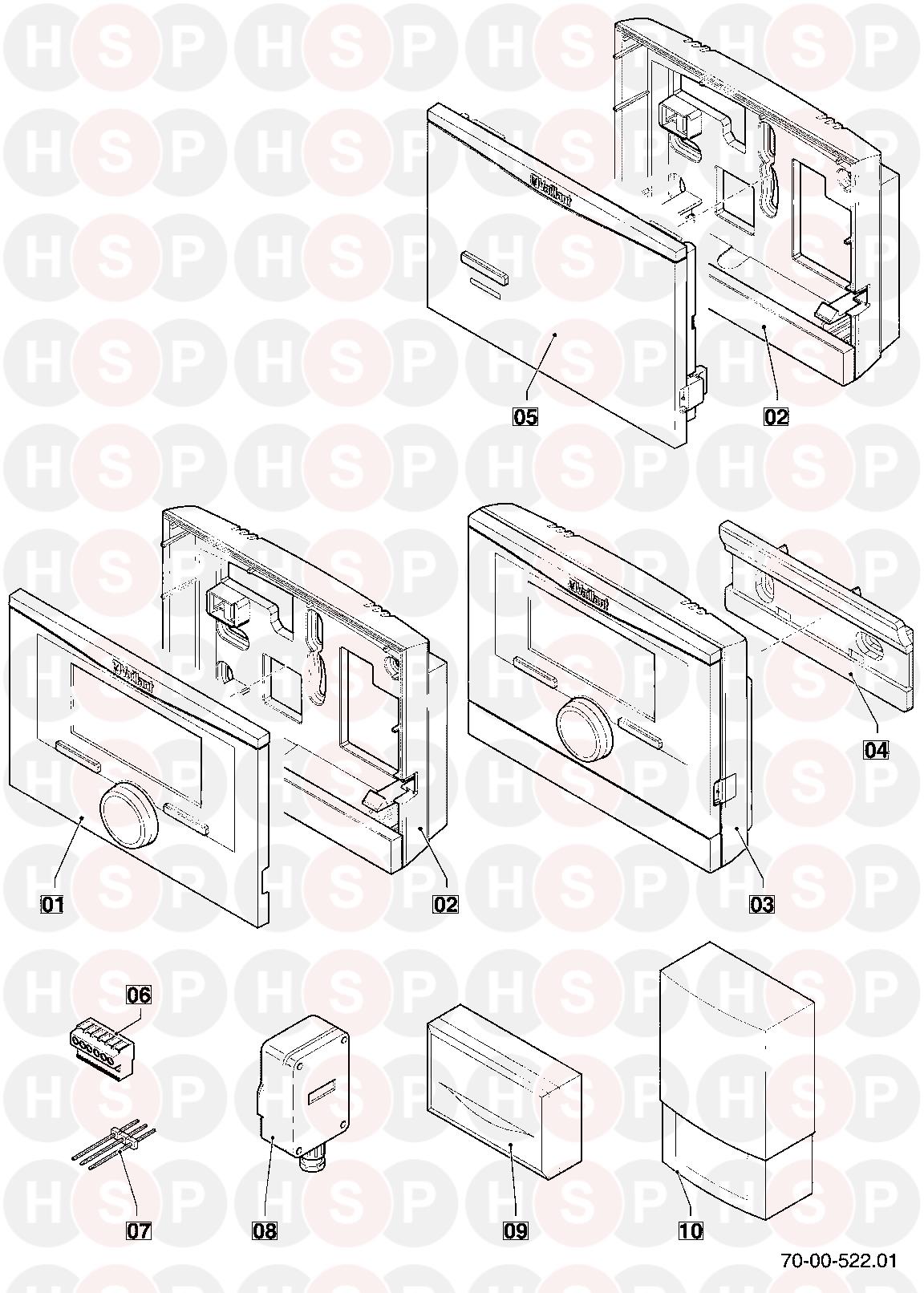

Appliance Diagram


VRC 470f 2012 Onwards diagram for Vaillant VRC 470f 2012 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020184593, Control, VRC 470 CONTROL, VRC 470
Vaillant part no. 0020184593		 £192.88
2 Part number 0020112596, Support, back panel SUPPORT, BACK PANEL
Vaillant part no. 0020112596		 £89.48
3 Part number 0020112594, Control, VRC 470f CONTROL, VRC 470F
Vaillant part no. 0020112594		 £273.38
4 Part number 0020112597, Support SUPPORT
Vaillant part no. 0020112597		 £26.17
5 Part number 0020112595, Control, base station CONTROL, BASE STATION
Vaillant part no. 0020112595		 £156.40
6 Part number 252629, plug PLUG
Vaillant part no. 252629		 £11.30
7 Part number 0020128529, Plug (3pin connector) PLUG (3PIN CONNECTOR)
Vaillant part no. 0020128529		 £8.97
8 Part number 000693, NOW USE 0020266791 OUT DOOR SENSOR NOW USE 0020266791 OUT DOOR SENSOR
Vaillant part no. 000693
8   OUTDOOR SENSOR
Vaillant part no. 0020266791		 £34.00
10 Part number 0020028537, Sensor, VR 20 SENSOR, VR 20
Vaillant part no. 0020028537		 £195.89
