BAXI
18 SYSTEM ECOBLUE ERP - (Wall Jig Hydraulic Connection)
Appliance Code: 41-470-25

Appliance Diagram

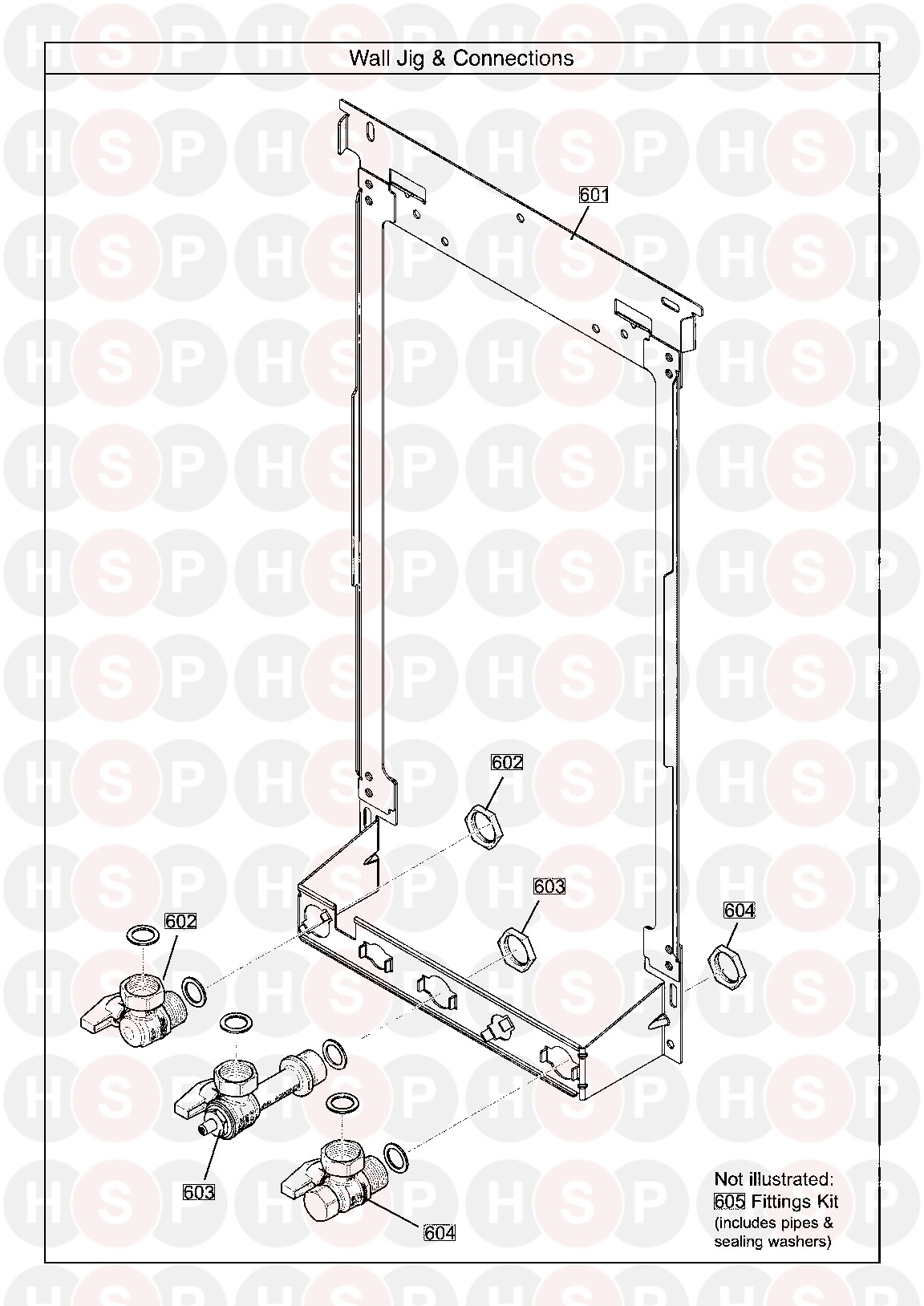

Wall Jig Hydraulic Connection diagram for Baxi 18 System Ecoblue ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

601   WALL JIG INC TAPS SYS 12-28
Baxi part no. 7215579
£109.17
601   WALL JIG SYS 12-28
Baxi part no. 7215580
£54.34
602 Part number 720773001, CENTRAL HEATG VALVE WITHOUT DRN CENTRAL HEATG VALVE WITHOUT DRN
Baxi part no. 720773001
£31.80
603   GAS INLET VALVE TEST POINT
Baxi part no. 7214351
£42.68
604 Part number 720773201, VALVE RETURN CENTRAL HEATING VALVE RETURN CENTRAL HEATING
Baxi part no. 720773201
£24.66
605   FIXINGS KIT ECOBLUE SYS 12-28
Baxi part no. 7214359
£99.31
