BAXI
24 COMBI ECOBLUE ERP - (Controls)
Appliance Code: 47-077-11

Appliance Diagram

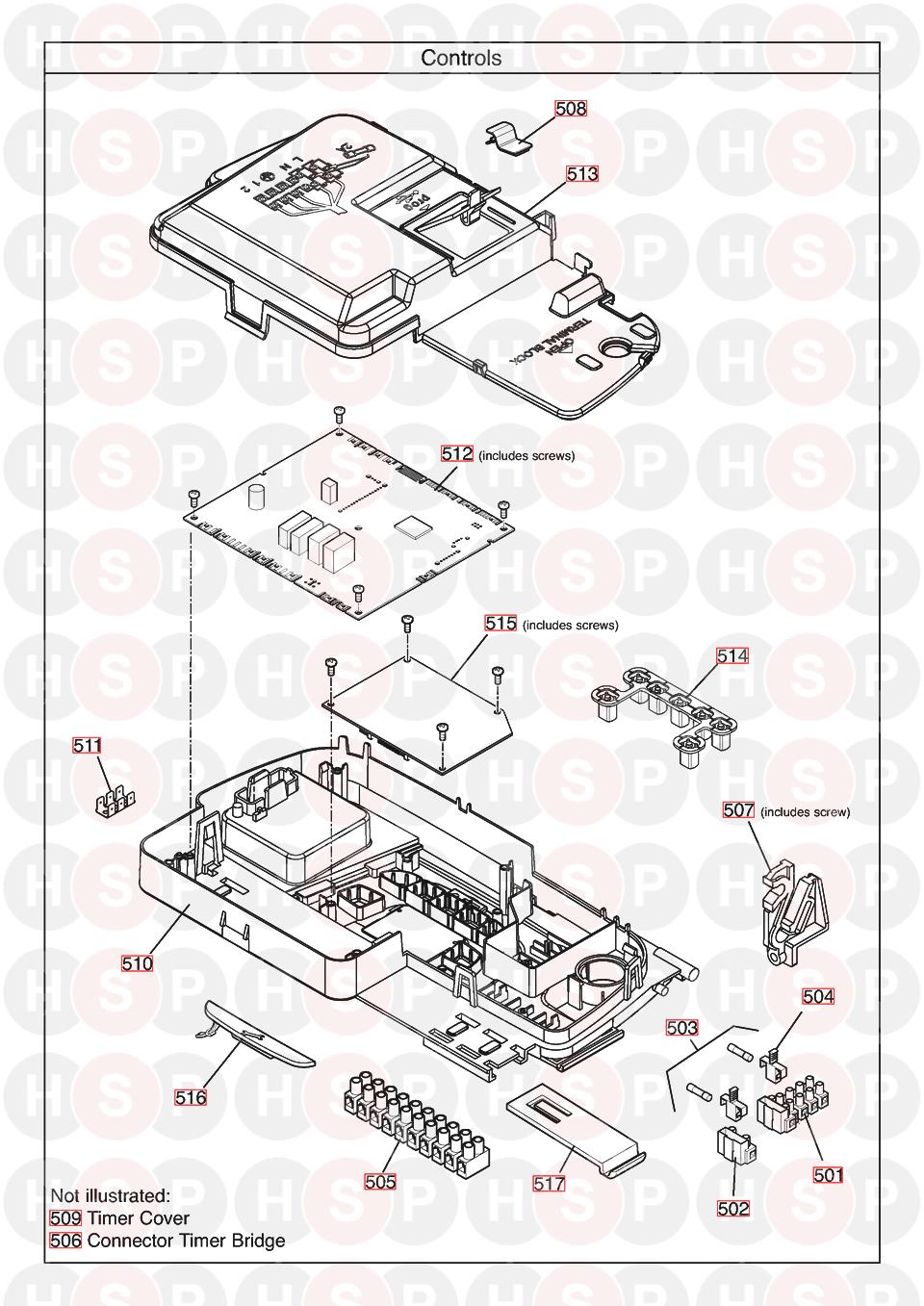

Controls diagram for Baxi 24 Combi Ecoblue ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

501   NOW USE 7727139 TERMINAL BLOCK 5 POS
Baxi part no. 720852801

501 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
502 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
502   NOW USE 7727139 TERMINAL BLOCK 1 POS
Baxi part no. 720853601

503 Part number 720853801, NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER
Baxi part no. 720853801

503 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
504 Part number 247481, FUSE HOLDER FUSE HOLDER
Baxi part no. 247481
£4.57
505   TERMINAL BLOCK 10 POLES
Baxi part no. 720754101
£15.21
506   TIMER BRIDGE
Baxi part no. 7213633
£10.42
507   SPARE FACIA HINGE
Baxi part no. 7213595
£10.50
508   ACCESS PLUG - X70
Baxi part no. 7215555
£6.62
509   TIMER COVER WITH HOLE
Baxi part no. 7215556
£12.39
510   FACIA ASSY INC DOOR
Baxi part no. 7213584
£49.44
511   EARTH FASTON 6 CONNECTIONS
Baxi part no. 720755301
£9.54
512   PCB ECOBLUE COMBI 24 KW
Baxi part no. 7223341
£146.79
513   FACIA REAR COVER
Baxi part no. 7213599
£16.02
514   KEYPAD
Baxi part no. 7213581
£11.96
515 Part number 7211868, HMI HMI
Baxi part no. 7211868
£72.10
516   SERVICE ACCESS PLUG
Baxi part no. 7213606
£7.63
517   FACIA SUPPORT
Baxi part no. 7213607
£7.81
