BAXI
105 HE A INSTANT - (Combustion Box)
Appliance Code: 47-075-50

Appliance Diagram


Combustion Box diagram for Baxi 105 HE A InstantClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

200 Part number 5112369, FLUE ADAPTER HE (NO SEALS) FLUE ADAPTER HE (NO SEALS)
Baxi part no. 5112369		 £12.33
201 Part number 5112397, WASHER DIA 60 OUTLET BEND WASHER DIA 60 OUTLET BEND
Baxi part no. 5112397		 £5.88
202 Part number 5112398, WASHER DIA100 OUTER ADAPT SEAL WASHER DIA100 OUTER ADAPT SEAL
Baxi part no. 5112398		 £5.88
203 Part number 5113313, TAP ADAPTER TAP ADAPTER
Baxi part no. 5113313		 £4.57
204 Part number 5113314, O RING O RING
Baxi part no. 5113314		 £3.16
205 Part number 5130555, GASKET ADAPTER GASKET ADAPTER
Baxi part no. 5130555		 £31.69
206 Part number 247731, PLATE BLANKING PLATE BLANKING
Baxi part no. 247731		 £5.88
207   GASKET BLK PLATE
Baxi part no. 5130556		 £20.53
208 Part number 5114766, IGNITOR IGNITOR
Baxi part no. 5114766		 £20.02
209 Part number 5114692, EXPANSION VESSEL 10L EXPANSION VESSEL 10L
Baxi part no. 5114692		 £88.79
211   RES TUBE MT BRKT
Baxi part no. 5130558		 £19.03
212 Part number 5130559, INDUC INDUC
Baxi part no. 5130559		 £33.91
213   SEAL INDUC'N PIPE
Baxi part no. 5130560		 £27.70
214   COMB CHAMB ASSY
Baxi part no. 5130561		 £57.07
215 Part number 5130562, CONDENSATE TRAP BODY CONDENSATE TRAP BODY
Baxi part no. 5130562		 £31.95

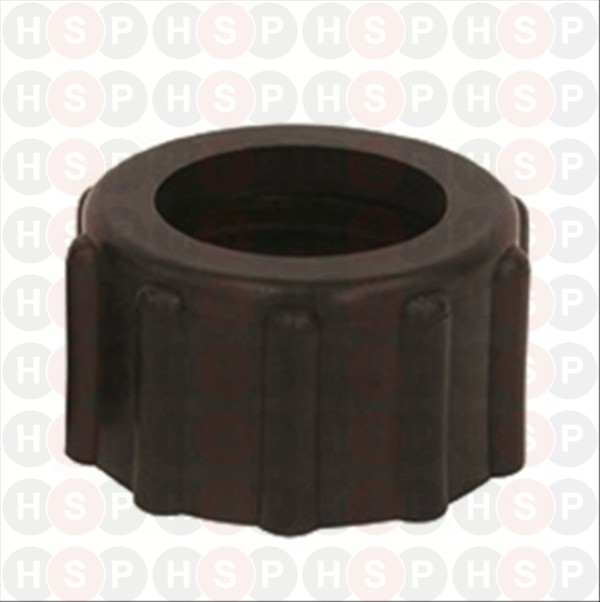

216 Part number 5130563, NUT CONDENSATE NUT CONDENSATE
Baxi part no. 5130563		 £32.30
217 Part number 5130564, SEAL CO'SATE SUMP SEAL CO'SATE SUMP
Baxi part no. 5130564		 £32.02
218 Part number 5118972, CONDENSE SIPHON PLUG ASSEMBLY CONDENSE SIPHON PLUG ASSEMBLY
Baxi part no. 5118972		 £11.16
218   NOW USE 5118972 SPARES KIT COND SIPH PLUG AY
Baxi part no. 5130565
219   FLEX DISCHARGE PIPE
Baxi part no. 5130566		 £34.28
220   PANEL HYDR MNTG
Baxi part no. 5130567		 £40.99
221   COMB BOX FRONT
Baxi part no. 5130568		 £45.66
221 Part number 5122525, FRONT PANEL SEAL FRONT PANEL SEAL
Baxi part no. 5122525		 £30.48
222 Part number 5122525, FRONT PANEL SEAL FRONT PANEL SEAL
Baxi part no. 5122525		 £30.48
225   GROMMET AIR VENT
Baxi part no. 5130569		 £30.06
226 Part number 5130570, AUTO AIR VENT AUTO AIR VENT
Baxi part no. 5130570		 £41.49
227   HEAT EXCHA BRKT
Baxi part no. 5130571		 £20.53
228 Part number 248192, STUD - FRONT PANEL STUD - FRONT PANEL
Baxi part no. 248192		 £3.26
229   SCREW NO8X25 ABPAN POZ SZ
Baxi part no. 612827		 £3.16
230   SCREW NO6X9.5 BPAN POZ SZ#
Baxi part no. 670046		 £3.01
