BAXI
24HE - (Flue)
Appliance Code: 41-077-91

Appliance Diagram

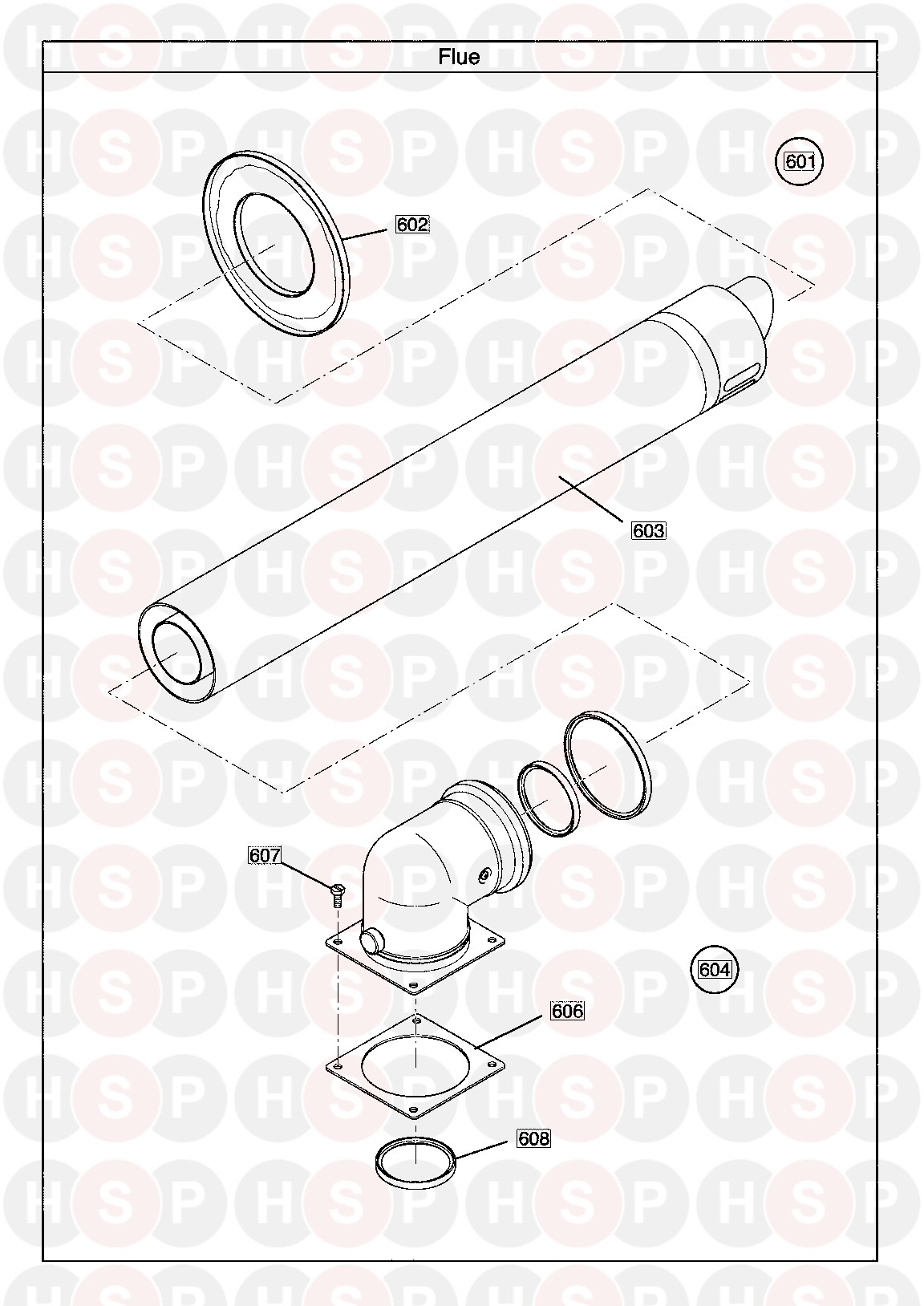

Flue diagram for Baxi 24HEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 236921, KIT - FLUE TERMINAL CONDENSING KIT - FLUE TERMINAL CONDENSING
Baxi part no. 236921
£254.23
0 Part number 241687, ELBOW FLUE 70/110 90 DEG ELBOW FLUE 70/110 90 DEG
Baxi part no. 241687

0 Part number 241689, ELBOW FLUE 70/110 45 DEG ELBOW FLUE 70/110 45 DEG
Baxi part no. 241689

0 Part number 241692, PIPE FLUE 70/110 x 250 LG PIPE FLUE 70/110 X 250 LG
Baxi part no. 241692

0 Part number 241694, OBSOLETE PIPE FLUE 70/110 x 500 LG OBSOLETE PIPE FLUE 70/110 X 500 LG
Baxi part no. 241694

0 Part number 241695, PIPE FLUE 70/110 x 1000 LG PIPE FLUE 70/110 X 1000 LG
Baxi part no. 241695
£96.36
0 Part number 242757, KIT BOILER CONNECTION TWIN KIT BOILER CONNECTION TWIN
Baxi part no. 242757

0 Part number 242802, KIT FLUE TERMINAL VERTICAL KIT FLUE TERMINAL VERTICAL
Baxi part no. 242802

0 Part number 243013BAX, KIT WALL TERMINAL 70/110 KIT WALL TERMINAL 70/110
Baxi part no. 243013BAX
£115.60
0 Part number 243014BAX, KIT CLAMP 110 KIT CLAMP 110
Baxi part no. 243014BAX

0 Part number 243015, LEAD TILE COLLAR LEAD TILE COLLAR
Baxi part no. 243015
£107.14
0 Part number 243016BAX, FLAT ROOF FLASHING FLAT ROOF FLASHING
Baxi part no. 243016BAX
£29.33
0 Part number 243131, KIT COVER PLATES -HORIZ FLUES KIT COVER PLATES -HORIZ FLUES
Baxi part no. 243131
£22.95
0 Part number 246135, OBSOLETE 250mm STRAIGHT EXTENSION KIT OBSOLETE 250MM STRAIGHT EXTENSION KIT
Baxi part no. 246135

0 Part number 246136, 500mm STRAIGHT EXTENSION KIT 500MM STRAIGHT EXTENSION KIT
Baxi part no. 246136

0 Part number 246137, 1000mm STRAIGHT EXTENSION KIT 1000MM STRAIGHT EXTENSION KIT
Baxi part no. 246137

0   OBSOLETE 45 DEGREES BEND KIT
Baxi part no. 246138

0   OBSOLETE 90 DEGREES BEND KIT
Baxi part no. 246139

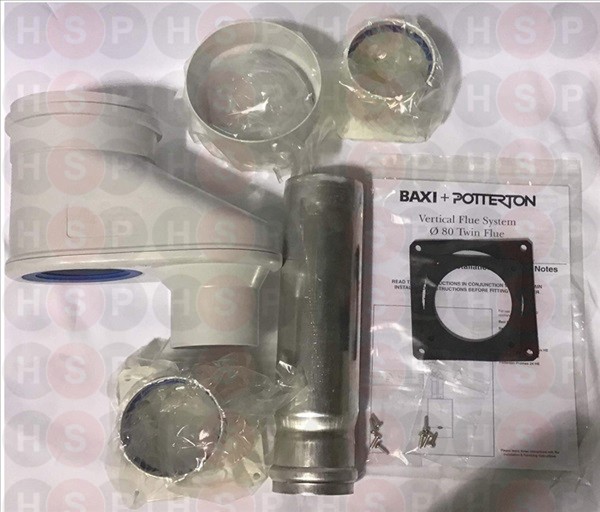

0 Part number 5106888, VERTICAL FLUE ADAPTER VERTICAL FLUE ADAPTER
Baxi part no. 5106888
£204.27
0 Part number 5121561, 80DIA 135DEG FLUE BEND WHT x4 80DIA 135DEG FLUE BEND WHT X4
Baxi part no. 5121561
£137.95
0   OBSOLETE PIPE CLAMP 80MM DIA
Baxi part no. 238684

0 Part number 5111081, Kit Pipe Support 80mm dia pair KIT PIPE SUPPORT 80MM DIA PAIR
Baxi part no. 5111081

601 Part number 236921, KIT - FLUE TERMINAL CONDENSING KIT - FLUE TERMINAL CONDENSING
Baxi part no. 236921
£254.23
602 Part number 241737, Trim Flue TRIM FLUE
Baxi part no. 241737
£6.28
603 Part number 243013BAX, KIT WALL TERMINAL 70/110 KIT WALL TERMINAL 70/110
Baxi part no. 243013BAX
£115.60
604 Part number 240181, KIT - FLUE ELBOW BOILER KIT - FLUE ELBOW BOILER
Baxi part no. 240181
£153.65
605   OBSOLETE FLUE ELBOW SEALING RING
Baxi part no. 244759

606 Part number 241577, GASKET FLUE GASKET FLUE
Baxi part no. 241577
£13.48
606 Part number 244757, NOW USE 241577 FLUE GASKET NOW USE 241577 FLUE GASKET
Baxi part no. 244757

607 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549
£3.12
608 Part number 237259, SEAL - FLUE SEAL - FLUE
Baxi part no. 237259
£5.88
609 Part number 5108432, SAMPLING POINT COVER SAMPLING POINT COVER
Baxi part no. 5108432
£19.21
