VAILLANT
VIH CR 150/4 1999-2003 (305806) - (Exploded View)
Appliance Code: VIH CR 150-4

Appliance Diagram

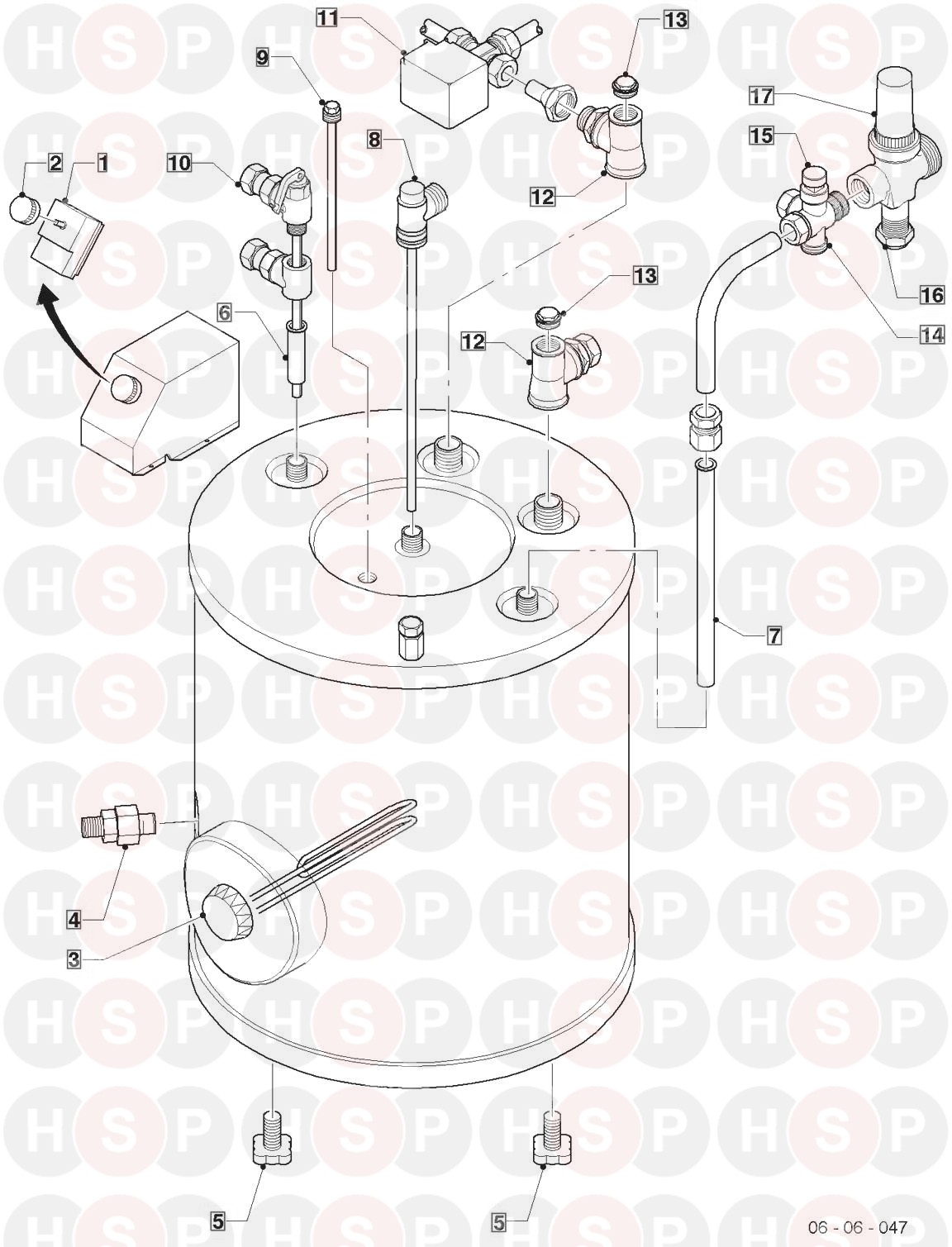

Exploded View diagram for Vaillant VIH CR 150/4 1999-2003 (305806)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 101819, thermostat THERMOSTAT
Vaillant part no. 101819
£48.14
2 Part number 114261, thermostat knob THERMOSTAT KNOB
Vaillant part no. 114261

2 Part number 114297, thermostat knob THERMOSTAT KNOB
Vaillant part no. 114297

3 Part number 066830, immersion heater IMMERSION HEATER
Vaillant part no. 066830

4 Part number 082229, Drain cock DRAIN COCK
Vaillant part no. 082229
£14.81
5 Part number 0020218158, Foot FOOT
Vaillant part no. 0020218158
£6.53
6 Part number 193104, Tube (L=95, D=18) TUBE (L=95, D=18)
Vaillant part no. 193104

7 Part number 193039, tube (L=850 mm, D=18 mm) TUBE (L=850 MM, D=18 MM)
Vaillant part no. 193039

8 Part number 163018, secondary return connection SECONDARY RETURN CONNECTION
Vaillant part no. 163018

9   ANODE (G1X26X742)
Vaillant part no. 295853

10 Part number 014610, NOW USE 190757 temperature and pressure relief va NOW USE 190757 TEMPERATURE AND PRESSURE RELIEF VA
Vaillant part no. 014610

10 Part number 190757, Temperature and Pressure relief valve TEMPERATURE AND PRESSURE RELIEF VALVE
Vaillant part no. 190757
£149.10
11 Part number 050734, Valve 3-port VALVE 3-PORT
Vaillant part no. 050734

11 Part number 203930, NOW USE 050734 valve cpl. 3-port NOW USE 050734 VALVE CPL. 3-PORT
Vaillant part no. 203930

12   T-PIECE (RP 1 X RP 1 X RP 1/2)
Vaillant part no. 492109
£5.55
13   DE-AERATION SCREW
Vaillant part no. 177507

14 Part number 149210, Pressure relief valve PRESSURE RELIEF VALVE
Vaillant part no. 149210

14 Part number 150228, NOW USE 149210 pressure relief valve, cpl. NOW USE 149210 PRESSURE RELIEF VALVE, CPL.
Vaillant part no. 150228

15 Part number 190709, pressure limiting valve inset PRESSURE LIMITING VALVE INSET
Vaillant part no. 190709

16 Part number 149108, NOW USE 149113 pressure reducing valve cpl. NOW USE 149113 PRESSURE REDUCING VALVE CPL.
Vaillant part no. 149108

16 Part number 149113, Pressure reducing valve PRESSURE REDUCING VALVE
Vaillant part no. 149113
£211.43
17 Part number 149109, pressure reducing valve cartridge PRESSURE REDUCING VALVE CARTRIDGE
Vaillant part no. 149109
