OCEAN STYLE 80FF - (Boiler Exploded View)
Appliance Code: 47-532-02

Appliance Diagram


Boiler Exploded View diagram for Alpha Ocean Style 80FFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

17   MAIN BURNER INJECTOR(NG)D=1.18 (STYLE)
Alpha part no. 6.5209150		 £5.04
31   MAIN BURNER INJECTOR(NG)D=1.18 (STYLE)
Alpha part no. 6.5209150		 £5.04
32 Part number 6.5615071, GAS VALVE (NG) (V4600Q)(STYLE) GAS VALVE (NG) (V4600Q)(STYLE)
Alpha part no. 6.5615071		 £269.27
33 Part number 6.5604732, OBSOLETE PILOT BURNER (STYLE) OBSOLETE PILOT BURNER (STYLE)
Alpha part no. 6.5604732
34 Part number 6.5201550, OBSOLETE PILOT INJECTOR (NG) D=0.27 OBSOLETE PILOT INJECTOR (NG) D=0.27
Alpha part no. 6.5201550
35   OBSOLETE ELECTRODE LEAD 450MM (STYLE)
Alpha part no. 6.8413451
36 Part number 6.8420930, SPARK ELECTRODE-STY/240P/280P SPARK ELECTRODE-STY/240P/280P
Alpha part no. 6.8420930		 £16.81
37 Part number 1.015610, PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY) PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY)
Alpha part no. 1.015610		 £141.31
38 Part number 6.1000710, SEAL KIT 710 (3 PORT VALVE) (STYLE) SEAL KIT 710 (3 PORT VALVE) (STYLE)
Alpha part no. 6.1000710		 £35.97
39 Part number 1.022593, OBSOLETE FAN ASSEMBLY (240/280/500 ELECTRONIC ) TP OBSOLETE FAN ASSEMBLY (240/280/500 ELECTRONIC ) TP
Alpha part no. 1.022593

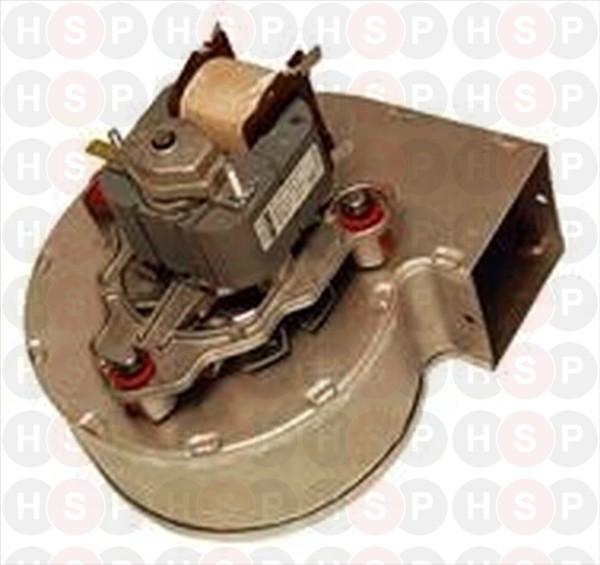

39 Part number 6.5607294, OBSOLETE FAN ASSY (STYLE)-FFB0219-019 OBSOLETE FAN ASSY (STYLE)-FFB0219-019
Alpha part no. 6.5607294
40 Part number 6.1000730, SEAL KIT 730 (FAN/FLUE) (STYLE SEAL KIT 730 (FAN/FLUE) (STYLE
Alpha part no. 6.1000730		 £15.07
42 Part number 6.5616401, HEATING T/STAT KNOB (STYLE FF) HEATING T/STAT KNOB (STYLE FF)
Alpha part no. 6.5616401		 £15.96
45 Part number 6.5614712, LIMIT T/STAT & LEADS (STYLE) LIMIT T/STAT & LEADS (STYLE)
Alpha part no. 6.5614712		 £68.69
46 Part number 6.5614721, THERMOCOUPLE (STYLE FF) THERMOCOUPLE (STYLE FF)
Alpha part no. 6.5614721		 £17.35
47   THERMOCOUPLE CONNECTOR(STYLE)
Alpha part no. 6.5202491
48   OBSOLETE GREEN LED INDICATOR STYLE 80FF
Alpha part no. 6.8421751
50   PILOT TUBE CHAMBER SEAL(STYLE)
Alpha part no. 6.5401652		 £2.99
55 Part number 6.5617551, AIR PRESSURE SWITCH (STYLE FF) (C6065A1010) AIR PRESSURE SWITCH (STYLE FF) (C6065A1010)
Alpha part no. 6.5617551		 £114.20
56 Part number 6.5614801, OBSOLETE IGNITION M OBSOLETE IGNITION M
Alpha part no. 6.5614801
57 Part number 6.5614801, OBSOLETE IGNITION M OBSOLETE IGNITION M
Alpha part no. 6.5614801
58   OBSOLETE WATER FLOW SWITCH & PIPE STYLE
Alpha part no. 6.5635010
60 Part number 6.5610362, OBSOLETE DHW HEAT EXCHANGER (STYLE) OBSOLETE DHW HEAT EXCHANGER (STYLE)
Alpha part no. 6.5610362
62 Part number 6.5617081, MICROSWITCH ASSY(3 PORT VALVE) (STYLE) MICROSWITCH ASSY(3 PORT VALVE) (STYLE)
Alpha part no. 6.5617081		 £56.14
64 Part number 6.5623431, 3 PORT VALVE COMPLETE (STYLE) 3 PORT VALVE COMPLETE (STYLE)
Alpha part no. 6.5623431
66 Part number 6.5618331, SELECTOR KNOB TAP/RAD SYMBOLS (STYLE FF) SELECTOR KNOB TAP/RAD SYMBOLS (STYLE FF)
Alpha part no. 6.5618331		 £16.07
67 Part number 6.5606221, OBSOLETE HEATING EXPANSION VESSEL STYLE OBSOLETE HEATING EXPANSION VESSEL STYLE
Alpha part no. 6.5606221
68 Part number 6.5624241, WATER HAMMER ARRESTOR CALF/525 525040 WATER HAMMER ARRESTOR CALF/525 525040
Alpha part no. 6.5624241		 £74.36
70 Part number 6.5617441A, H/EX 6.5617451 & SEAL KIT 715 H/EX 6.5617451 & SEAL KIT 715
Alpha part no. 6.5617441A		 £335.38
70 Part number 6.5617451, NOW USE 6.5617441A PRIMARY HEAT EXCHANGER (STYLE) NOW USE 6.5617441A PRIMARY HEAT EXCHANGER (STYLE)
Alpha part no. 6.5617451
73   INSULATION SET (COMB CHAMBER)
Alpha part no. 6.5614731
77   INSULATION SET (COMB CHAMBER)
Alpha part no. 6.5614731
81 Part number 6.1000725, SEAL KIT 725 (GAS COMPLETE) (STYLE) SEAL KIT 725 (GAS COMPLETE) (STYLE)
Alpha part no. 6.1000725		 £10.60
82 Part number 6.1000730, SEAL KIT 730 (FAN/FLUE) (STYLE SEAL KIT 730 (FAN/FLUE) (STYLE
Alpha part no. 6.1000730		 £15.07
84 Part number 6.1000715, SEAL KIT 715 (W/F/S-PRI HT EX) (STYLE) SEAL KIT 715 (W/F/S-PRI HT EX) (STYLE)
Alpha part no. 6.1000715
85 Part number 6.8922330, PRESSURE GAUGE (240/280/500) (STYLE FF) PRESSURE GAUGE (240/280/500) (STYLE FF)
Alpha part no. 6.8922330
87   PILOT TUBE COMPLETE (STYLE)
Alpha part no. 6.5614851		 £27.78
91 Part number 6.5600731, OBSOLETE AUTOMATIC AIR VENT (STYLE) OBSOLETE AUTOMATIC AIR VENT (STYLE)
Alpha part no. 6.5600731
92   OBSOLETE ROOM SEALED FRONT PANEL(STYLE)
Alpha part no. 6.5607482
93   PILOT GLASS RETAINING PLATE
Alpha part no. 6.5103360
94   PILOT GLASS(STYLE/240/280/500)
Alpha part no. 6.5203930
95 Part number 6.5401610, PILOT GLASS GASKET(STYLE) PILOT GLASS GASKET(STYLE)
Alpha part no. 6.5401610		 £9.31
97   OBSOLETE REAR SUPPORT FRAME
Alpha part no. 6.5619031
98   OBSOLETE BOILER CASE BRACKET
Alpha part no. 6.5105741
100   OBSOLETE PIPE-MAINS INLET (STYLE)
Alpha part no. 6.5610941		 £37.66
101   BRASS CAP 1/2" (STYLE)
Alpha part no. 6.5201351		 £8.36
102   OBSOLETE TOP PANEL ROOM SEALED CHAMBER
Alpha part no. 6.5613911
103   CONTROL COVER R/H/S (STYLE)
Alpha part no. 6.5615352		 £19.54
103   OBSOLETE CONTROL COVER - LEFT HAND
Alpha part no. 6.5615362
105   PRESSURE TUBE(300MM)(STYLE)
Alpha part no. 6.5202271		 £11.72
106 Part number 6.5630531, NOW USE 6.5630531A 3 PORT DIVERTER BODY (STYLE) NOW USE 6.5630531A 3 PORT DIVERTER BODY (STYLE)
Alpha part no. 6.5630531
106 Part number 6.5630531A, DIVERTER BODY AND SEAL KIT 710 DIVERTER BODY AND SEAL KIT 710
Alpha part no. 6.5630531A		 £132.72
107   OBSOLETE PIPE-HEATING EXPANSION VESSEL
Alpha part no. 6.5607391
108   OBSOLETE CONTROL PANEL
Alpha part no. 6.5622132
110 Part number 6.5623410, DOMESTIC PRESSURE SENSOR-STYLE DOMESTIC PRESSURE SENSOR-STYLE
Alpha part no. 6.5623410		 £101.84
111   OBSOLETE FLOW SWITCH CONNECTION PIPE
Alpha part no. 6.5610161
112   CONTROL BOX (STYLE FF)
Alpha part no. 6.5622332		 £233.12
116   SCREW-FRONT ROOM SEALED PANEL
Alpha part no. 6.8100872		 £3.92
117   OBSOLETE VALVE SUPPORT TRAVERSE
Alpha part no. 6.5610663
120 Part number 6.1000710, SEAL KIT 710 (3 PORT VALVE) (STYLE) SEAL KIT 710 (3 PORT VALVE) (STYLE)
Alpha part no. 6.1000710		 £35.97
121 Part number 6.1000710, SEAL KIT 710 (3 PORT VALVE) (STYLE) SEAL KIT 710 (3 PORT VALVE) (STYLE)
Alpha part no. 6.1000710		 £35.97
122 Part number 6.1000710, SEAL KIT 710 (3 PORT VALVE) (STYLE) SEAL KIT 710 (3 PORT VALVE) (STYLE)
Alpha part no. 6.1000710		 £35.97
123 Part number 6.5639230, FLUE VENTURI-NICKEL PLATED (STYLE/240/280/500E) FLUE VENTURI-NICKEL PLATED (STYLE/240/280/500E)
Alpha part no. 6.5639230		 £21.36
127   SCREW HTG STAT/EXT BAR
Alpha part no. 6.8100611		 £3.27
129   M5 X 10 BOLT
Alpha part no. 6.8101181		 £3.80
130   OBSOLETE SCREW - FAN MOUNTING PLATE
Alpha part no. 6.8142431
131   OBSOLETE SCREW - REAR FRAME/CROSS BAR
Alpha part no. 6.8100572
132   OBSOLETE PIPE RETAINING CLIP 3 PRT VLVE
Alpha part no. 6.5101841		 £5.37
133 Part number 6.5610751, OBSOLETE PIPE-RETAINING PLATE (RIGHT) OBSOLETE PIPE-RETAINING PLATE (RIGHT)
Alpha part no. 6.5610751
134 Part number 6.1000725, SEAL KIT 725 (GAS COMPLETE) (STYLE) SEAL KIT 725 (GAS COMPLETE) (STYLE)
Alpha part no. 6.1000725		 £10.60
135   OBSOLETE COMBUSTION CHAMBER FLUE HOOD
Alpha part no. 6.5613921
136 Part number 6.1000700, SEAL KIT 700 (WATER COMPLETE) (STYLE) SEAL KIT 700 (WATER COMPLETE) (STYLE)
Alpha part no. 6.1000700		 £50.61
137   OBSOLETE PIPE-GAS INLET/GAS VALVE
Alpha part no. 6.5615441
138   OBSOLETE RIGHT HAND PANEL R/S CHAMBER
Alpha part no. 6.5615201
139   OBSOLETE LEFT HAND REAR SIDE CHAMBER PANEL
Alpha part no. 6.5615191
140   OBSOLETE COMBUSTION CHAMBER FRONT PANEL
Alpha part no. 6.5102412
141   INSULATION SET (COMB CHAMBER)
Alpha part no. 6.5614731
142   OBSOLETE GAS VALVE KNOB - SHAFT
Alpha part no. 6.5400861
143   GAS VALVE KNOB (WHITE)(STYLE)
Alpha part no. 6.5616411		 £15.96
144 Part number 6.1000700, SEAL KIT 700 (WATER COMPLETE) (STYLE) SEAL KIT 700 (WATER COMPLETE) (STYLE)
Alpha part no. 6.1000700		 £50.61
145   OBSOLETE PIPE-RETAINING PLATE (LEFT)
Alpha part no. 6.5610741
146   OBSOLETE PIPE-3PRT / DHW EXCH(STYLE FF)
Alpha part no. 6.5622671
148   CLOCK BLANKING PLATE (STYLE)
Alpha part no. 6.5622121		 £9.70
151   PLASTIC INST/COVER (STYLE FF)
Alpha part no. 6.5622424		 £26.46
152   OBSOLETE WHITE UNDERSIDE GUARD
Alpha part no. 6.5109031
153   OBSOLETE LOWER PLASTIC PANEL HINGE
Alpha part no. 6.5401901
155   ISO VALVE RETAINING CLIP 1/2
Alpha part no. 6.5102701		 £4.15
170   PIPE-GAS VALVE/MANIFOLD(STYLE)
Alpha part no. 6.5615241		 £37.46
172   PIPE-D H W OUTLET (STYLE)
Alpha part no. 6.5615311		 £38.94
173   PIPE-PRIMARY RETURN UPPER (STYLE FF ONLY)
Alpha part no. 6.5617251		 £45.23
174   OBSOLETE PIPE-HEATING RETURN (STYLE)
Alpha part no. 6.5608363
175   OBSOLETE FAN SUPPORT FLANGE (TOP)
Alpha part no. 6.5204002
176   OBSOLETE FAN SUPPORT FLANGE - SIDE
Alpha part no. 6.5103583
177   OBSOLETE FLUE TURRET
Alpha part no. 6.5622591
178   NOW USE 6.5615291A PIPE-PRIMARY FLOW (STYLE FF)
Alpha part no. 6.5615291
178   PIPE-P/FLOW & SEAL KIT 705
Alpha part no. 6.5615291A		 £55.16
179   OBSOLETE PIPE-HEATING FLOW (STYLE FF)
Alpha part no. 6.5605911
180   OBSOLETE PIPE-DHW EXCH / 3 PORT VLV
Alpha part no. 6.5203191
182   OBSOLETE SCREW - SPECIAL
Alpha part no. 6.5101181
183   OBSOLETE FLUE PLASTIC LOCKING NUT
Alpha part no. 6.5401732
184   OBSOLETE ALUMINIUM FLUE DUCT
Alpha part no. 6.5616011
185   OBSOLETE PLASTIC OUTER FLUE DUCT
Alpha part no. 6.5403591
186   SCREW TERMINAL RET
Alpha part no. 6.8100742		 £5.01
187   OBSOLETE SEALING COLLAR
Alpha part no. 6.1000350
189   OBSOLETE FLUE TERMINAL(HORIZONTAL)STYLE
Alpha part no. 6.5206341
