VAILLANT
ECOTEC PLUS 412 VU 126/6-5 OV 2015-2016 - (08c Hydraulic Connections)
Appliance Code: 41-044-71

Appliance Diagram

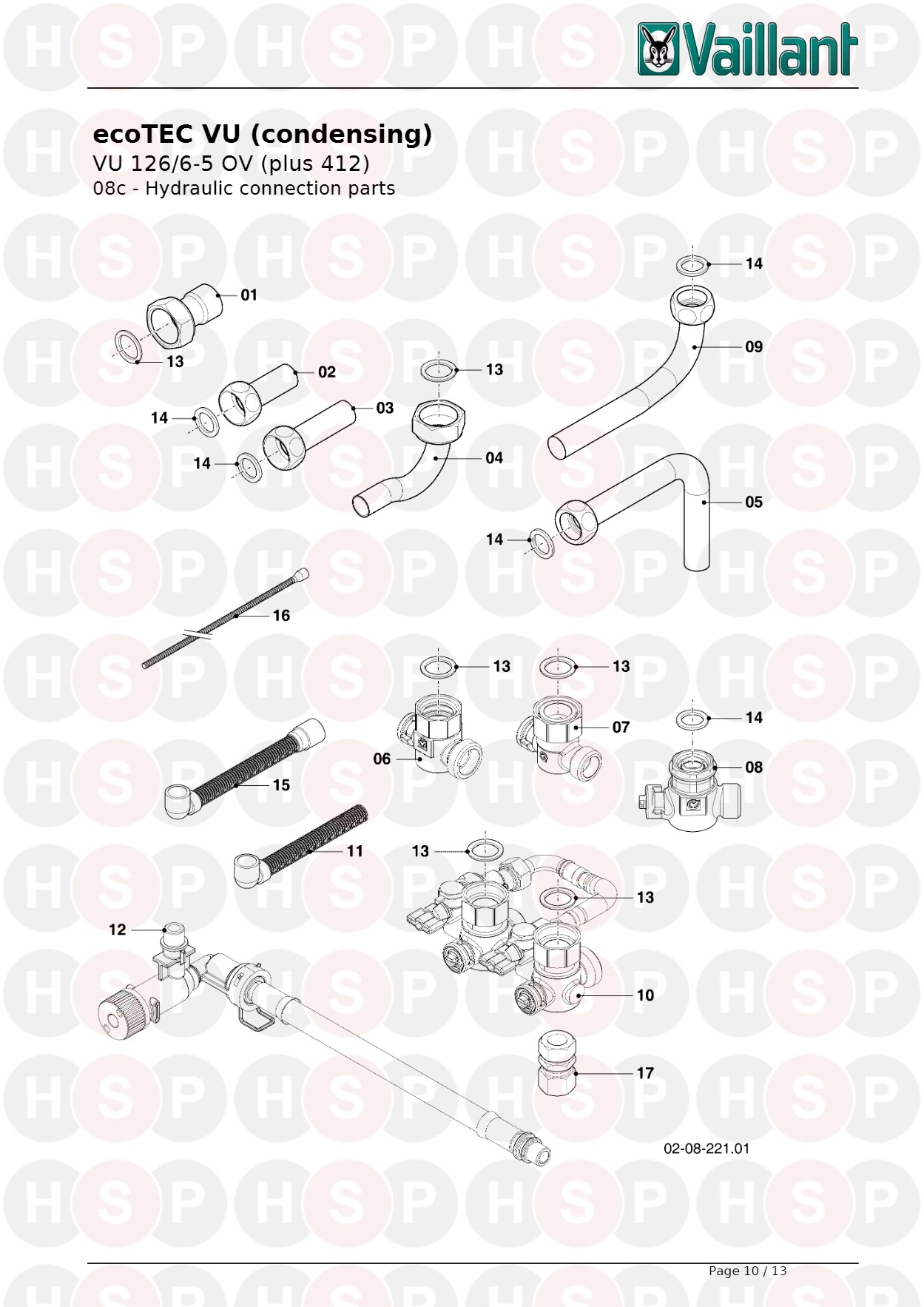

08c Hydraulic Connections diagram for Vaillant Ecotec Plus 412 VU 126/6-5 Ov 2015-2016Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5 Part number 0020211100, Gas pipe GAS PIPE
Vaillant part no. 0020211100		 £9.41
8 Part number 0020211099, Gas valve GAS VALVE
Vaillant part no. 0020211099		 £38.14
13 Part number 0020073878, Gasket, G 3/4 (PK10) GASKET, G 3/4 (PK10)
Vaillant part no. 0020073878		 £6.53
14 Part number 108588, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 108588		 £6.71
15 Part number 0020211449, Hose HOSE
Vaillant part no. 0020211449		 £6.71
17 Part number 0020236296, Compression fitting, 22 mm COMPRESSION FITTING, 22 MM
Vaillant part no. 0020236296		 £30.38
