VAILLANT
HOME COMBI 25 -A - (08 Hydraulic)
Appliance Code: 47-044-62

Appliance Diagram


08 Hydraulic diagram for Vaillant Home Combi 25 -AClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020231141, Pump motor PUMP MOTOR
Vaillant part no. 0020231141		 £243.72
2 Part number 0020231147, Housing, pump HOUSING, PUMP
Vaillant part no. 0020231147		 £57.74
3 Part number 104521, NOW USE 0010033857 automatic air vent NOW USE 0010033857 AUTOMATIC AIR VENT
Vaillant part no. 104521
3 Part number 0010033857, Automatic air vent AUTOMATIC AIR VENT
Vaillant part no. 0010033857		 £18.87
4 Part number 193535, Gasket, C-Type (PK10) GASKET, C-TYPE (PK10)
Vaillant part no. 193535		 £10.91
5 Part number 178969, Gasket, C-Type (PK10) GASKET, C-TYPE (PK10)
Vaillant part no. 178969		 £9.12
6 Part number 0020231148, Screw, pump (PK10) SCREW, PUMP (PK10)
Vaillant part no. 0020231148		 £6.53

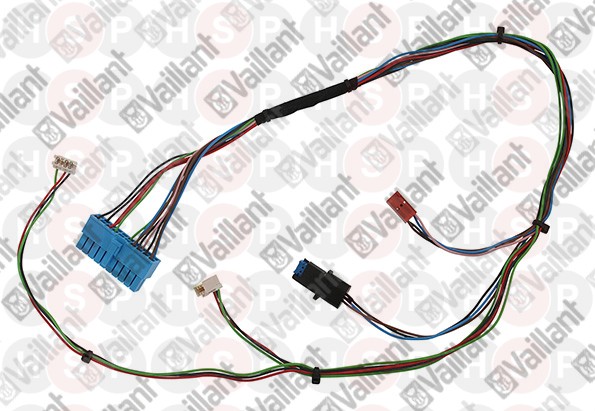

7 Part number 0020231145, Wiring harness WIRING HARNESS
Vaillant part no. 0020231145		 £7.43
8 Part number 0020211941, Harness, combi HARNESS, COMBI
Vaillant part no. 0020211941		 £14.92
9 Part number 0020213145, Hydroblock HYDROBLOCK
Vaillant part no. 0020213145		 £13.90
10 Part number 0020213146, Diverter valve DIVERTER VALVE
Vaillant part no. 0020213146		 £38.34
11 Part number 0020213147, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020213147		 £6.53
12 Part number 0020166927, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020166927		 £6.71
13 Part number 0020213148, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020213148		 £6.53
14 Part number 178980, bypass BYPASS
Vaillant part no. 178980		 £25.11
15 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165		 £6.69
16 Part number 0020107694, Clip, (PK5) CLIP, (PK5)
Vaillant part no. 0020107694		 £7.03
17 Part number 0020211942, Heat exchanger, 12 plates HEAT EXCHANGER, 12 PLATES
Vaillant part no. 0020211942		 £76.06
18 Part number 0020160125, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020160125		 £6.71
19 Part number 178985, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Vaillant part no. 178985		 £15.06
20 Part number 0020213151, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020213151		 £6.53
21 Part number 0020211945, Flow sensor FLOW SENSOR
Vaillant part no. 0020211945		 £25.55
22 Part number 0020231123, Plug, flow sensor PLUG, FLOW SENSOR
Vaillant part no. 0020231123		 £6.53
23 Part number 178993, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 178993		 £6.69
24 Part number 0020174521, Clip (PK10) CLIP (PK10)
Vaillant part no. 0020174521		 £6.71
25 Part number 0020213152, Hydroplate, R-DIN outlet HYDROPLATE, R-DIN OUTLET
Vaillant part no. 0020213152		 £31.43
26 Part number 179030, filter FILTER
Vaillant part no. 179030		 £6.69
27 Part number 0020213153, Tube, by-pass TUBE, BY-PASS
Vaillant part no. 0020213153		 £12.59
28 Part number 0020213154, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020213154		 £6.53
29 Part number 0020211944, Tube, pump-SHE TUBE, PUMP-SHE
Vaillant part no. 0020211944		 £7.35
30 Part number 0020211943, Pipe, flow sensor PIPE, FLOW SENSOR
Vaillant part no. 0020211943		 £29.76
31 Part number 0020213157, Nut, (PK3) NUT, (PK3)
Vaillant part no. 0020213157		 £6.53
32 Part number 0020213158, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020213158		 £6.53
33 Part number 0020213159, Support bracket SUPPORT BRACKET
Vaillant part no. 0020213159		 £6.53
34 Part number 0020213160, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020213160		 £6.53
35 Part number 0020213161, Nipple, G3/4 brass, HW NIPPLE, G3/4 BRASS, HW
Vaillant part no. 0020213161		 £6.53
36 Part number 108602, O-ring (PK10) O-RING (PK10)
Vaillant part no. 108602		 £6.71
37 Part number 0020213162, Nipple, G3/4, DW NIPPLE, G3/4, DW
Vaillant part no. 0020213162		 £6.53
38 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992		 £8.18
39 Part number 074514, Filter FILTER
Vaillant part no. 074514		 £6.66
40 Part number 0020213163, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020213163		 £6.53
41 Part number 0020213894, Plug PLUG
Vaillant part no. 0020213894		 £6.53
42 Part number 0020231126, Flow limiter, 10L/min (PK10) FLOW LIMITER, 10L/MIN (PK10)
Vaillant part no. 0020231126		 £20.18
43 Part number 0020231149, Hose HOSE
Vaillant part no. 0020231149		 £6.53
