WORCESTER
GREENSTAR 18 I SYSTEM ERP - (Casing)
Appliance Code: 41-406-27

Appliance Diagram


Casing diagram for Worcester Greenstar 18 i System ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 87161065170, COVER - INSPECTION & GASKET COVER - INSPECTION & GASKET
Worcester part no. 87161065170		 £8.37
3 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
4   OUTER_CASE ASSEMBLY
Worcester part no. 8716117024		 £80.03
5 Part number 8716117026, FLAP ASSEMBLY FLAP ASSEMBLY
Worcester part no. 8716117026		 £24.44
6 Part number 29142113020, SCREW OVAL-HEAD B4X10-ST-H SCREW OVAL-HEAD B4X10-ST-H
Worcester part no. 29142113020		 £1.92

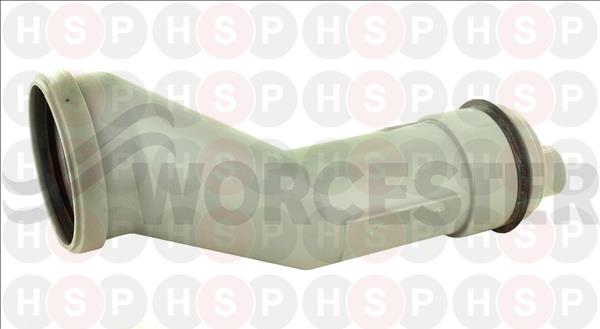

7   FLUE PIPE LOWER
Worcester part no. 8716117021		 £9.59
8 Part number 8716117020, FLUE TUBE FLUE TUBE
Worcester part no. 8716117020		 £26.46
9   SEAL EXHAUST (1X)
Worcester part no. 87161160700		 £3.00
9 Part number 87110043210, NOW USE 8737711102 SEAL EXAUST 59DIA (10X) NOW USE 8737711102 SEAL EXAUST 59DIA (10X)
Worcester part no. 87110043210
9 Part number 8737711102, SEAL EXHAUST 59DIA (x2) SEAL EXHAUST 59DIA (X2)
Worcester part no. 8737711102		 £2.95
10 Part number 87106090150, NUT (10X) NUT (10X)
Worcester part no. 87106090150		 £2.84
11 Part number 87186824540, SUPPORT UPPER FLUE SUPPORT UPPER FLUE
Worcester part no. 87186824540		 £4.38
12 Part number 8716117022, EXPANSION_VESSEL MOUNTING EXPANSION_VESSEL MOUNTING
Worcester part no. 8716117022		 £2.95
13 Part number 8716117023, EXPANSION_VESSEL EXPANSION_VESSEL
Worcester part no. 8716117023		 £77.88
14   PIPE EXPANSION VESSEL
Worcester part no. 8716117032		 £14.22
15   CLIP CAPILLARY GUIDE
Worcester part no. 8716117033		 £0.79
16 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
16 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
17 Part number 8716117028, SCREW 8X1/2 ZC PZFL TYPE B S/TAP DOG TIP SCREW 8X1/2 ZC PZFL TYPE B S/TAP DOG TIP
Worcester part no. 8716117028		 £1.39
18 Part number T00111155A0, SEAL SEAL
Worcester part no. T00111155A0		 £3.36
19 Part number 87161068080, BADGE BADGE
Worcester part no. 87161068080		 £7.60
20 Part number 8716117030, PANEL BOTTOM PANEL BOTTOM
Worcester part no. 8716117030		 £16.71
21   CLIP RETAINING HINGE
Worcester part no. 8716117031		 £1.84
22 Part number 87161093630, SCREW NO.10 X 20 HEX FL HD POZI ZP AFTER FD 305 SCREW NO.10 X 20 HEX FL HD POZI ZP AFTER FD 305
Worcester part no. 87161093630		 £2.60
23 Part number 87182242670, DAMPER (2X) after FD455 DAMPER (2X) AFTER FD455
Worcester part no. 87182242670		 £6.57
24 Part number 87161064520, SCREW & WASHER ASSEMBLY M5X30 SCREW & WASHER ASSEMBLY M5X30
Worcester part no. 87161064520		 £2.60
25 Part number 8716117029, HINGE FLAP RH ASSY HINGE FLAP RH ASSY
Worcester part no. 8716117029		 £3.57
26   HINGE FLAP LH ASSY
Worcester part no. 8716117027		 £3.57
27 Part number 8716117726, SYPHON KEY ASSEMBLY SYPHON KEY ASSEMBLY
Worcester part no. 8716117726		 £2.86
