VOKERA
UNICA I36 REV 3 (07/2014) - (Casing Electrics)
Appliance Code: 47-364-16 REV 3

Appliance Diagram

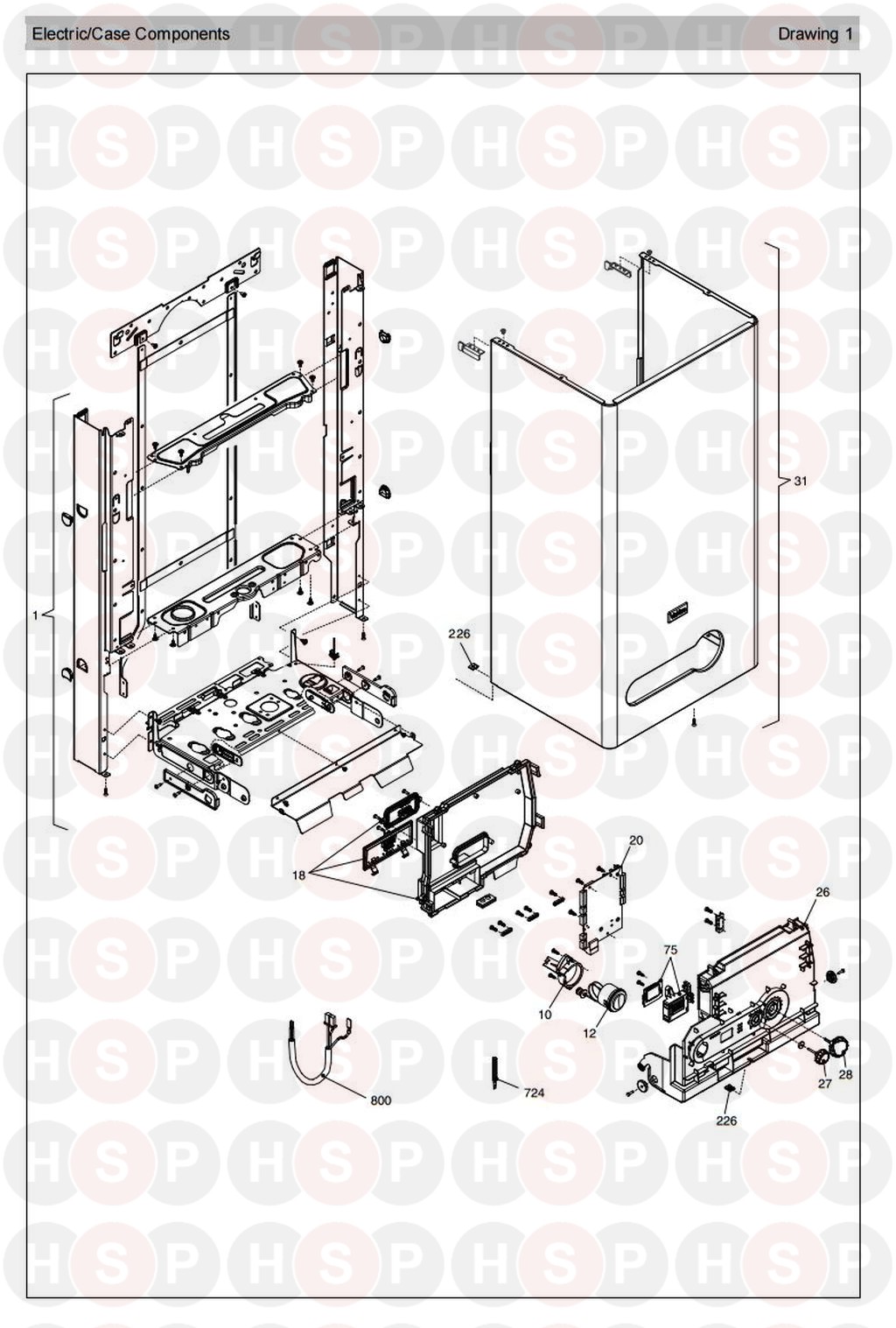

Casing Electrics diagram for Vokera Unica i36 Rev 3 (07/2014)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRAME ASSEMBLY
Vokera part no. 20071911
£122.02
10   WATER GAUGE CARRIER
Vokera part no. 10029105
£7.76
12 Part number 20042115, PRESSURE GAUGE PRESSURE GAUGE
Vokera part no. 20042115
£16.34
18   COVER
Vokera part no. 20072084
£14.17
20 Part number 20069541, Printed circuit board Replaced 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180) PRINTED CIRCUIT BOARD REPLACED 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180)
Vokera part no. 20069541
£152.69
27 Part number 20057330, KNOB KNOB
Vokera part no. 20057330
£4.78
28   KNOB
Vokera part no. 20042114
£2.07
31   CASE ASSEMBLY
Vokera part no. 20071918
£123.08
75   CARD READER KIT
Vokera part no. 20060938
£61.22
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
226 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.21
724   SCREW DRIVER
Vokera part no. 2455
£0.90
800   CN8 - J1 DISPLAY WIRING HARNESS
Vokera part no. 20011449
£4.15
800   CN2 TO WATER PRESSURE SWITCH, FLOW METER & DHW NTC
Vokera part no. 20038366
£32.47
800   CN2 TO M3 MAINS CONNECTION, CLOCK HARNESS, PUMP & GAS VALVE + 3 CORE FLY LEAD
Vokera part no. 20057875
£67.42
800   WIRING HARNESS CN6 TO M6 TO CN5.
Vokera part no. 20067062
£33.96
