VOKERA
SABRE 28 REV 3 (01/08) - (Combustion Components 2)
Appliance Code: 47-094-58

Appliance Diagram


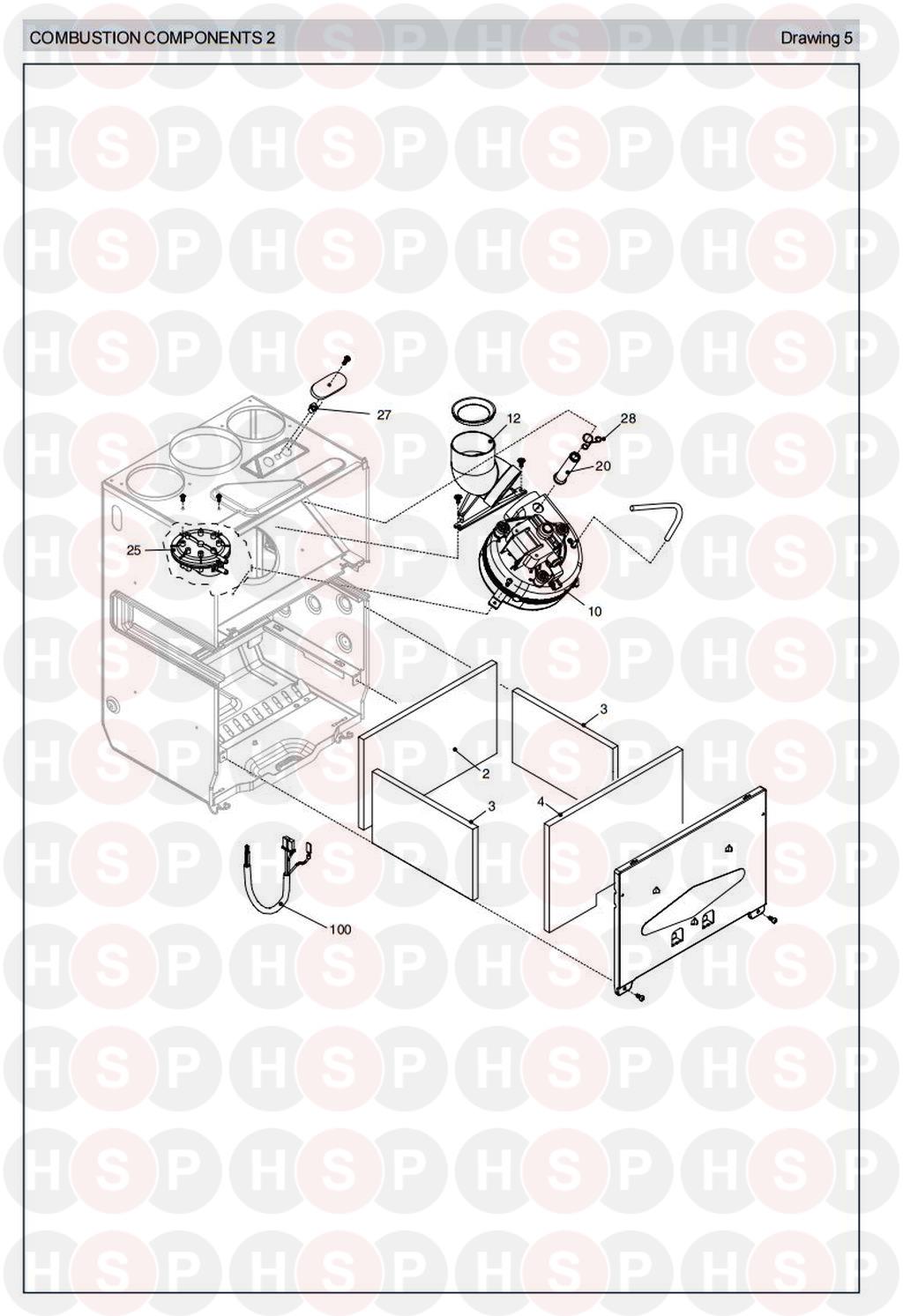

Combustion Components 2 diagram for Vokera Sabre 28 Rev 3 (01/08)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 10023909
£15.04
3 Part number 2231, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 2231
£14.33
4 Part number 10023910, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 10023910
£15.98
10 Part number 10023907, Fan Assembly Includes Venturi FAN ASSEMBLY INCLUDES VENTURI
Vokera part no. 10023907
£144.47
12   FAN CONNECTION
Vokera part no. 10021972
£23.10
20 Part number 10021973, Fumes testing connection pipe FUMES TESTING CONNECTION PIPE
Vokera part no. 10021973
£4.39
25 Part number 10023908, Air Pressure Switch (UP TO SERIAL NO. 20030333J1559999) AIR PRESSURE SWITCH (UP TO SERIAL NO. 20030333J1559999)
Vokera part no. 10023908
£49.87
27 Part number 10020625, Square Plastic Nut underneath Test Plate SQUARE PLASTIC NUT UNDERNEATH TEST PLATE
Vokera part no. 10020625
£2.61
28 Part number 10020626, Stop clip (individual) STOP CLIP (INDIVIDUAL)
Vokera part no. 10020626
£0.69
100   CN8 TO PRIMARY NTC,AIR PRESS SWITCH,HIGH LIMIT STAT & CN4 TO FAN
Vokera part no. 10023838
£55.99
