VOKERA
MYNUTE 24 M - (Combustion Chamber)
Appliance Code: 41-094-41

Appliance Diagram

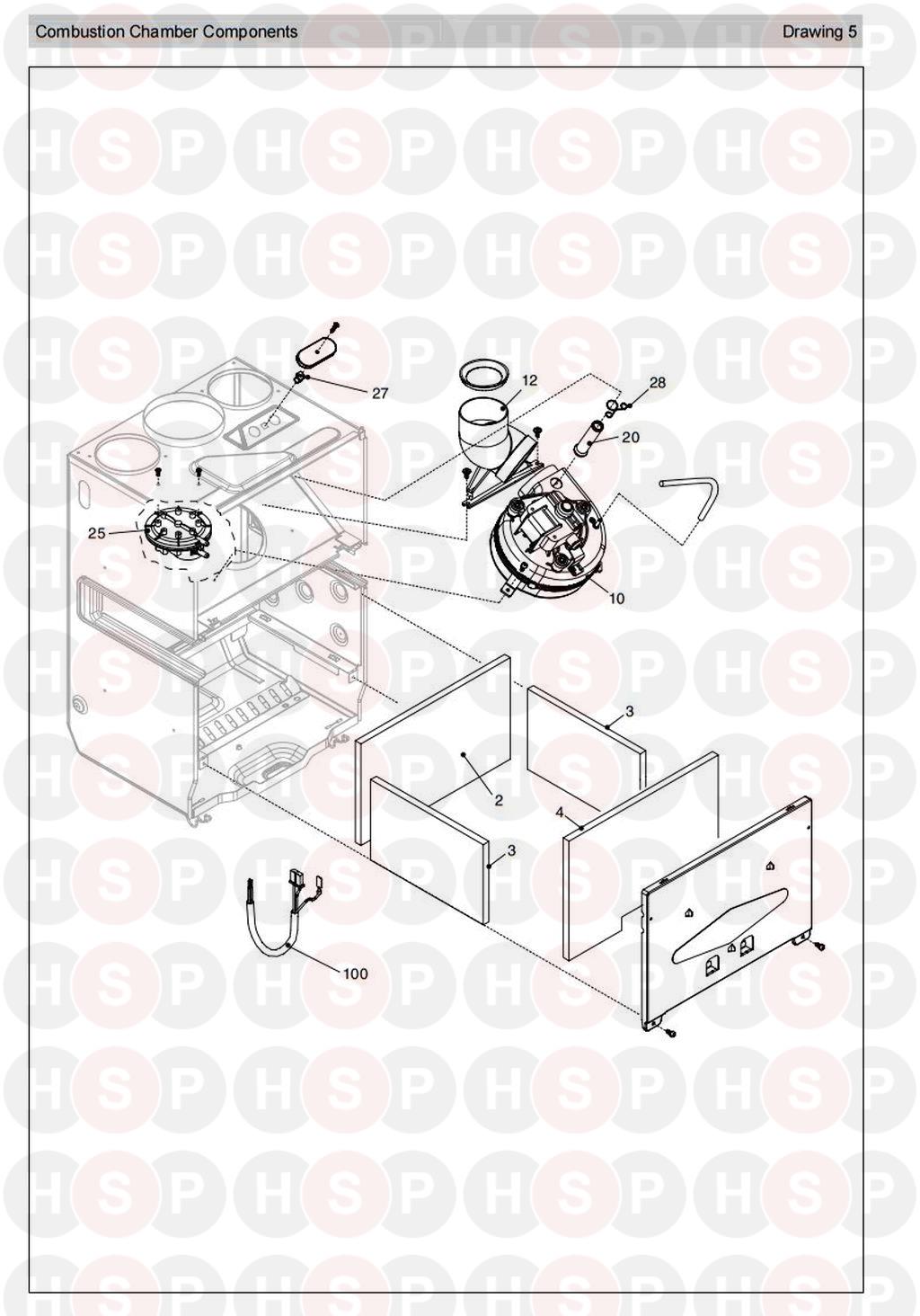

Combustion Chamber diagram for Vokera Mynute 24 MClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 2230, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 2230
£14.54
3 Part number 2231, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 2231
£14.33
4 Part number 2232, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 2232
£15.98
10 Part number 10020793, Fan Assembly (Includes Venturi) FAN ASSEMBLY (INCLUDES VENTURI)
Vokera part no. 10020793
£96.19
12   FAN CONNECTION
Vokera part no. 10021972
£23.10
20 Part number 10021973, Fumes testing connection pipe FUMES TESTING CONNECTION PIPE
Vokera part no. 10021973
£4.39
25 Part number 01005272, Air Pressure Switch Rep 7070/8195/9232 AIR PRESSURE SWITCH REP 7070/8195/9232
Vokera part no. 01005272
£58.89
27 Part number 10020625, Square Plastic Nut underneath Test Plate SQUARE PLASTIC NUT UNDERNEATH TEST PLATE
Vokera part no. 10020625
£2.61
28 Part number 10020626, Stop clip (individual) STOP CLIP (INDIVIDUAL)
Vokera part no. 10020626
£0.69
100   CN8 TO PRIMARY NTC,AIR PRESS SWITCH,HIGH LIMIT STAT & CN4 TO FAN
Vokera part no. 10023838
£55.99
