BAXI
MEGAFLO 2 SYSTEM 32 COMPACT GA - (Wiring Harness)
Appliance Code: 41-075-75

Appliance Diagram

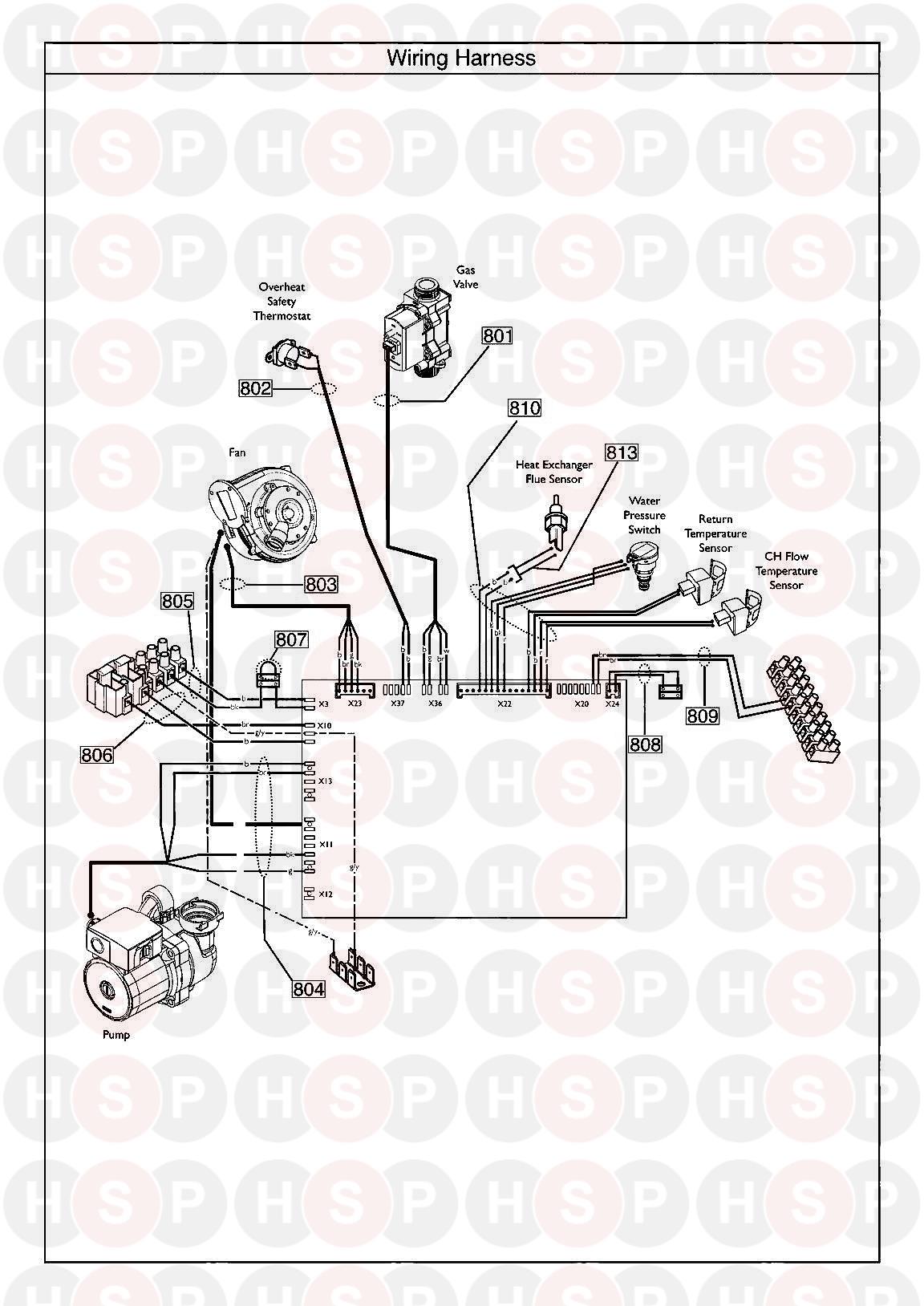

Wiring Harness diagram for Baxi Megaflo 2 System 32 Compact GAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

801 Part number 720756301, WIRING HARNESS GAS VALVE WIRING HARNESS GAS VALVE
Baxi part no. 720756301
£17.26
802   HARNESS SAFETY VALVE
Baxi part no. 720774001
£19.75
803   HARNESS FAN
Baxi part no. 720774201
£22.38
804   HARNESS 3 WAY VALVE-PUMP-FAN
Baxi part no. 720877001
£15.23
805   HARNESS TIMER HIGH VOLTAGE
Baxi part no. 720774601
£19.93
806   HARNESS SUPPLY TO PCB
Baxi part no. 720774801
£18.62
807   BRIDGE CABLE TIMER
Baxi part no. 720775001
£10.65
808   HARNESS TIMER LOW VOLTAGE
Baxi part no. 720775201
£17.88
809   HARNESS NTC EXTERNAL SENSOR
Baxi part no. 720775401
£18.42
810   HARNESS LOW VOLTAGE
Baxi part no. 720855001
£29.83
813   HARNESS NTC
Baxi part no. 720877201
£17.12
