RIELLO
RDB2.2 GREENSTAR HEATSLAVE 25-32 BOSCH 20015255 - (Riello Burner RDB2.2 Greenstar Heatslave 25-32 Bosch)
Appliance Code: 20015255

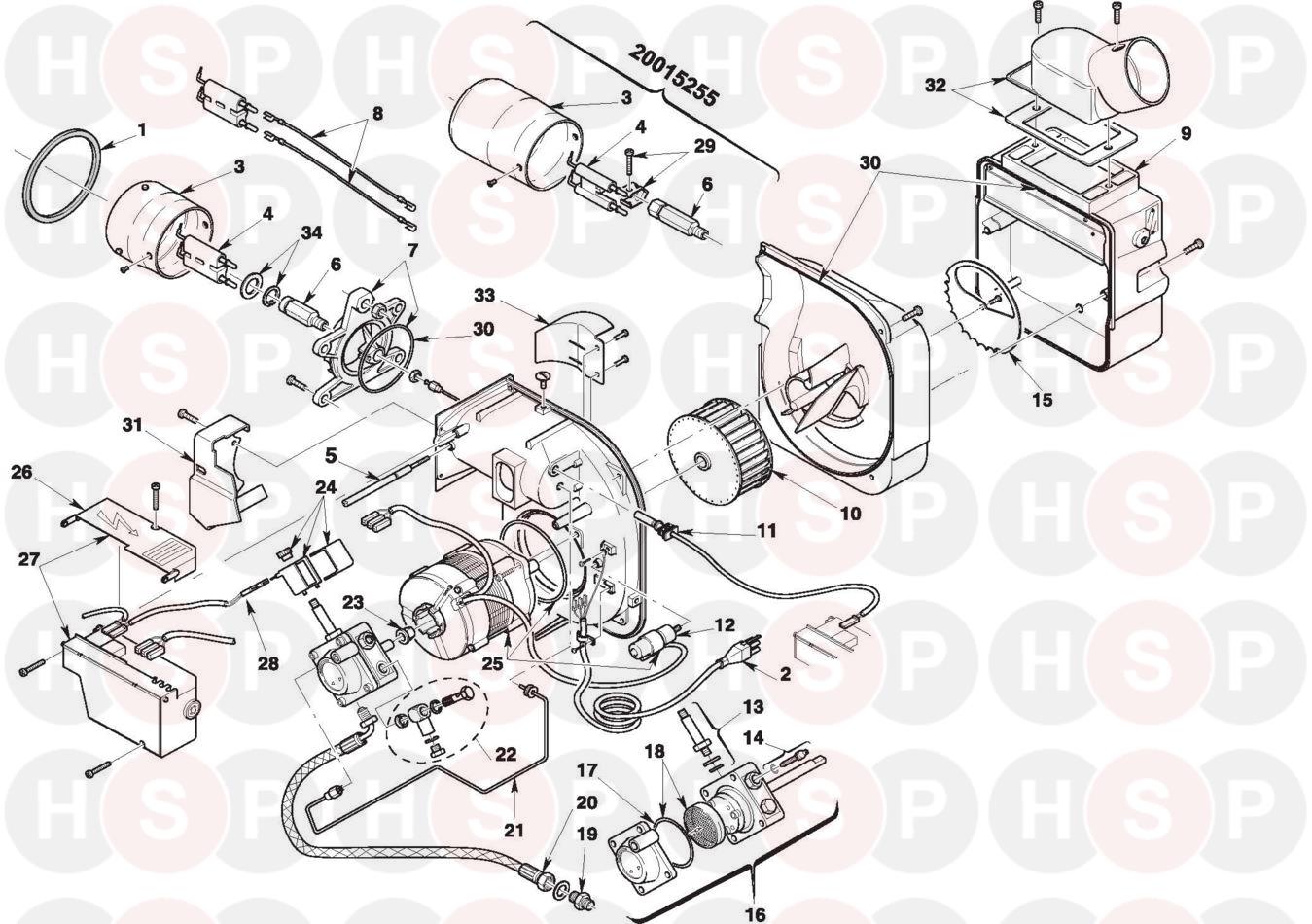

Appliance Diagram


Riello Burner RDB2.2 Greenstar Heatslave 25-32 Bosch diagram for Riello RDB2.2 Greenstar Heatslave 25-32 Bosch 20015255Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3020261, GASKET GASKET
Riello part no. 3020261		 £17.85
3 Part number 3020256, 25/32 COMBUSTION HEAD 25/32 COMBUSTION HEAD
Riello part no. 3020256		 £71.97
4 Part number 3007513, ELECTRODE ASSEMBLY ELECTRODE ASSEMBLY
Riello part no. 3007513		 £14.87
5 Part number 3008875, ELECTRODE CLAMP ELECTRODE CLAMP
Riello part no. 3008875		 £8.20
6 Part number 3008642, NOZZLE HOLDER NOZZLE HOLDER
Riello part no. 3008642		 £18.30
8 Part number 3008794, HIGH VOLTAGE LEAD (6 PCS) HIGH VOLTAGE LEAD (6 PCS)
Riello part no. 3008794		 £11.58
9 Part number 3008647, AIR DAMPER ASSEMBLY AIR DAMPER ASSEMBLY
Riello part no. 3008647		 £79.92
10 Part number 3005788, FAN FAN
Riello part no. 3005788		 £19.20
13 Part number 3007582, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3007582
13 Part number 3007871, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3007871		 £27.29
14 Part number 20032135, PRESSURE REGULATOR PRESSURE REGULATOR
Riello part no. 20032135		 £4.89
14 Part number 3008651, NOW USE 20032135 REGULATOR NOW USE 20032135 REGULATOR
Riello part no. 3008651
16 Part number 20030953, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20030953		 £125.51
17 Part number 3007162, NOW USE 3007175 O RING 10 PCS NOW USE 3007175 O RING 10 PCS
Riello part no. 3007162
17 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175		 £15.98
18 Part number 3020436, PUMP FILTER 3020436 RDB 3008653 PUMP FILTER 3020436 RDB 3008653
Riello part no. 3020436		 £8.40
18 Part number 3008653, NOW USE 3020436 FILTER-O-RING NOW USE 3020436 FILTER-O-RING
Riello part no. 3008653
19 Part number 3009046, CONNECTOR (BOULTERS) CONNECTOR (BOULTERS)
Riello part no. 3009046		 £3.66
20 Part number 3006934, NOW USE 20022603 TUBE FLEX NOW USE 20022603 TUBE FLEX
Riello part no. 3006934
20 Part number 20022603, FLEXIBLE HOSE FLEXIBLE HOSE
Riello part no. 20022603		 £22.30
21 Part number 3008644, TUBE TUBE
Riello part no. 3008644		 £34.80
23 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.74
24 Part number 3008648, COIL COIL
Riello part no. 3008648		 £21.09
25 Part number 3002836, NOW USE 20071577 RDB MOTOR C/W CAPACITOR NOW USE 20071577 RDB MOTOR C/W CAPACITOR
Riello part no. 3002836
25 Part number 20071577, Motor C/W Capacitor MOTOR C/W CAPACITOR
Riello part no. 20071577		 £124.05
26 Part number 3008649, PROTECTION PROTECTION
Riello part no. 3008649		 £11.09
27   NOW USE 20037830 CONTROL BOX
Riello part no. 3020265
27 Part number 20037830, CONTROL BOX M0535 CONTROL BOX M0535
Riello part no. 20037830		 £188.51
28 Part number 3008851, H T LEADS ( WAS 3008877) H T LEADS ( WAS 3008877)
Riello part no. 3008851		 £7.35
29 Part number 3006552, ELECTRODE CLAMP (10 PCS) ELECTRODE CLAMP (10 PCS)
Riello part no. 3006552		 £19.47
30 Part number 3008878, SEAL KIT SEAL KIT
Riello part no. 3008878		 £9.42
33   SHUTTER
Riello part no. 3020263		 £18.28
