ARISTON
ACO 27 MFFI (EDITION 1 JUNE 2004) - (Exploded View)
Appliance Code: 47-116-34

Appliance Diagram


Exploded View diagram for Ariston ACO 27 MFFI (Edition 1 June 2004)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 65102197, RESTRICTOR RESTRICTOR
Ariston part no. 65102197		 £10,92
2 Part number 65102255, FLUE (EXHAUST MANIFOLD / HEADER) FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 65102255		 £33,14
3 Part number 990370, AIR RETURN MANIFOLD AIR RETURN MANIFOLD
Ariston part no. 990370		 £6,07
4 Part number 991821, AIR RETURN COVER AIR RETURN COVER
Ariston part no. 991821		 £3,20
5 Part number 65101291, GASKET (AIR RETURN COVER) GASKET (AIR RETURN COVER)
Ariston part no. 65101291		 £1,70
6 Part number 990351, D = 4 CAM FIXING ELEMENT D = 4 CAM FIXING ELEMENT
Ariston part no. 990351		 £4,63
7 Part number 990352, CLOSING CASING CAM (L.H.) CLOSING CASING CAM (L.H.)
Ariston part no. 990352		 £4,31
8 Part number 990353, CASING HOOK (L.H.) CASING HOOK (L.H.)
Ariston part no. 990353		 £4,42
10 Part number 65102177, NOW USE 65103331 SPARK GENERATOR NOW USE 65103331 SPARK GENERATOR
Ariston part no. 65102177
10   SPARK GENERATOR
Ariston part no. 65103331		 £12,97
11 Part number 65102189, EARTH CABLE EARTH CABLE
Ariston part no. 65102189		 £2,59
13   P.C.B. COVER PLATE
Ariston part no. 65102234		 £4,91
14 Part number 65102236, NOW USE 65103508 P.C.B. (ACO-MCU) NOW USE 65103508 P.C.B. (ACO-MCU)
Ariston part no. 65102236

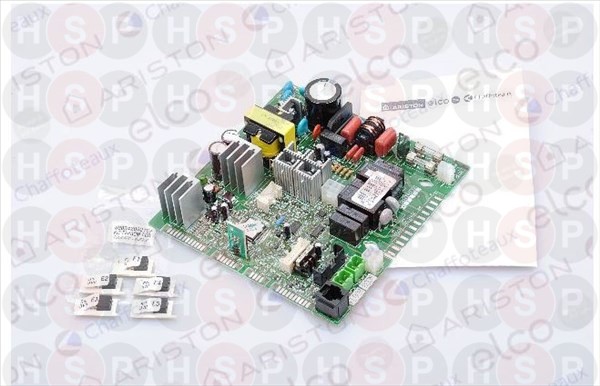

14 Part number 65103508, P.C.B. VER.06 (ACO-MCU) P.C.B. VER.06 (ACO-MCU)
Ariston part no. 65103508		 £350,38
15   CABLE (POWER SUPPLY)
Ariston part no. 65102187		 £4,95
16 Part number 65102183, LOW VOLTAGE WIRING LOW VOLTAGE WIRING
Ariston part no. 65102183		 £8,17
17   HIGH VOLTAGE WIRING (TO 09/04)
Ariston part no. 65102182		 £24,68
18 Part number 61302409-01, SANITARY HEAT EXCHANGER (16 P.) SANITARY HEAT EXCHANGER (16 P.)
Ariston part no. 61302409-01		 £112,94
18 Part number 990685, NOW USE 61302409-01 SECONDARY EXCHANGER NOW USE 61302409-01 SECONDARY EXCHANGER
Ariston part no. 990685
19 Part number 573825, O-RING 4075 3,53 X 18,64 O-RING 4075 3,53 X 18,64
Ariston part no. 573825		 £2,97
20   MANIFOLD (PROBE CONNECTION)
Ariston part no. 995934		 £29,79
21 Part number 998458, NOW USE 998458-01 TEMPERATURE PROBE NOW USE 998458-01 TEMPERATURE PROBE
Ariston part no. 998458
21   TEMPERATURE PROBE
Ariston part no. 998458-01		 £7,34
22 Part number 990384, MANIFOLD (C.H. FLOW) MANIFOLD (C.H. FLOW)
Ariston part no. 990384		 £6,59
23 Part number 990383, O-RING (C.H. FLOW MANIFOLD) O-RING (C.H. FLOW MANIFOLD)
Ariston part no. 990383		 £4,25
24 Part number 995936, NOW USE 65157028 FLANGE (C.H. FLOW) NOW USE 65157028 FLANGE (C.H. FLOW)
Ariston part no. 995936
24   FLANGE (C.H. FLOW)
Ariston part no. 65157028		 £13,18
25 Part number 990360, OBSOLETE GASKET (DELIVERY GROUP) OBSOLETE GASKET (DELIVERY GROUP)
Ariston part no. 990360
26 Part number 990404, LOCK FLANGE LOCK FLANGE
Ariston part no. 990404		 £2,95
27 Part number 65102015, VALVE RUBBER WASHER (3BAR) VALVE RUBBER WASHER (3BAR)
Ariston part no. 65102015		 £1,49
28 Part number 65101295, RUBBER WASHER RUBBER WASHER
Ariston part no. 65101295		 £4,43
29 Part number 65103222, SAFETY VALVE SAFETY VALVE
Ariston part no. 65103222		 £11,74
29 Part number 997088, NOW USE 65103222 SAFETY VALVE NOW USE 65103222 SAFETY VALVE
Ariston part no. 997088
30 Part number 998517, O-RING O-RING
Ariston part no. 998517		 £1,00
31 Part number 65102220, NOW USE 65121089 PRESSURE GAUGE NOW USE 65121089 PRESSURE GAUGE
Ariston part no. 65102220
31   PRESSURE GAUGE
Ariston part no. 65121089		 £25,82
32 Part number 65102247, GAS VALVE GAS VALVE
Ariston part no. 65102247		 £131,42
33 Part number 65101009, MANIFOLD (C.W. INLET) MANIFOLD (C.W. INLET)
Ariston part no. 65101009		 £52,28
34 Part number 990392, O-RING O-RING
Ariston part no. 990392		 £7,66
35 Part number 995948, D.H.W. FLOW SWITCH D.H.W. FLOW SWITCH
Ariston part no. 995948		 £21,59
36 Part number 990438, SCREW (M4X102) SCREW (M4X102)
Ariston part no. 990438		 £7,91
37 Part number 997147, MOTOR (3-WAY VALVE) MOTOR (3-WAY VALVE)
Ariston part no. 997147		 £35,27
38 Part number 997077, FIXING CLIP (MOTOR) FIXING CLIP (MOTOR)
Ariston part no. 997077		 £1,54
39 Part number 990393, O-RING O-RING
Ariston part no. 990393		 £3,61
40 Part number 990363, GASKET (RETURN GROUP) GASKET (RETURN GROUP)
Ariston part no. 990363		 £4,92
41 Part number 995932, FLANGE (C.H. RETURN) FLANGE (C.H. RETURN)
Ariston part no. 995932		 £18,09
42 Part number 65102253, NOW USE 65120951 PUMP HEAD NOW USE 65120951 PUMP HEAD
Ariston part no. 65102253
42 Part number 65102902, NOW USE 65120951 PUMP HEAD NOW USE 65120951 PUMP HEAD
Ariston part no. 65102902
42   PUMP PARA MS/7-50/SC-6
Ariston part no. 65120951		 £239,95
43 Part number 996123, NOW USE 998738 PUMP GASKET NOW USE 998738 PUMP GASKET
Ariston part no. 996123
43 Part number 998738, GASKET (PUMP HEAD) GASKET (PUMP HEAD)
Ariston part no. 998738		 £3,94
44 Part number 65104681, MANIFOLD (C.H. RETURN) MANIFOLD (C.H. RETURN)
Ariston part no. 65104681		 £61,69
44 Part number 991837, NOW USE 65104681 MANIFOLD (C.H. RETURN) NOW USE 65104681 MANIFOLD (C.H. RETURN)
Ariston part no. 991837
45 Part number 65100421, U-CLIP U-CLIP
Ariston part no. 65100421		 £2,98
46 Part number 995865, AUTO AIR VENT WITH O-RING (TO 10/06) AUTO AIR VENT WITH O-RING (TO 10/06)
Ariston part no. 995865		 £10,28
47 Part number 65101382, RETAINING CLIP (AUTO AIR VENT) RETAINING CLIP (AUTO AIR VENT)
Ariston part no. 65101382		 £2,09
48 Part number 995976, O-RING O-RING
Ariston part no. 995976		 £1,65
49 Part number 65102241, PIPE (PUMP TO EXPANSION VESSEL) PIPE (PUMP TO EXPANSION VESSEL)
Ariston part no. 65102241		 £9,49
50   CONTROL PANEL (COMPLETE)
Ariston part no. 65102191		 £124,90
52   CASE (COMPLETE)
Ariston part no. 65102264		 £306,36
54 Part number 65101719, EXPANSION VESSEL (7 L. STD) EXPANSION VESSEL (7 L. STD)
Ariston part no. 65101719		 £115,52
54 Part number 995940, NOW USE 65101719 EXPANSION VESSEL NOW USE 65101719 EXPANSION VESSEL
Ariston part no. 995940
55 Part number 65102232, NOW USE 65102232-01 AIR PRESSURE SWITCH NOW USE 65102232-01 AIR PRESSURE SWITCH
Ariston part no. 65102232
55 Part number 65102232-01, AIR PRESSURE SWITCH 150 Pa AIR PRESSURE SWITCH 150 PA
Ariston part no. 65102232-01		 £45,00
56 Part number 990373, SUPPORT PLATE SUPPORT PLATE
Ariston part no. 990373		 £2,73
57 Part number 65101317, GASKET (AIR PRESSURE SWITCH) GASKET (AIR PRESSURE SWITCH)
Ariston part no. 65101317		 £2,67
58 Part number 573329, AIR INTAKE COVER AIR INTAKE COVER
Ariston part no. 573329		 £6,22
59 Part number 65102166, NOW USE 65105349 CONDENSE TRAP NOW USE 65105349 CONDENSE TRAP
Ariston part no. 65102166
59 Part number 65105349, CONDENSATE TRAP CONDENSATE TRAP
Ariston part no. 65105349		 £30,94
60 Part number 998565, COVER (FLUE TEST POINT) (TO 03/06) COVER (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998565		 £3,28
61 Part number 998636, GASKET (FLUE TEST POINT) (TO 03/06) GASKET (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998636		 £5,17
62 Part number 998637, GASKET (FLUE COLLAR) GASKET (FLUE COLLAR)
Ariston part no. 998637		 £1,65
63 Part number 990372, CLOSING CASING CAM (R.H.) CLOSING CASING CAM (R.H.)
Ariston part no. 990372		 £4,31
64 Part number 990371, CASING HOOK (R.H.) CASING HOOK (R.H.)
Ariston part no. 990371		 £4,42
65 Part number 573343, GASKET (FAN) GASKET (FAN)
Ariston part no. 573343		 £6,80
68 Part number 990355, CABLE INLET RUBBER WASHER CABLE INLET RUBBER WASHER
Ariston part no. 990355		 £4,43
69   CABLE HOLDER
Ariston part no. 65100754		 £2,40
70 Part number 571562, CABLE CLAMP CABLE CLAMP
Ariston part no. 571562		 £2,67
71 Part number 65102254, CONNECTOR CONNECTOR
Ariston part no. 65102254		 £2,63
72 Part number 65102184, WIRING (INTERFACE - MAIN P.C.B.) WIRING (INTERFACE - MAIN P.C.B.)
Ariston part no. 65102184		 £6,17
73 Part number 990381, CONNECTOR (ROOM THERMOSTAT) CONNECTOR (ROOM THERMOSTAT)
Ariston part no. 990381		 £3,19
74 Part number 65102245, DISCHARGE PIPE (CONDENSATE) (TO 06/05) DISCHARGE PIPE (CONDENSATE) (TO 06/05)
Ariston part no. 65102245		 £8,67
75 Part number 990662, CLAMP CLAMP
Ariston part no. 990662		 £5,65
76 Part number 65102237, TRAP (TO 06/05) TRAP (TO 06/05)
Ariston part no. 65102237		 £34,25
77   GASKET (TRAP BASE) (TO 06/05)
Ariston part no. 65102216		 £1,17
78 Part number 65102240, TRAP PLUG (TO 06/05) TRAP PLUG (TO 06/05)
Ariston part no. 65102240		 £9,82
79 Part number 990665, DISCHARGE PIPE (CONDENSATE) DISCHARGE PIPE (CONDENSATE)
Ariston part no. 990665		 £5,13
80 Part number 990357, CLIPS CLIPS
Ariston part no. 990357		 £4,63
81   ELECTRIC BOX COVER
Ariston part no. 65102195		 £3,18
82 Part number 990387, O-RING O-RING
Ariston part no. 990387		 £1,53
83 Part number 990388, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 990388		 £15,55
84 Part number 998077, O-RING O-RING
Ariston part no. 998077		 £1,53
85 Part number 990386, U-CLIP U-CLIP
Ariston part no. 990386		 £4,85
86 Part number 990385, U-CLIP U-CLIP
Ariston part no. 990385		 £4,68
87 Part number 571548, U-CLIP U-CLIP
Ariston part no. 571548		 £4,35
88 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1,09
89 Part number 997153, U-CLIP U-CLIP
Ariston part no. 997153		 £1,47
90 Part number 65101007, FIXING PLATE (PROBE) FIXING PLATE (PROBE)
Ariston part no. 65101007		 £3,40
91 Part number 990405, CONTACT NTC PROBE CONTACT NTC PROBE
Ariston part no. 990405		 £14,92
92   DELIVERY PIPE (TO 06/05)
Ariston part no. 65102243		 £23,01
92   DELIVERY PIPE (TO 06/05)
Ariston part no. 65102256		 £25,09
93   GAS PIPE
Ariston part no. 65102242		 £23,44
94 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520		 £0,94
95   VALVE GAS DIAPHRAGM D=5.5
Ariston part no. 999954		 £1,54
96 Part number 65100770, MOTOR SUPPORT MOTOR SUPPORT
Ariston part no. 65100770		 £5,72
97 Part number 990488, O-RING O-RING
Ariston part no. 990488		 £1,65
98 Part number 990489, O-RING O-RING
Ariston part no. 990489		 £1,32
99 Part number 65105144, ASSEMBLED SHUTTER ASSEMBLED SHUTTER
Ariston part no. 65105144		 £42,23
99 Part number 995910, NOW USE 65105144 SPINDLE (DIVERTER VALVE) NOW USE 65105144 SPINDLE (DIVERTER VALVE)
Ariston part no. 995910
100 Part number 65102179, NOW USE 65105144 ASSEMBLED SHUTTER NOW USE 65105144 ASSEMBLED SHUTTER
Ariston part no. 65102179
100 Part number 65105144, ASSEMBLED SHUTTER ASSEMBLED SHUTTER
Ariston part no. 65105144		 £42,23
101 Part number 65101288, SERVICE KIT (DIVERTER VALVE) SERVICE KIT (DIVERTER VALVE)
Ariston part no. 65101288		 £38,95
102 Part number 990390, PLUG (DIVERTER VALVE) PLUG (DIVERTER VALVE)
Ariston part no. 990390		 £9,88
103 Part number 65101008, SPRING (DIVERTER VALVE) SPRING (DIVERTER VALVE)
Ariston part no. 65101008		 £6,06
104 Part number 999473, BY-PASS BY-PASS
Ariston part no. 999473		 £6,48
105 Part number 65100038, FIXING BRACKET (RETURN PIPE) FIXING BRACKET (RETURN PIPE)
Ariston part no. 65100038		 £2,86
106   PIPE (C.H. RETURN) (TO 06/05)
Ariston part no. 65102244		 £14,04
106 Part number 65102257, PIPE (C.H.RETURN) (TO 06/05) PIPE (C.H.RETURN) (TO 06/05)
Ariston part no. 65102257		 £15,04
107 Part number 65102233, EXCHANGER (TO 06/05) EXCHANGER (TO 06/05)
Ariston part no. 65102233		 £457,47
108 Part number 65102239, PIPE FIXING BRACKET (TO 06/05) PIPE FIXING BRACKET (TO 06/05)
Ariston part no. 65102239		 £1,86
109 Part number 65102217, NOW USE 65102438 GASKET (COMBUSTION CHAMBER PANEL-FRONT) NOW USE 65102438 GASKET (COMBUSTION CHAMBER PANEL-FRONT)
Ariston part no. 65102217
109 Part number 65102438, GASKETS (COMBUSTION CHAMBER) GASKETS (COMBUSTION CHAMBER)
Ariston part no. 65102438		 £100,32
110   SPRING
Ariston part no. 65102225		 £1,71
111 Part number 65102231, PANEL (COMB.CHAMBER - FRONT) PANEL (COMB.CHAMBER - FRONT)
Ariston part no. 65102231		 £42,26
112 Part number 999227, RETAINING RING (D=16mm) RETAINING RING (D=16MM)
Ariston part no. 999227		 £5,76
113 Part number 998782, SIGHT GLASS (BURNER) SIGHT GLASS (BURNER)
Ariston part no. 998782		 £8,58
114 Part number 998564, AIR VALVE FITTING AIR VALVE FITTING
Ariston part no. 998564		 £2,65
115   UNION (TO 06/05)
Ariston part no. 65102267		 £5,88
116 Part number 990378, OBSOLETE O-RING (TO 06/05) OBSOLETE O-RING (TO 06/05)
Ariston part no. 990378
117 Part number 65102200, NOW USE 65104680 PANEL (INSULATION - FRONT) NOW USE 65104680 PANEL (INSULATION - FRONT)
Ariston part no. 65102200
117   NOW USE 65104679 PANEL (INSULATION - FRONT)
Ariston part no. 65102201
117   PANELS (KIT)
Ariston part no. 65104679		 £141,29
117 Part number 65104680, PANELS (KIT) PANELS (KIT)
Ariston part no. 65104680		 £146,62
118   NOW USE 65104680 PANEL (INSULATION - L.H.)
Ariston part no. 65102206
118   NOW USE 65104679 PANEL (INSULATION - L.H.)
Ariston part no. 65102207
118   PANELS (KIT)
Ariston part no. 65104679		 £141,29
118 Part number 65104680, PANELS (KIT) PANELS (KIT)
Ariston part no. 65104680		 £146,62
119 Part number 65102204, NOW USE 65104680 PANEL (INSULATION - REAR) NOW USE 65104680 PANEL (INSULATION - REAR)
Ariston part no. 65102204
119 Part number 65102205, NOW USE 65104679 PANEL (INSULATION - REAR) NOW USE 65104679 PANEL (INSULATION - REAR)
Ariston part no. 65102205
119   PANELS (KIT)
Ariston part no. 65104679		 £141,29
119 Part number 65104680, PANELS (KIT) PANELS (KIT)
Ariston part no. 65104680		 £146,62
120   NOW USE 65104680 PANEL (INSULATION - RH)
Ariston part no. 65102202
120   NOW USE 65104679 PANEL (INSULATION - RH)
Ariston part no. 65102203
120   PANELS (KIT)
Ariston part no. 65104679		 £141,29
120 Part number 65104680, PANELS (KIT) PANELS (KIT)
Ariston part no. 65104680		 £146,62
121 Part number 65102226, FIXING SPRING (INSULATION PANEL) FIXING SPRING (INSULATION PANEL)
Ariston part no. 65102226		 £7,35
122 Part number 65102178, NOW USE 65102438 EXCHANGER GASKET NOW USE 65102438 EXCHANGER GASKET
Ariston part no. 65102178
122 Part number 65102438, GASKETS (COMBUSTION CHAMBER) GASKETS (COMBUSTION CHAMBER)
Ariston part no. 65102438		 £100,32
123 Part number 990403, CABLE (IONISATION ELECTRODE) CABLE (IONISATION ELECTRODE)
Ariston part no. 990403		 £4,44
124 Part number 65102246, PIPE (ELECTRODE CABLE) PIPE (ELECTRODE CABLE)
Ariston part no. 65102246		 £1,40
125 Part number 65102266, GASKET GASKET
Ariston part no. 65102266		 £1,50
126 Part number 65102198, ELECTRODE (IGNITION) ELECTRODE (IGNITION)
Ariston part no. 65102198		 £33,21
128 Part number 65102218, BURNER SUPPORT GASKET BURNER SUPPORT GASKET
Ariston part no. 65102218		 £34,23
129 Part number 65102215, ELECTRODE GASKET ELECTRODE GASKET
Ariston part no. 65102215		 £1,92
130 Part number 65102199, ELECTRODE (DETECTION) ELECTRODE (DETECTION)
Ariston part no. 65102199		 £45,59
131 Part number 65102190, EARTH CABLE (FAN) EARTH CABLE (FAN)
Ariston part no. 65102190		 £2,58
132 Part number 65102248, FAN FAN
Ariston part no. 65102248		 £123,63
133 Part number 65102186, CABLE (FAN) CABLE (FAN)
Ariston part no. 65102186		 £12,92
134 Part number 65102223, MIXER + PRESSURE INTAKE MIXER + PRESSURE INTAKE
Ariston part no. 65102223		 £56,06
135 Part number 65102214, NOW USE 65102395 GASKET (FAN) NOW USE 65102395 GASKET (FAN)
Ariston part no. 65102214
135 Part number 65102395, GASKET (FAN) GASKET (FAN)
Ariston part no. 65102395		 £10,36
136 Part number 65102181, NOW USE 65103221 BURNER NG NOW USE 65103221 BURNER NG
Ariston part no. 65102181
136 Part number 65103221, Burner NG BURNER NG
Ariston part no. 65103221		 £170,12
137 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521		 £0,94


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
