BAXI
80/2 HE PLUS - (Outer Case)
Appliance Code: 41-077-42

Appliance Diagram

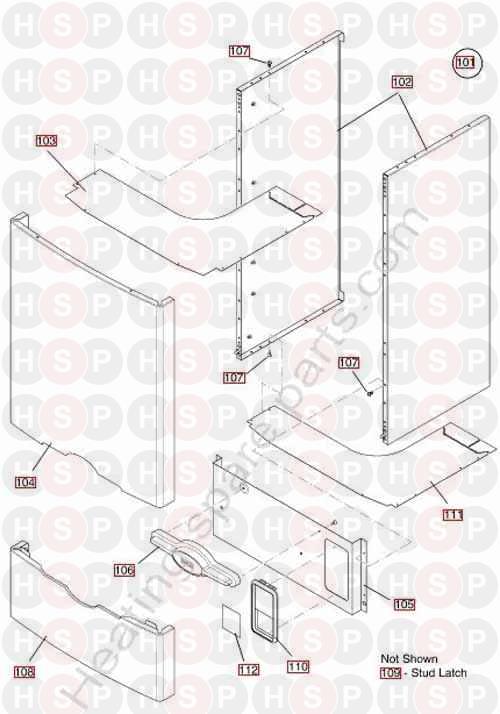

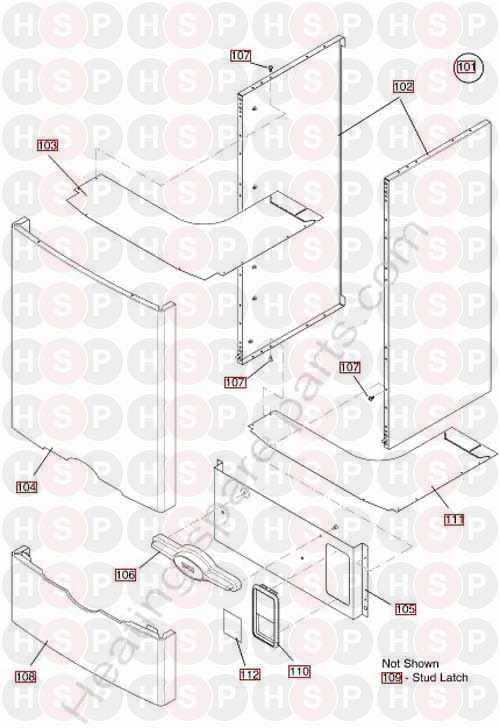

Outer Case diagram for Baxi 80/2 HE PlusClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 5112629, ASSY OUTER CASE - 80 HE PLUS ASSY OUTER CASE - 80 HE PLUS
Baxi part no. 5112629

102 Part number 240759, PAINT PANEL SIDE OUTER CASE PAINT PANEL SIDE OUTER CASE
Baxi part no. 240759
£11.29
103 Part number 5109588, Panel Top O/Case (painted) PANEL TOP O/CASE (PAINTED)
Baxi part no. 5109588
£9.14
104 Part number 240758, OBSOLETE PAINT PANEL FRONT OUTER CASE OBSOLETE PAINT PANEL FRONT OUTER CASE
Baxi part no. 240758

105 Part number 5109035, OBSOLETE Panel Infill O/Case (painted) OBSOLETE PANEL INFILL O/CASE (PAINTED)
Baxi part no. 5109035

106 Part number 5111347, OBSOLETE KIT ASSY BADGE OBSOLETE KIT ASSY BADGE
Baxi part no. 5111347

107 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX
£3.12
108 Part number 240757, NOW USE 5115438 LOWER DOOR NOW USE 5115438 LOWER DOOR
Baxi part no. 240757

108 Part number 5115438, KIT SPARES LOWER DOOR KIT SPARES LOWER DOOR
Baxi part no. 5115438
£86.59
109 Part number 245921, OBSOLETE STUD LATCH-M3-BRASS OBSOLETE STUD LATCH-M3-BRASS
Baxi part no. 245921

110   KIT BEZEL SPARES
Baxi part no. 5114968
£20.86
111 Part number 5109957, OBSOLETE Panel Bottom O/Case (painted) OBSOLETE PANEL BOTTOM O/CASE (PAINTED)
Baxi part no. 5109957

112 Part number 5113867, OBSOLETE DECAL ID - 80 HE PLUS (BAXI) OBSOLETE DECAL ID - 80 HE PLUS (BAXI)
Baxi part no. 5113867
