POTTERTON
PROMAX HE SYSTEM - (Combustion Chamber)
Appliance Code: 41-590-69

Appliance Diagram


Combustion Chamber diagram for Potterton Promax HE SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE ASSY PROMAX SYSTEM
Potterton part no. 5106576
2   OBSOLETE PAINTED PANEL UPPER OUTER CASE
Potterton part no. 5106579
3   OBSOLETE DOOR ASSEMBLY KIT
Potterton part no. 5106899
4   OBSOLETE PAINTED PANEL SIDE O/CASE RH
Potterton part no. 240489
6   OBSOLETE PLATE OUTER CASE
Potterton part no. 244037
8 Part number 244012, HINGE DOOR HINGE DOOR
Potterton part no. 244012		 £4.36
9 Part number 244013, PIVOT HINGE PIVOT HINGE
Potterton part no. 244013		 £4.20
10   RIVET-SNAP-NYLON
Potterton part no. 062758		 £2.43
11 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Potterton part no. 225310BAX		 £3.12
13   RESTRAINER DOOR
Potterton part no. 246131		 £3.59
80 Part number 241737, Trim Flue TRIM FLUE
Potterton part no. 241737		 £6.28
101 Part number 242501, COMB BOX ASSY - SPARES COMB BOX ASSY - SPARES
Potterton part no. 242501		 £124.30
102 Part number 242497, HEAT EX. ASSY PACKED HEAT EX. ASSY PACKED
Potterton part no. 242497		 £513.61
103 Part number 242500, HEAT EX RUBBER SEAL - SPARES HEAT EX RUBBER SEAL - SPARES
Potterton part no. 242500		 £11.53
104 Part number 237234, NOW USE 720012201 DOOR COMB BOX ASSY (PROMAX 1) NOW USE 720012201 DOOR COMB BOX ASSY (PROMAX 1)
Potterton part no. 237234
104 Part number 720012201, KIT COMBUSTION BOX DOOR KIT COMBUSTION BOX DOOR
Potterton part no. 720012201		 £84.62
105 Part number 242489, SEAL - COMB BOX DOOR SEAL - COMB BOX DOOR
Potterton part no. 242489		 £9.43
106 Part number 242484, VIEWING WINDOW ASSY VIEWING WINDOW ASSY
Potterton part no. 242484		 £8.11
107 Part number 244736, KIT ELECTRODE BURNER KIT ELECTRODE BURNER
Potterton part no. 244736		 £16.28
108 Part number 244737, KIT ELECTRODE SENSING KIT ELECTRODE SENSING
Potterton part no. 244737
109 Part number 241139, DZUS RETAINER - SPARES KIT DZUS RETAINER - SPARES KIT
Potterton part no. 241139		 £6.15
110 Part number 242468, OBSOLETE FAN VENTURI PIPE OBSOLETE FAN VENTURI PIPE
Potterton part no. 242468
111 Part number 242227, O-RING 13.3mm I/Dx2.4mm VITON O-RING 13.3MM I/DX2.4MM VITON
Potterton part no. 242227		 £5.88
112 Part number 240811, O-RING O-RING
Potterton part no. 240811		 £4.40
113 Part number 242472, FAN FAN
Potterton part no. 242472		 £343.98
114 Part number 242470, VENTURI VENTURI
Potterton part no. 242470		 £7.09
115 Part number 062596, NUT-WING M5 STEEL ZN PD NUT-WING M5 STEEL ZN PD
Potterton part no. 062596		 £3.05
116 Part number 5111714, CONDENSATE TRAP KIT - SPARES CONDENSATE TRAP KIT - SPARES
Potterton part no. 5111714		 £63.39
117 Part number 244738, KIT FIBRE WASHER AND LOCKNUT KIT FIBRE WASHER AND LOCKNUT
Potterton part no. 244738		 £10.55
118 Part number 239226, DOOR INNER CASE ASSEMBLY (FSB) DOOR INNER CASE ASSEMBLY (FSB)
Potterton part no. 239226		 £41.26
119 Part number 242483, SEAL - DOOR SEAL - DOOR
Potterton part no. 242483		 £12.16
120   OBSOLETE SCR SET M4X8MM POZI PAN S/S
Potterton part no. 234980
121 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Potterton part no. 062560		 £3.12
122 Part number 243007BAX, WIRE G/Y SILICONE x160mm WIRE G/Y SILICONE X160MM
Potterton part no. 243007BAX		 £12.46
123   RIVET NUT 5MM M. STEEL
Potterton part no. 238609BAX		 £2.39
124 Part number 247015BAX, KIT-CONDENSE TRAP PLUG/WASHER KIT-CONDENSE TRAP PLUG/WASHER
Potterton part no. 247015BAX		 £11.22
125 Part number 240814, WASHER FIBRE G3/4 WASHER FIBRE G3/4
Potterton part no. 240814		 £3.16
126 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Potterton part no. 062532		 £3.01
127 Part number 247173, SCREW SET M5 x 15MM SS HEX SCREW SET M5 X 15MM SS HEX
Potterton part no. 247173		 £3.26
202 Part number 242499, INSULATION PAD ASSY - SPARES INSULATION PAD ASSY - SPARES
Potterton part no. 242499		 £29.15
203 Part number 242492, BURNER ASSY BURNER ASSY
Potterton part no. 242492		 £271.65
204 Part number 247506, KIT-BOX-BURNER KIT-BOX-BURNER
Potterton part no. 247506		 £71.01
205 Part number 247174, SCREW SET M6x 30MM SS HEX SCREW SET M6X 30MM SS HEX
Potterton part no. 247174		 £3.26
206 Part number 246468, SCREW SET M5 x 20mm POZI HEX SCREW SET M5 X 20MM POZI HEX
Potterton part no. 246468		 £3.26
207 Part number 237259, SEAL - FLUE SEAL - FLUE
Potterton part no. 237259		 £5.88
301 Part number 242473, GAS VALVE - SPARES GAS VALVE - SPARES
Potterton part no. 242473		 £192.68
302 Part number 242475, 5mm PIPE - SPARES 5MM PIPE - SPARES
Potterton part no. 242475		 £19.61
303 Part number 242228, GROMMET GROMMET
Potterton part no. 242228		 £4.45
304 Part number 242459, FLOW SWITCH FLOW SWITCH
Potterton part no. 242459		 £49.78
305 Part number 242461, BRASS FITTINGS BRASS FITTINGS
Potterton part no. 242461		 £29.51
306 Part number 241154, NOW USE 240396 VENT AUTO SPARES NOW USE 240396 VENT AUTO SPARES
Potterton part no. 241154
306 Part number 240396, VENT AUTO VENT AUTO
Potterton part no. 240396		 £25.05
307 Part number 240812, O-RING 20.64 x 2.62mm O-RING 20.64 X 2.62MM
Potterton part no. 240812		 £3.26
308 Part number 240670, NOW USE 7671970 THERMOSTAT BOILER NOW USE 7671970 THERMOSTAT BOILER
Potterton part no. 240670
308 Part number 7671970, THERMOSTAT BOILER-240670 THERMOSTAT BOILER-240670
Potterton part no. 7671970		 £13.59
309 Part number 7671968, THERMOSTAT OVERHEAT-242235 THERMOSTAT OVERHEAT-242235
Potterton part no. 7671968		 £20.37
309 Part number 242235, NOW USE 7671968 THERMOSTAT OVERHEAT NOW USE 7671968 THERMOSTAT OVERHEAT
Potterton part no. 242235
310 Part number 5121359, PIPE RETURN BOILER (SPARES) PIPE RETURN BOILER (SPARES)
Potterton part no. 5121359
310 Part number 243347, PIPE RETURN BOILER PIPE RETURN BOILER
Potterton part no. 243347
311 Part number 247159, OBSOLETE PIPE FLOW BOILER OBSOLETE PIPE FLOW BOILER
Potterton part no. 247159
312 Part number 243342, PIPE VENT AUTO PIPE VENT AUTO
Potterton part no. 243342		 £7.60
313 Part number 240390, NOW USE 5000721 SAFETY VALVE NOW USE 5000721 SAFETY VALVE
Potterton part no. 240390
313 Part number 5000721, VALVE PRESSURE RELIEF. VALVE PRESSURE RELIEF.
Potterton part no. 5000721		 £22.38
314 Part number 5113411, PUMP HEAD REPLACEMENT INC SEAL PUMP HEAD REPLACEMENT INC SEAL
Potterton part no. 5113411
314 Part number 240395, NOW USE 5113411 PUMP NOW USE 5113411 PUMP
Potterton part no. 240395

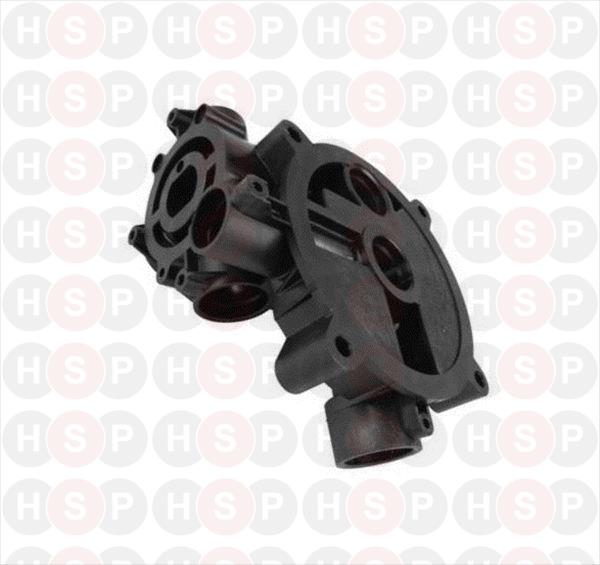

315 Part number 242369, MANIFOLD PUMP VALVE MANIFOLD PUMP VALVE
Potterton part no. 242369		 £66.86
317   OBSOLETE BRACKET PUMP UPPER
Potterton part no. 242543
318   OBSOLETE BRACKET SECURING FRAME
Potterton part no. 243077
319 Part number 242493, HEAT EX. MANIFOLD HEAT EX. MANIFOLD
Potterton part no. 242493		 £34.55
320 Part number 240676, NOW USE 7671969 SEAL MANIFOLD 2.62mm DIA NOW USE 7671969 SEAL MANIFOLD 2.62MM DIA
Potterton part no. 240676
320 Part number 7671969, SEAL MANIFOLD 2.62mm D-240676 SEAL MANIFOLD 2.62MM D-240676
Potterton part no. 7671969		 £7.63
321 Part number 241806, PLUG DRAIN PLUG DRAIN
Potterton part no. 241806		 £7.09
324 Part number 244663, SCREW M6 x 45MM SET PAN POZI SCREW M6 X 45MM SET PAN POZI
Potterton part no. 244663		 £2.33
325 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Potterton part no. 062441		 £3.01
326 Part number 239234, HARNESS WIRING ASSY HARNESS WIRING ASSY
Potterton part no. 239234		 £38.90
327   OBSOLETE HARNESS WIRING CONTROLS (UK)
Potterton part no. 243609
328 Part number 5113418, KIT - HARNESS SYSTEM BOILER KIT - HARNESS SYSTEM BOILER
Potterton part no. 5113418
328 Part number 247711, HARNESS WIRING VALVE SYSTEM HARNESS WIRING VALVE SYSTEM
Potterton part no. 247711
329 Part number 240799, PIPE CLIP PIPE CLIP
Potterton part no. 240799		 £5.88
330 Part number 242229, GASKET GASKET
Potterton part no. 242229		 £3.16
331 Part number 242226, SCR SET M5x15mm CAP HD SOCKET SCR SET M5X15MM CAP HD SOCKET
Potterton part no. 242226		 £3.26
332   BOX MANIFOLD VALVE
Potterton part no. 7683446		 £17.49
332 Part number 241739, NOW USE 7683446 BOX MANIFOLD VALVE NOW USE 7683446 BOX MANIFOLD VALVE
Potterton part no. 241739
401   OBSOLETE BRACKET CLAMP TOP
Potterton part no. 242540
402   OBSOLETE PANEL WALL ASSEMBLY
Potterton part no. 243899
403 Part number 240388, TANK EXPANSION TANK EXPANSION
Potterton part no. 240388		 £124.23
404   OBSOLETE KIT HINGE BOSS
Potterton part no. 244748
405   BKT SUPPORT EXPANSION TANK ASS
Potterton part no. 5106443		 £4.25
407 Part number 241775, OBSOLETE BOX ELECTRICAL OBSOLETE BOX ELECTRICAL
Potterton part no. 241775
408   OBSOLETE BRACKET MOUNTING ELECTRICAL
Potterton part no. 242828
409 Part number 5106884, KIT-PCB PROMAX SYSTEM HE KIT-PCB PROMAX SYSTEM HE
Potterton part no. 5106884		 £189.92
410 Part number 241838, BOARD ELECTRONIC IGNITION ASSY BOARD ELECTRONIC IGNITION ASSY
Potterton part no. 241838		 £161.42
411 Part number 240236, TRANSFORMER 24V - 50VA TRANSFORMER 24V - 50VA
Potterton part no. 240236
412   OBSOLETE KIT FACIA PROMAX SYSTEM
Potterton part no. 5106900
413 Part number 241839, BOARD ELECTRONIC USER ASSY BOARD ELECTRONIC USER ASSY
Potterton part no. 241839
414 Part number 230981, KNOB - THERMOSTAT KNOB - THERMOSTAT
Potterton part no. 230981		 £9.51
415 Part number 241190, PRESSURE GUAGE - SPARES PRESSURE GUAGE - SPARES
Potterton part no. 241190		 £36.08
416   OBSOLETE DISPLAY OVERLAY FACIA
Potterton part no. 5106696
417 Part number 231405, SCR-ST No 6x1/2-PAN-POZI-PL SCR-ST NO 6X1/2-PAN-POZI-PL
Potterton part no. 231405		 £3.16
419 Part number 244765, KIT FUSE PC BOARDS KIT FUSE PC BOARDS
Potterton part no. 244765		 £5.25
420   OBSOLETE BRACKET SUPPORT FACIA
Potterton part no. 242545
421 Part number 244011, OBSOLETE HANGER OUTER CASE OBSOLETE HANGER OUTER CASE
Potterton part no. 244011
504 Part number 240838, VALVE-ANGLED-GAS-G3/4in VALVE-ANGLED-GAS-G3/4IN
Potterton part no. 240838		 £18.23
505 Part number 240806, VALVE-ANGLED-WATER-G3/4in VALVE-ANGLED-WATER-G3/4IN
Potterton part no. 240806		 £60.09
506 Part number 240805, OBSOLETE VALVE-ANGLED-WATER-G1/2in OBSOLETE VALVE-ANGLED-WATER-G1/2IN
Potterton part no. 240805
507 Part number 241032, FILTER C.H. FILTER C.H.
Potterton part no. 241032		 £2.50
508 Part number 245555, NOW USE 247760 LOCKNUT BRASS 1/2 X 2 NOW USE 247760 LOCKNUT BRASS 1/2 X 2
Potterton part no. 245555
508 Part number 247760, LOCK NUT - G1/2 LOCK NUT - G1/2
Potterton part no. 247760		 £5.88
509 Part number 240815, WASHER FIBRE G1/2 WASHER FIBRE G1/2
Potterton part no. 240815		 £3.16
510   LOCKNUT BRASS 3/4 X 3
Potterton part no. 245556		 £2.78
600 Part number 236921, KIT - FLUE TERMINAL CONDENSING KIT - FLUE TERMINAL CONDENSING
Potterton part no. 236921		 £254.23
602 Part number 243013BAX, KIT WALL TERMINAL 70/110 KIT WALL TERMINAL 70/110
Potterton part no. 243013BAX		 £115.60
603 Part number 240181, KIT - FLUE ELBOW BOILER KIT - FLUE ELBOW BOILER
Potterton part no. 240181		 £153.65
604 Part number 244758, KIT FLUE ELBOW SEALING RING * KIT FLUE ELBOW SEALING RING *
Potterton part no. 244758		 £20.99
606 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Potterton part no. 062549		 £3.12


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
