POTTERTON
GOLD H 15 - (Controls)
Appliance Code: 41-592-12

Appliance Diagram

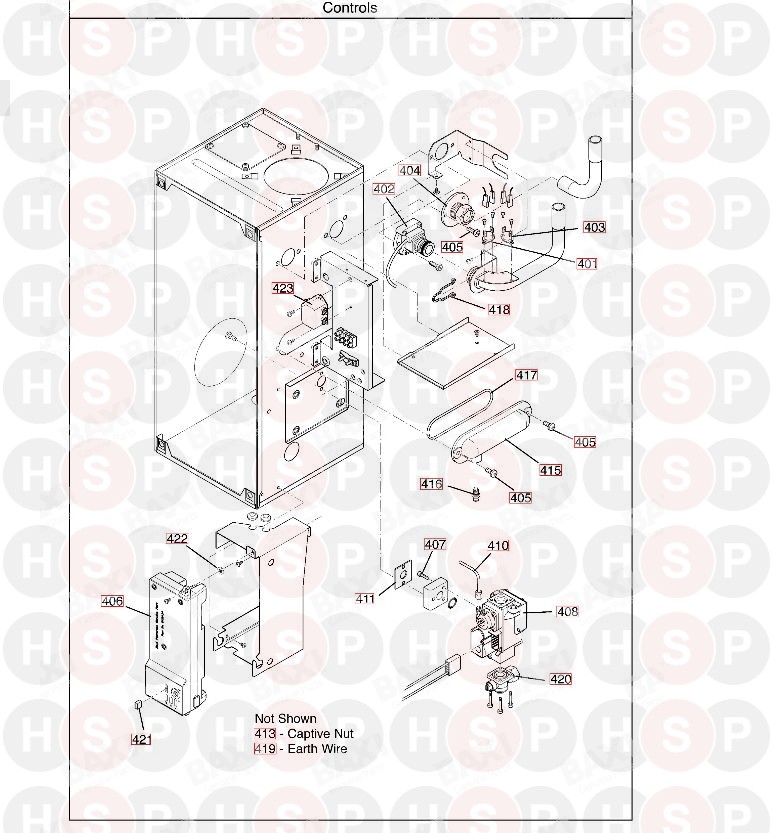

Controls diagram for Potterton Gold H 15Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

401 Part number 240670, NOW USE 7671970 THERMOSTAT BOILER NOW USE 7671970 THERMOSTAT BOILER
Potterton part no. 240670
401 Part number 7671970, THERMOSTAT BOILER-240670 THERMOSTAT BOILER-240670
Potterton part no. 7671970		 £13.59
402 Part number 242459, FLOW SWITCH FLOW SWITCH
Potterton part no. 242459		 £49.78
403 Part number 242235, NOW USE 7671968 THERMOSTAT OVERHEAT NOW USE 7671968 THERMOSTAT OVERHEAT
Potterton part no. 242235
403 Part number 7671968, THERMOSTAT OVERHEAT-242235 THERMOSTAT OVERHEAT-242235
Potterton part no. 7671968		 £20.37
404 Part number 242461, BRASS FITTINGS BRASS FITTINGS
Potterton part no. 242461		 £29.51
405 Part number 633404, SCREW M6X20 SCREW M6X20
Potterton part no. 633404		 £3.06
406 Part number 5121025, ELECTRONIC CONTROL ELECTRONIC CONTROL
Potterton part no. 5121025		 £272.31
407 Part number 242226, SCR SET M5x15mm CAP HD SOCKET SCR SET M5X15MM CAP HD SOCKET
Potterton part no. 242226		 £3.26
408 Part number 241900, VALVE MULTIFUNCTIONAL VALVE MULTIFUNCTIONAL
Potterton part no. 241900		 £144.98
410 Part number 242475, 5mm PIPE - SPARES 5MM PIPE - SPARES
Potterton part no. 242475		 £19.61
411 Part number 242229, GASKET GASKET
Potterton part no. 242229		 £3.16
413 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Potterton part no. 102012		 £3.12
415 Part number 242493, HEAT EX. MANIFOLD HEAT EX. MANIFOLD
Potterton part no. 242493		 £34.55
416 Part number 241806, PLUG DRAIN PLUG DRAIN
Potterton part no. 241806		 £7.09
417 Part number 240676, NOW USE 7671969 SEAL MANIFOLD 2.62mm DIA NOW USE 7671969 SEAL MANIFOLD 2.62MM DIA
Potterton part no. 240676
417 Part number 7671969, SEAL MANIFOLD 2.62mm D-240676 SEAL MANIFOLD 2.62MM D-240676
Potterton part no. 7671969		 £7.63
418 Part number 240799, PIPE CLIP PIPE CLIP
Potterton part no. 240799		 £5.88
419 Part number 243007BAX, WIRE G/Y SILICONE x160mm WIRE G/Y SILICONE X160MM
Potterton part no. 243007BAX		 £12.46
420 Part number 5107787, GAS COCK FLANGED 15MM COMPRESSION GAS COCK FLANGED 15MM COMPRESSION
Potterton part no. 5107787		 £13.58
421 Part number 5109989, NOW USE 7672047 BUTTON RESET - BLACK NOW USE 7672047 BUTTON RESET - BLACK
Potterton part no. 5109989
421   BUTTON RESET BLACK
Potterton part no. 7672047		 £5.88
422   M5 RETAINING WASHER
Potterton part no. 371875		 £2.65
423 Part number 5114338, FILTER EMC CHASSIS MOUNT FILTER EMC CHASSIS MOUNT
Potterton part no. 5114338		 £38.51
424   PIPE - RETURN
Potterton part no. 5121478		 £41.57
425   SPARE FLOW PIPE ASSY (SL)
Potterton part no. 5121479		 £64.04
