VOKERA
LINEA 32 HE REV 8 (11/2009) - (Burner)
Appliance Code: 47-094-90

Appliance Diagram

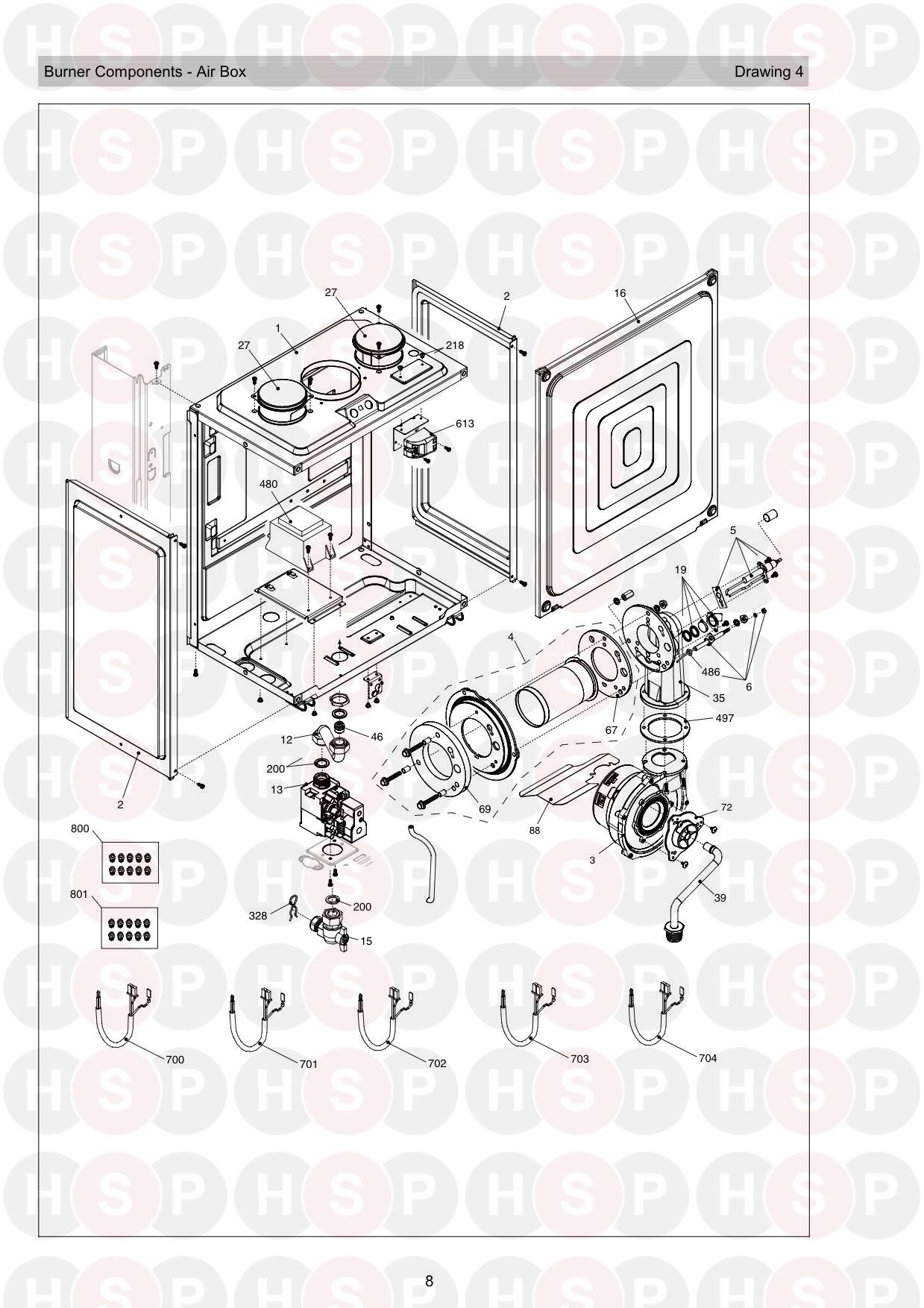

Burner diagram for Vokera Linea 32 HE Rev 8 (11/2009)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   ROOM SEALED CHAMBER
Vokera part no. 10028520
2   ROOMSEALED CHAMBER SIDE
Vokera part no. 10026231
£33.11
3 Part number 10027051, Fan FAN
Vokera part no. 10027051
£297.21
4   NOW USE 10028537 BURNER
Vokera part no. 01005458

4 Part number 10028537, Burner (Rep 01005458 and 10026548) BURNER (REP 01005458 AND 10026548)
Vokera part no. 10028537
£162.97
5 Part number 10027864, Spark/Ignition electrode SPARK/IGNITION ELECTRODE
Vokera part no. 10027864
£30.24
6 Part number 10026316, Sensing electrode SENSING ELECTRODE
Vokera part no. 10026316
£12.30
12 Part number 10026318, Gas pipe GAS PIPE
Vokera part no. 10026318
£16.45
13 Part number 10028538, NOW USE 20039202 Gas valve NOW USE 20039202 GAS VALVE
Vokera part no. 10028538

13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£170.04
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£26.04
16   ROOMSEALED CHAMBER COVER
Vokera part no. 10026230
£43.50
19 Part number 10026328, Glass assembly GLASS ASSEMBLY
Vokera part no. 10026328
£8.31
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.65
35 Part number 10028420, Air gas conveyor AIR GAS CONVEYOR
Vokera part no. 10028420
£49.54
39   GAS PIPE REPLACED 10027196
Vokera part no. 10028206
£23.88
46   NG JET (7.0)
Vokera part no. 10027162
£7.97
67 Part number 10026322, Washer WASHER
Vokera part no. 10026322
£21.67
69 Part number 10027089, NOW USE 20046833 TRYTON NOW USE 20046833 TRYTON
Vokera part no. 10027089

69   TRYTON AND SCREWS - REPLACED 10027089
Vokera part no. 20046833
£10.79
72 Part number 20015932, Mixer Replaced 10024295 MIXER REPLACED 10024295
Vokera part no. 20015932
£40.32
88 Part number 20006411, Fan baffle FAN BAFFLE
Vokera part no. 20006411
£8.46
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
480 Part number 10026236, Transformer with wires that connect onto CN01 TRANSFORMER WITH WIRES THAT CONNECT ONTO CN01
Vokera part no. 10026236
£90.16
486 Part number 10026325, O ring O RING
Vokera part no. 10026325
£2.52
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796
£7.18
613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£42.16
700   SENSOR CABLE ANTI SPILLING
Vokera part no. 20006409
701 Part number 10026336, J10 to Gas valve cable J10 TO GAS VALVE CABLE
Vokera part no. 10026336
£24.40
702 Part number 10026337, CN01 to Fan transformer CN01 TO FAN TRANSFORMER
Vokera part no. 10026337
£25.73
703 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558
£10.79
704   IGNITION CABLE
Vokera part no. 20002045
£12.84
800   LPG TO NG CONVERSION KIT (7.0 JET)
Vokera part no. 01005466

801 Part number 01005448, NG to LPG conversion kit (5.0 jet) Replaced 01005390 NG TO LPG CONVERSION KIT (5.0 JET) REPLACED 01005390
Vokera part no. 01005448
£17.73
