GLOWWORM
ULTRACOM 24 HXI - (Appliance Overview)
Appliance Code: 41-019-04

Appliance Diagram


Appliance Overview diagram for Glowworm Ultracom 24 HXIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COMPANY PLAQUE
Glowworm part no. 0020037278		 £7.14
2 Part number 801706, SIDE PANEL LH SIDE PANEL LH
Glowworm part no. 801706		 £67.77

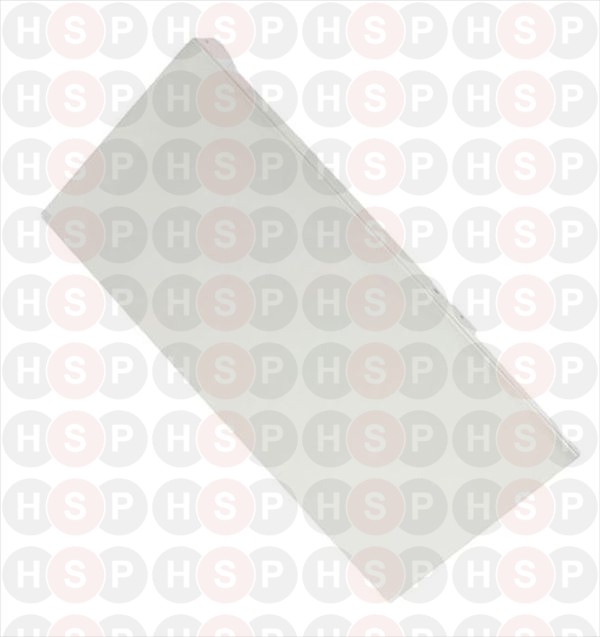

2   FRONT PANEL
Glowworm part no. 801704		 £106.07
4 Part number 801711, SIDE PANEL RH SIDE PANEL RH
Glowworm part no. 801711		 £67.77
5 Part number 801700, SCREW 4.2X13.5MM SCREW 4.2X13.5MM
Glowworm part no. 801700		 £6.61
6 Part number 801723, INNER DOOR INNER DOOR
Glowworm part no. 801723		 £102.63
7 Part number 2000801705, INNER DOOR SEAL 1390MM INNER DOOR SEAL 1390MM
Glowworm part no. 2000801705		 £11.24
8 Part number 801736, CHASSIS FRONT SEAL CHASSIS FRONT SEAL
Glowworm part no. 801736		 £35.24
9 Part number 801735, CHASSIS FRONT CHASSIS FRONT
Glowworm part no. 801735		 £25.60
10 Part number 801654, ZIG IGNITOR BRACKET ZIG IGNITOR BRACKET
Glowworm part no. 801654		 £11.45
11 Part number 801741, NOW USE A000035108 WALL BRACKET NOW USE A000035108 WALL BRACKET
Glowworm part no. 801741
11 Part number A000035108, Wall hanging bracket WALL HANGING BRACKET
Glowworm part no. A000035108		 £6.39
12 Part number 801614, FLUE ADAPTER FLUE ADAPTER
Glowworm part no. 801614		 £114.80
13 Part number 2000801616, NOW USE 0020038076 FLUE SEAL NOW USE 0020038076 FLUE SEAL
Glowworm part no. 2000801616
13 Part number 0020038076, Gasket exchanger / flue GASKET EXCHANGER / FLUE
Glowworm part no. 0020038076		 £7.89
14 Part number 2000801615, gasket heat exchanger GASKET HEAT EXCHANGER
Glowworm part no. 2000801615		 £20.69
15 Part number 801617, NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL
Glowworm part no. 801617
15 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359		 £21.09
16   H/E SUPPORT BRACKET - LH
Glowworm part no. 801618		 £21.73
17   H/E SUPPORT BRACKET RH
Glowworm part no. 801619		 £21.73
18 Part number S212332, SEALING WASHER 24.5X18.2MM SEALING WASHER 24.5X18.2MM
Glowworm part no. S212332		 £6.57
19   PIPE, FLOW
Glowworm part no. 0020037289		 £22.30
20   PIPE, RETURN
Glowworm part no. 0020037293		 £11.73
21 Part number 0020010866, Insulation, heat exchanger, 10 mm INSULATION, HEAT EXCHANGER, 10 MM
Glowworm part no. 0020010866		 £42.18
22 Part number 801622, Clamp - Heat exchanger CLAMP - HEAT EXCHANGER
Glowworm part no. 801622		 £6.61
23 Part number 801623, SCREW M6X60 SCREW M6X60
Glowworm part no. 801623		 £6.61
24 Part number 2000802662, Burner 35KW BURNER 35KW
Glowworm part no. 2000802662		 £153.59
25 Part number 801634, GASKET, BURNER GASKET, BURNER
Glowworm part no. 801634		 £6.97
26 Part number 2000802737, Insulation cover heat exchanger INSULATION COVER HEAT EXCHANGER
Glowworm part no. 2000802737		 £61.71
27 Part number 801633, Screw, burner SCREW, BURNER
Glowworm part no. 801633		 £6.61
28 Part number 801688, gasket h/e door/mixing arm GASKET H/E DOOR/MIXING ARM
Glowworm part no. 801688		 £6.39
29 Part number 801640, NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT
Glowworm part no. 801640
29 Part number 2000801640, viewing glass (set) VIEWING GLASS (SET)
Glowworm part no. 2000801640		 £10.98
30 Part number 801638, GASKET ELECTRODE GASKET ELECTRODE
Glowworm part no. 801638		 £6.39
31 Part number 2000802462, NOW USE 0020152564 ignition rod NOW USE 0020152564 IGNITION ROD
Glowworm part no. 2000802462
31 Part number 0020152564, Electrode (kit) ELECTRODE (KIT)
Glowworm part no. 0020152564		 £41.16
32 Part number 801639, screw electrode SCREW ELECTRODE
Glowworm part no. 801639		 £6.61
33 Part number 801641, MANIFOLD FAN (ASSEMBLY) MANIFOLD FAN (ASSEMBLY)
Glowworm part no. 801641		 £146.90
34 Part number 801644, NOW USE 0020018831 SCREW FAN ASSEMBLY NOW USE 0020018831 SCREW FAN ASSEMBLY
Glowworm part no. 801644
34 Part number 0020018831, Screw M6x20 (PK10) SCREW M6X20 (PK10)
Glowworm part no. 0020018831		 £6.61
35 Part number 801689, SEAL FAN SEAL FAN
Glowworm part no. 801689		 £8.17
36 Part number 0020037309, FAN FAN
Glowworm part no. 0020037309		 £199.47
37 Part number 801648, O-ring for venturi plate O-RING FOR VENTURI PLATE
Glowworm part no. 801648		 £6.61
38 Part number 801647, VENTURI PLATE FAN VENTURI PLATE FAN
Glowworm part no. 801647		 £35.51
39 Part number S014277, Screw M4x10mm SCREW M4X10MM
Glowworm part no. S014277		 £6.61
40 Part number 2000802664, Gas section GAS SECTION
Glowworm part no. 2000802664		 £207.80
41 Part number 801631, HEAT EXCHANGER DOOR KIT HEAT EXCHANGER DOOR KIT
Glowworm part no. 801631		 £123.71
42 Part number 801635, NOW USE 0020038679 Seal heat exchanger door NOW USE 0020038679 SEAL HEAT EXCHANGER DOOR
Glowworm part no. 801635
42 Part number 0020038679, Gasket kit GASKET KIT
Vaillant part no. 0020038679		 £19.11
43 Part number 801651, M6 washered nut M6 WASHERED NUT
Glowworm part no. 801651		 £6.61
44 Part number 2000801701, Heat exchanger HEAT EXCHANGER
Glowworm part no. 2000801701		 £652.54
45 Part number 0020013711, SIPHON SIPHON
Glowworm part no. 0020013711		 £31.95
46 Part number 0020013712, FLOAT FLOAT
Glowworm part no. 0020013712		 £6.61
47 Part number 2000802784, NOW USE 00200587359 SIPHON ADAPTER NOW USE 00200587359 SIPHON ADAPTER
Glowworm part no. 2000802784
47 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359		 £21.09
48 Part number 0020020726, Pipe, condense drain PIPE, CONDENSE DRAIN
Glowworm part no. 0020020726		 £10.55
49   NOW USE 0020057359 SEALING SYPHON ADAPTER
Glowworm part no. 2000802152
49 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359		 £21.09
50 Part number 0020038062, Casing CASING
Glowworm part no. 0020038062		 £25.46
51 Part number 0020038061, display DISPLAY
Glowworm part no. 0020038061		 £185.69
52   BACK PANEL
Glowworm part no. 0020038063		 £12.93
53 Part number 0020023825, PCB main PCB MAIN
Glowworm part no. 0020023825		 £192.24
54 Part number 0020025183, appliance interface harness APPLIANCE INTERFACE HARNESS
Glowworm part no. 0020025183		 £13.27
55 Part number 0020026405, NOW USE 0020079603 fuse NOW USE 0020079603 FUSE
Glowworm part no. 0020026405
55 Part number 0020079603, Fuse 2,0 A T2H (PK10) FUSE 2,0 A T2H (PK10)
Glowworm part no. 0020079603		 £14.09
56 Part number 801655, ZIG IGNITOR ZIG IGNITOR
Glowworm part no. 801655		 £37.25
57 Part number 0020037306, cable tree (harness) CABLE TREE (HARNESS)
Glowworm part no. 0020037306		 £12.35
58 Part number 0020020781, NOW USE S5739800 temperature monitor NOW USE S5739800 TEMPERATURE MONITOR
Glowworm part no. 0020020781
58 Part number S5739800, Temperature sensor TEMPERATURE SENSOR
Glowworm part no. S5739800		 £23.87
59 Part number 0020038263, fitting FITTING
Glowworm part no. 0020038263		 £6.61
60 Part number 0020037299, housing HOUSING
Glowworm part no. 0020037299		 £64.46
61 Part number 0020041108, housing HOUSING
Glowworm part no. 0020041108		 £23.16
62 Part number SK7959, Screw, M3x6mm SCREW, M3X6MM
Glowworm part no. SK7959		 £6.61
63   CABLE TREE (HARNESS)
Glowworm part no. 0020037308		 £27.37
64 Part number 0020037303, NOW USE 0020152565 ELECTRODE KIT NOW USE 0020152565 ELECTRODE KIT
Glowworm part no. 0020037303
64 Part number 0020152565, Electrode (kit) ELECTRODE (KIT)
Glowworm part no. 0020152565		 £44.14
65   CABLE TREE (HYDRAULIC HARNESS)
Glowworm part no. 0020020786		 £8.76
66 Part number 801712, GROMMET GROMMET
Glowworm part no. 801712		 £6.61
67   NOW USE 0020064663 SEALING PLATE GAS PIPE
Glowworm part no. 801745
67 Part number 0020064663, Sealing plate SEALING PLATE
Glowworm part no. 0020064663		 £6.80
68 Part number 801744, Gasket plate gas pipe GASKET PLATE GAS PIPE
Glowworm part no. 801744		 £6.61
69   OPEN / CLOSED BUSH
Glowworm part no. 801661		 £6.61
70   SPACER FAN - 63MM
Glowworm part no. 2000801703		 £32.72
71 Part number 801624, NOW USE 0020057359 SIPHON ADAPTER NOW USE 0020057359 SIPHON ADAPTER
Glowworm part no. 801624
71 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359		 £21.09
72 Part number 0020057359, Siphon Adapter SIPHON ADAPTER
Glowworm part no. 0020057359		 £21.09
72 Part number 801732, NOW USE 0020057359 HOSE CONNECTOR NOW USE 0020057359 HOSE CONNECTOR
Glowworm part no. 801732
74 Part number 801625, O RING 18 X 3 O RING 18 X 3
Glowworm part no. 801625		 £6.61
75 Part number 801626, O ring 15.6 ID X 2.4 SECT DIA O RING 15.6 ID X 2.4 SECT DIA
Glowworm part no. 801626		 £6.61
76 Part number 801739, Pipe, gas PIPE, GAS
Glowworm part no. 801739		 £31.59
