WORCESTER
24SI II - (Pump)
Appliance Code: 47-311-65

Appliance Diagram

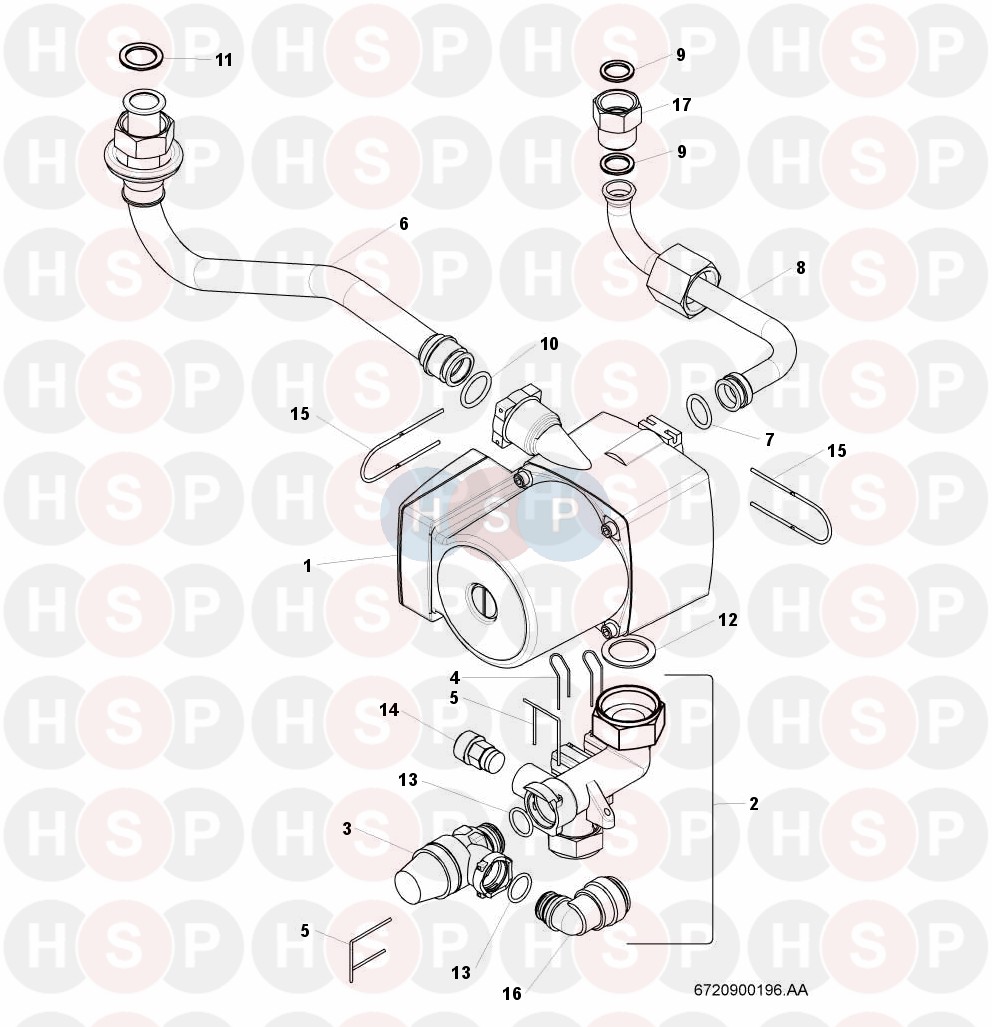

Pump diagram for Worcester 24SI IIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161412190, BOILER DRAIN TUBE BOILER DRAIN TUBE
Worcester part no. 87161412190		 £6.54
1 Part number 87161135940, NOW USE 8716120416 STANDARD 15/60 PUMP HEAD NOW USE 8716120416 STANDARD 15/60 PUMP HEAD
Worcester part no. 87161135940
1 Part number 87161431160, NOW USE 8716119828 PUMP NOW USE 8716119828 PUMP
Worcester part no. 87161431160
1   PUMP
Worcester part no. 8716119828
1   PUMP HEAD UPMO 7M C/W INST PLUG
Worcester part no. 8716120416		 £189.33
2 Part number 87161052660, PUMP INLET MANIFOLD ASSEMBLY PUMP INLET MANIFOLD ASSEMBLY
Worcester part no. 87161052660
2 Part number 87161215520, OBSOLETE PUMP INLET MANIFOLD ASSEMBLY OBSOLETE PUMP INLET MANIFOLD ASSEMBLY
Worcester part no. 87161215520
3 Part number 87161567640, PRESSURE RELIEF VALVE/HOSE PRESSURE RELIEF VALVE/HOSE
Worcester part no. 87161567640		 £14.23
4 Part number 87161483540, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483540		 £1.57
5 Part number 87161483560, WIREFORM SPRING (10X) WIREFORM SPRING (10X)
Worcester part no. 87161483560		 £3.98
6   PIPE - RETURN ASSEMBLY RSF
Worcester part no. 87161165470		 £22.27
6   NOW USE 87161165470 PIPE - RETURN ASSEMBLY RSF
Worcester part no. 87161217310
7 Part number 87161408050, O-RING 2.62 X 15.54 ID EP O-RING 2.62 X 15.54 ID EP
Worcester part no. 87161408050		 £2.79
8   NOW USE 87160120730 PIPE - ASSEMBLY EXPANSION VESSEL
Worcester part no. 87161217280
8 Part number 87160120730, VENTING PIPE VENTING PIPE
Worcester part no. 87160120730		 £24.69
9 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
9 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
10 Part number 87161408060, O-RING 2.62 X 17.86 AFTER FD992 O-RING 2.62 X 17.86 AFTER FD992
Worcester part no. 87161408060		 £2.79
11 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
11 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
12 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £2.79
13 Part number 87161408520, O-RING 2.0X14 ID EPDM 70 SHORE O-RING 2.0X14 ID EPDM 70 SHORE
Worcester part no. 87161408520		 £1.45
14 Part number 87161405160, AIR VENT MANUAL 1/4 BSP AIR VENT MANUAL 1/4 BSP
Worcester part no. 87161405160		 £10.20
15 Part number 87161483100, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483100		 £2.95
16 Part number 87161412130, DISCHARGE ELBOW DISCHARGE ELBOW
Worcester part no. 87161412130		 £7.75
17 Part number 87161022720, ADAPTER ADAPTER
Worcester part no. 87161022720		 £7.91
