WORCESTER
GREENSTAR COMBI 42 CDI HE (CLASSIC) - (Gas Valve)
Appliance Code: 47-406-10

Appliance Diagram


Gas Valve diagram for Worcester Greenstar Combi 42 CDI HE (Classic)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87172044530, NOW USE 8716118443 FAN NOW USE 8716118443 FAN
Worcester part no. 87172044530
1 Part number 87161160670, FAN BEFORE FD790 FAN BEFORE FD790
Worcester part no. 87161160670		 £185.99
1 Part number 8716118443, FAN After FD791 FAN AFTER FD791
Worcester part no. 8716118443		 £185.99
2 Part number 87290001830, WASHER WASHER
Worcester part no. 87290001830		 £8.59
3 Part number 87228801750, O-RING (10X) O-RING (10X)
Worcester part no. 87228801750		 £11.98
4 Part number 87133060530, THROTTLE THROTTLE
Worcester part no. 87133060530		 £38.18
5 Part number 87105061610, PROTECTIVE CAP (10X) AFTER FD887 PROTECTIVE CAP (10X) AFTER FD887
Worcester part no. 87105061610		 £2.00
6 Part number 87123050920, LEAD SEAL LEAD SEAL
Worcester part no. 87123050920		 £1.37
8 Part number 87107353660, NOW USE 87186630720 SUCTION PIPE NOW USE 87186630720 SUCTION PIPE
Worcester part no. 87107353660
8 Part number 87186630720, RESONATOR AIR INTAKE MK1.75 RESONATOR AIR INTAKE MK1.75
Worcester part no. 87186630720		 £13.84
11 Part number 87107353010, GAS PIPE GAS PIPE
Worcester part no. 87107353010		 £29.03
12 Part number 87102051030, O-RING (10X) O-RING (10X)
Worcester part no. 87102051030		 £2.79
13 Part number 87101031610, WASHER 18,3X24,3 (10X) WASHER 18,3X24,3 (10X)
Worcester part no. 87101031610		 £8.27
14   CONNECTING PIPE
Worcester part no. 87107352980		 £3.13
16 Part number 87105061170, PROTECTIVE CAP PROTECTIVE CAP
Worcester part no. 87105061170		 £1.37
17   OBSOLETE LEAD SEAL
Worcester part no. 87123050230
17 Part number 87123050770, SECURITY TAG BLACK SECURITY TAG BLACK
Worcester part no. 87123050770		 £26.71
18 Part number 87161120610, FAN MOUNTING PLATE ASSEMBLY FAN MOUNTING PLATE ASSEMBLY
Worcester part no. 87161120610		 £9.15
19   GAS SUPPLY PIPE
Worcester part no. 87107353070		 £41.80
21 Part number 87182252430, CONVERSION KIT SIT 848 CONVERSION KIT SIT 848
Worcester part no. 87182252430		 £172.49
21 Part number 87182213470, NOW USE 87161165150 (dependent on serial no.) GAS VALVE SIT 848 NOW USE 87161165150 (DEPENDENT ON SERIAL NO.) GAS VALVE SIT 848
Worcester part no. 87182213470

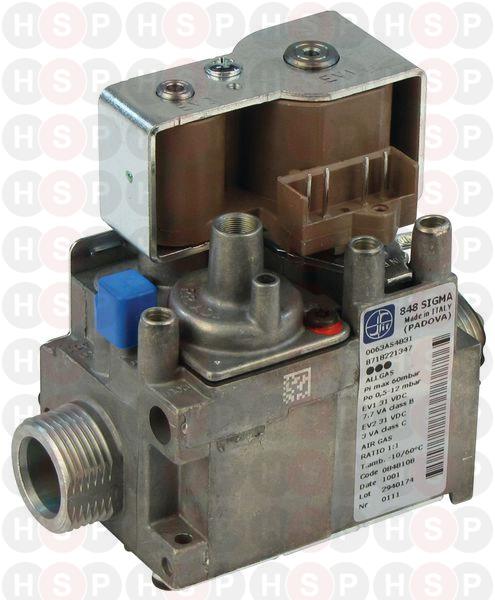

21 Part number 87161165150, GAS_VALVE SIT 848 GAS_VALVE SIT 848
Worcester part no. 87161165150		 £110.76
22 Part number 87182210630, PRESSURE BALANCE TUBE PRESSURE BALANCE TUBE
Worcester part no. 87182210630		 £3.13
23 Part number 87182223150, ADAPTER ADAPTER
Worcester part no. 87182223150		 £15.61
24 Part number 87182210620, ANGLE BRACKET SIT 848 ANGLE BRACKET SIT 848
Worcester part no. 87182210620		 £2.44
25 Part number 29106124240, SCREW NO8X3/8" PHILLIPS (10X) SCREW NO8X3/8" PHILLIPS (10X)
Worcester part no. 29106124240		 £0.59
26   GAS PIPE
Worcester part no. 87182210600		 £31.08
27 Part number 87182210590, GAS SUPPLY PIPE GAS SUPPLY PIPE
Worcester part no. 87182210590		 £37.68
