DIPLOMAT 55/68 CONVERTIBLE SB - (Identification)
Appliance Code: 41-591-48

Appliance Diagram


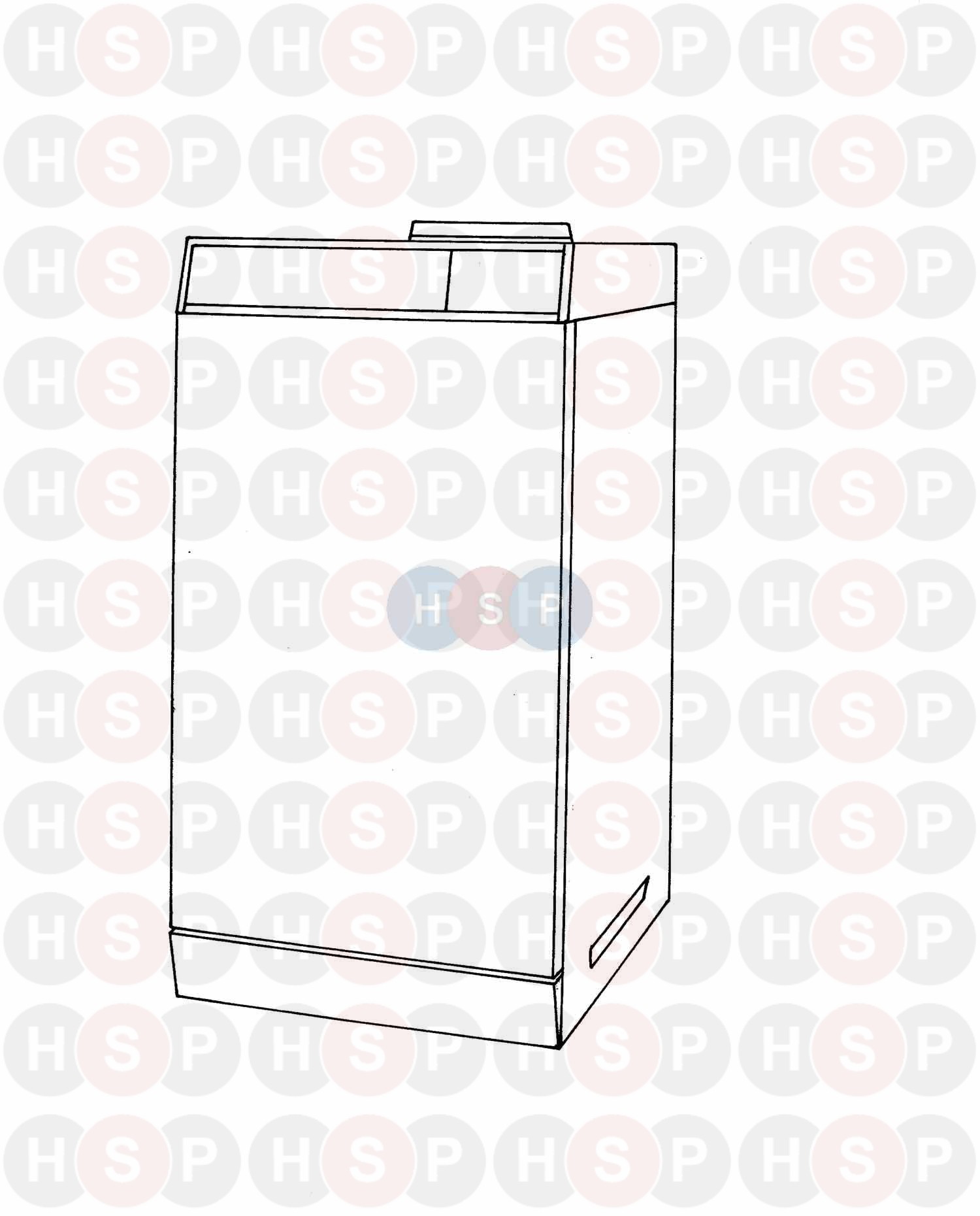

Identification diagram for Potterton Diplomat 55/68 Convertible SBClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE WATERWAY SECTION SUB ASSEMBLY
Potterton part no. 906921
2   OBSOLETE COVER MUD HOLE FRONT R/
Potterton part no. 314265
3   OBSOLETE GASKET MUD HOLE COVER
Potterton part no. 31426901
4   OBSOLETE REAR MUD HOLE COVER
Potterton part no. 314110
5   OBSOLETE GASKET MUD HOLE REAR EARLY R/
Potterton part no. 314111
6   OBSOLETE STUD 3/8WH X 1.1/2 MS SF
Potterton part no. 618103
7   OBSOLETE STUD 3/8WH X 2 MS SF
Potterton part no. 618104
8   OBSOLETE STUD 3/8 BSW X 1 MS SELF
Potterton part no. 619801
13   OBSOLETE FRONT MUD HOLE COVER CI TAPPED 1/2
Potterton part no. 314266
22   OBSOLETE THERMOSTAT POCKET
Potterton part no. 405109
25   OBSOLETE HEADER FLOW AND RETURN
Potterton part no. 315116
26 Part number 376523, OBSOLETE FLOW HEADER GASKET OBSOLETE FLOW HEADER GASKET
Potterton part no. 376523
32   OBSOLETE DRAINING TAP 1/2INCH B.S.P.T
Potterton part no. 629751
37   OBSOLETE GASKET FLUEWAY COVER
Potterton part no. 31511101
40   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 315104
53   OBSOLETE DRAUGHT DIVERTER ALUMINIUM
Potterton part no. 314056
65   OBSOLETE CONTROL BOX SR KIT 240V R/R S
Potterton part no. 905303
66   OBSOLETE THERMOSTAT RANCO
Potterton part no. 314133
67   OBSOLETE KNOB THERMOSTAT DEG.F
Potterton part no. 405112
74   OBSOLETE BASE TRAY MS SPECIAL
Potterton part no. 315150
109   OBSOLETE PRES TEST NIPPLE 1/8 BSP
Potterton part no. 400988
112   OBSOLETE PILOT ASSY
Potterton part no. 905278
112   BRKT B TYPE L LH TARGET
Potterton part no. 410483
115 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788		 £8.96
115 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701
116 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723
118   COMPRESSION NUT 1/8" BSP
Potterton part no. 401582		 £5.12
124   OBSOLETE COCK GAS 3/4 F/F UNION ASSY
Potterton part no. 629765
170 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492		 £5.88
175   OBSOLETE BRUSH FLUE 6 X 2 DIA X 24 LG
Potterton part no. 595012		 £4.68
