BAXI
EBONY SUPER LPG - (Outer Case)
Appliance Code: 32-077-38

Appliance Diagram

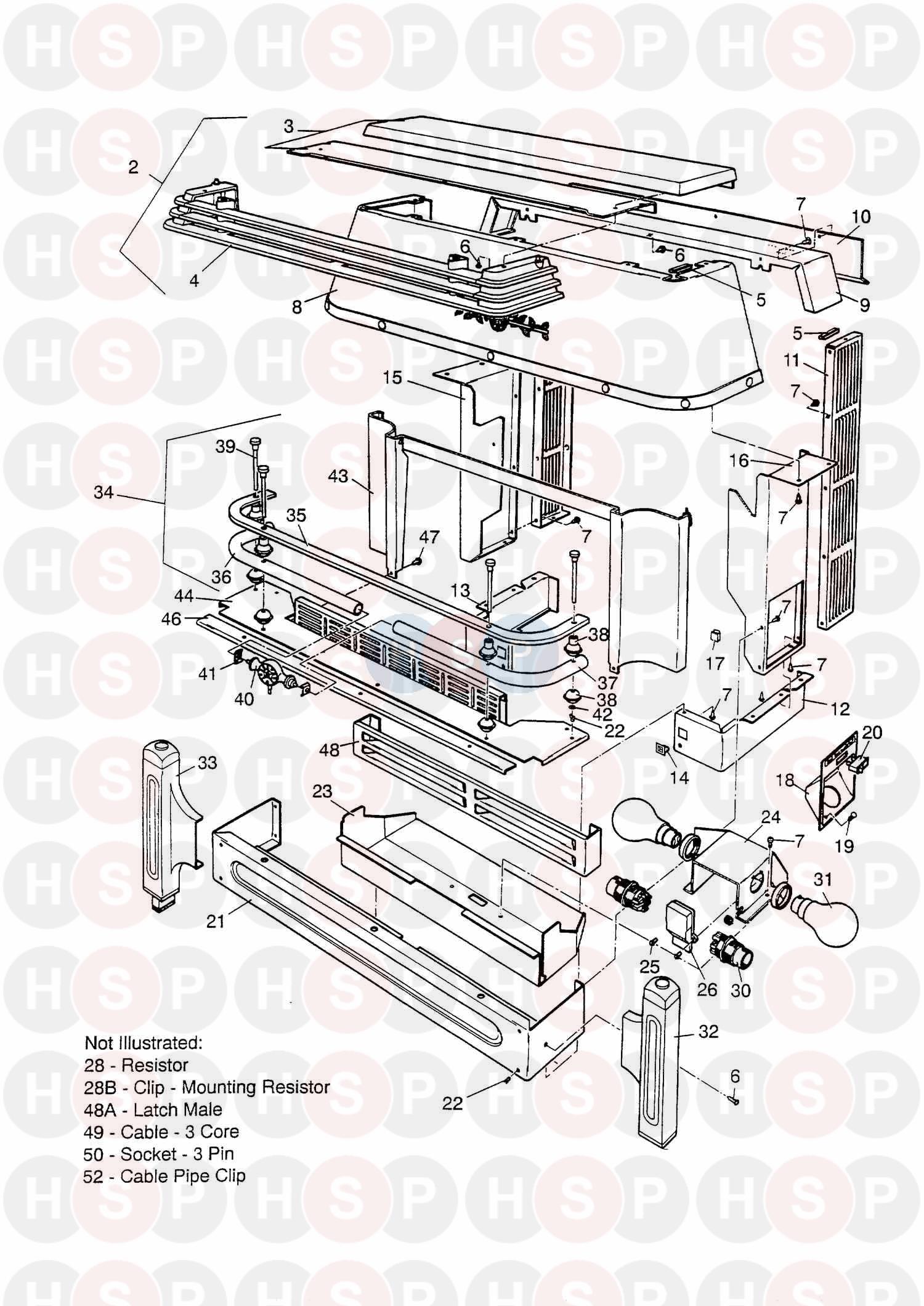

Outer Case diagram for Baxi Ebony Super LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE
Baxi part no. 236772

2   OBSOLETE NITRILE WASHER PACK
Baxi part no. 236815

3 Part number 236818, OBSOLETE KIT-PANEL-TOP-EBONY SUPER OBSOLETE KIT-PANEL-TOP-EBONY SUPER
Baxi part no. 236818

4   OBSOLETE TEMPLATE INSTALLATION
Baxi part no. 236814

5   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010
£2.04
6   OBSOLETE TAPPING SCREW ISO NO. 8AB X 13 RECESSED FL
Baxi part no. 062651

7 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
8 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549
£3.12
9   OBSOLETE RESTRICTOR PACK 50 LTR
Baxi part no. 236817

10   PIECE DISTANCE TOP
Baxi part no. 235697
£4.83
11   DISTANCE PIECE-REAR-G.F.
Baxi part no. 040921
£12.88
12   OBSOLETE PIECE DISTANCE SIDE
Baxi part no. 235699

13   PANEL BASE SIDE RH
Baxi part no. 235700
£5.56
14   OBSOLETE PANEL BASE SIDE LH
Baxi part no. 235701

15 Part number 230724, LATCH-FEMALE LATCH-FEMALE
Baxi part no. 230724
£9.77
16   PANEL SIDE UPPER LH
Baxi part no. 235702
£8.96
17   PANEL SIDE UPPER RH
Baxi part no. 235703
£4.72
18   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539

19   OBSOLETE BEZEL - EBONY SUPER
Baxi part no. 236813

20 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595

21 Part number 042776, OBSOLETE SWITCH-ROCKER-BROWN. OBSOLETE SWITCH-ROCKER-BROWN.
Baxi part no. 042776

22   OBSOLETE ASSY PANEL HEARTH EBONY SUPER
Baxi part no. 236816

23 Part number 043045, CLIP-SPRING-UTD.CARR REF.24840 CLIP-SPRING-UTD.CARR REF.24840
Baxi part no. 043045
£2.71
24   KIT REFLECTOR LAMP LOWER -GF
Baxi part no. 225693
£17.95
25 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683
£2.53
26 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023

26   CLIP-RESISTOR
Baxi part no. 043174
£2.20
26   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144

27 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560
£3.12
28 Part number 040950, PLUG ASSY.HNESS B & G/Y)&2LEAD PLUG ASSY.HNESS B & G/Y)&2LEAD
Baxi part no. 040950
£32.36
29 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260

29 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT

30   OBSOLETE WASHER - SILICONE RUBBER M36
Baxi part no. 043172

31 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261

32   OBSOLETE LEG & FINIAL ADJ FOOT RH
Baxi part no. 235723

33   LEG & FINIAL ADJ FOOT LH
Baxi part no. 235724
£16.67
34   RAIL-TOP/BOTTOM-ASSY.
Baxi part no. 043029
£94.31
35   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040776

36   NOW USE 043029KIT RAIL TOP BERMUDA B
Baxi part no. 040777

37   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040778

39   KIT-PIN-SECURING-BERMUDA B
Baxi part no. 040804
£16.14
40   KIT-MOTIF-ROSE-BERMUDA B
Baxi part no. 040807
£23.48
41   CLIP-SPRING-MOTIF-RETAINING.
Baxi part no. 043049

42   FIX PUSH ON 1/8IN
Baxi part no. 042499
£2.51
43 Part number 040951, REFLECTOR-ASSY-BERMUDA GF REFLECTOR-ASSY-BERMUDA GF
Baxi part no. 040951

44 Part number 040952, OBSOLETE COVER-PANEL HEARTH ASSY OBSOLETE COVER-PANEL HEARTH ASSY
Baxi part no. 040952

45   TRIM PANEL HEARTH
Baxi part no. 235705
£6.26
46 Part number 062699, SCR-ST-No6x3/8 PAN HD PZ ZP SCR-ST-NO6X3/8 PAN HD PZ ZP
Baxi part no. 062699
£3.12
47   OBSOLETE CONTROLS COVER ASSY
Baxi part no. 235710

47   LATCH-MALE
Baxi part no. 230723

50   OBSOLETE CABLE-CLAMP-ENOTS-340218-03
Baxi part no. 092062

51 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325

52   OBSOLETE LPG - HEAT EXCHANGER
Baxi part no. 090093

53   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934

54   OBSOLETE BOX COMBUSTION
Baxi part no. 090084

55   OBSOLETE STRIP - SEAL RETAINING
Baxi part no. 040978

56   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985
£2.68
57   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308

58 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111

59   OBSOLETE CHANNEL - GLASS FRAME SUPPORT
Baxi part no. 040936

60 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
61   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725

62   OBSOLETE EXTENSION-PLATE-BACK
Baxi part no. 222983

63   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729
£2.03
64   OBSOLETE PLATE-BACK-BAXI GAS FLAME
Baxi part no. 090103

65   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
66   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706
£2.42
70   OBSOLETE FRAME - MOUNTING.- G.F
Baxi part no. 220466

71   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092

72   OBSOLETE BRKT-PIPE-INLET FEED.GAS FLAME
Baxi part no. 090089

73 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602

74 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
75   BRKT GAS TAP MOUNTING
Baxi part no. 040943
£1.67
76 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313
£1.87
76   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749
£2.33
77   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 062723

78 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955
£168.60
79   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944
£7.37
80   OBSOLETE KIT - CLOSURE PLATE
Baxi part no. 090090

82   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

83 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
85   OBSOLETE CONTROL KNOB ASSY - EBONY LPG
Baxi part no. 236610

87   OBSOLETE PIPE-INLET FEED ASSY-G/FLAME 1
Baxi part no. 092073

88   OBSOLETE FFD/GAS TAP-GAS FLAME I
Baxi part no. 092076

89 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152
£3.64
90 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

91 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462

92 Part number 090091, NOW USE 224513 PIPE BNR.FEED REAR NOW USE 224513 PIPE BNR.FEED REAR
Baxi part no. 090091

92 Part number 224513, PIPE-BNR.FEED-REAR-GF/GAS FL-P PIPE-BNR.FEED-REAR-GF/GAS FL-P
Baxi part no. 224513
£19.85
93 Part number 040956, OBSOLETE PIPE BURNER OBSOLETE PIPE BURNER
Baxi part no. 040956

96 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412

97   OBSOLETE PIPE-PILOT FEED-NUTS/OLIVES GF
Baxi part no. 040958

98   OBSOLETE PILOT BURNER
Baxi part no. Q359A1074

99 Part number 082212, OBSOLETE INJECTOR-PILOT-BRAZ 5000MK2 I OBSOLETE INJECTOR-PILOT-BRAZ 5000MK2 I
Baxi part no. 082212

102   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439
£3.01
103   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451

104   OBSOLETE ELECTRODE-IGN-(LPG)-BER GF
Baxi part no. 043209

106 Part number 226262, T/COUPLE-18 -H/WELL Q309A 1954 T/COUPLE-18 -H/WELL Q309A 1954
Baxi part no. 226262
£28.74
107 Part number 043120, OBSOLETE LEAD-ELECTRODE-ASSY-G.F. OBSOLETE LEAD-ELECTRODE-ASSY-G.F.
Baxi part no. 043120

108   OBSOLETE SLEEVE 6MM ELAS.GLS/FIBX260MM
Baxi part no. 040960

109   OBSOLETE COAL BED-GAS FLAME(PROPANE)
Baxi part no. 092088

110   OBSOLETE INSTRUCTIONS INSTALLATION
Baxi part no. 236202

111   OBSOLETE INSTRUCTIONS USERS
Baxi part no. 236203
