BAXI
BRAZILIA 8000 S BF CAT 1N - (Optional Extras)
Appliance Code: 35-077-08

Appliance Diagram


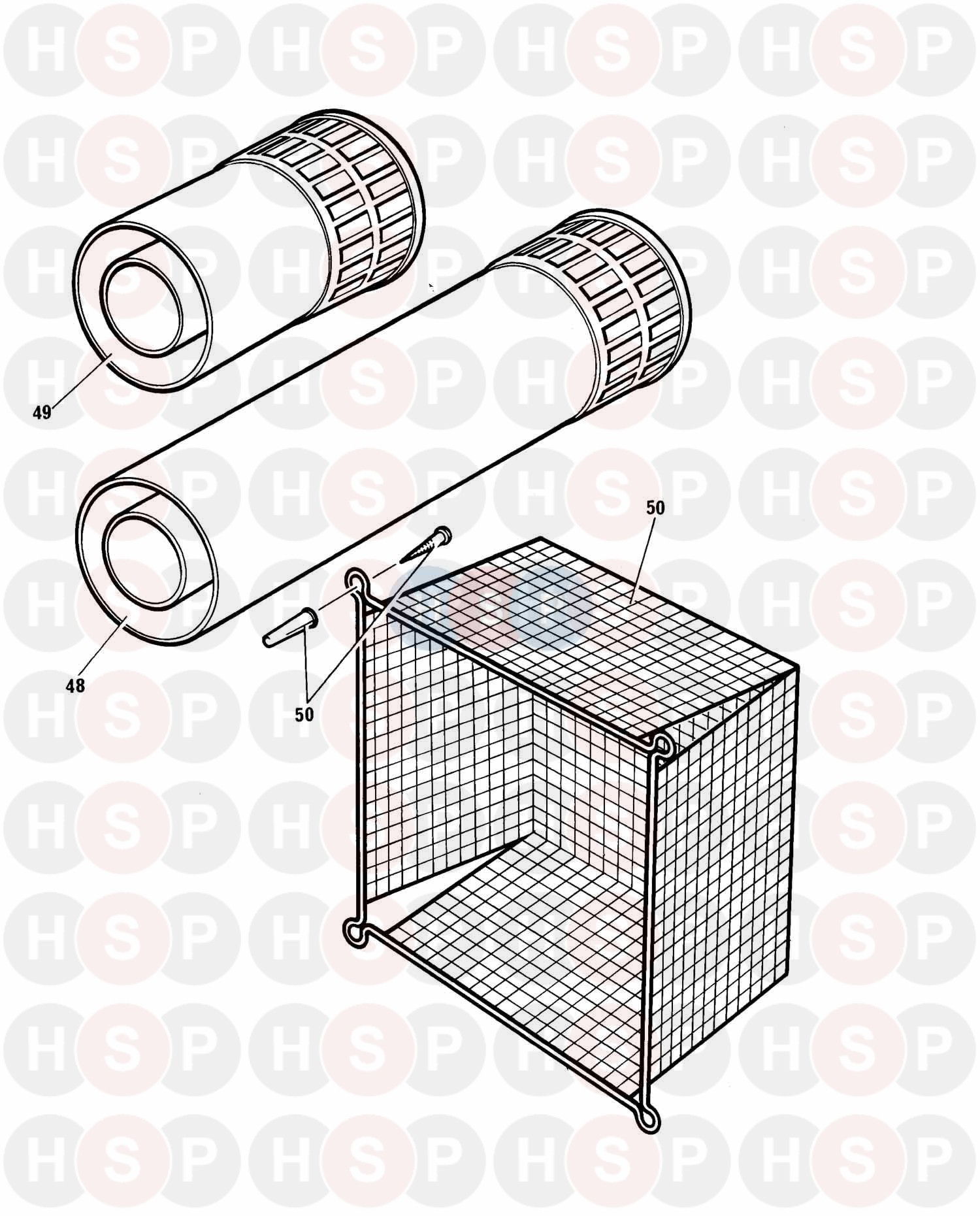

Optional Extras diagram for Baxi Brazilia 8000 S BF CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE ASSEMBLY
Baxi part no. 080370

2   OBSOLETE SIDE-CHEEK-ASSY-LH-BRAZ 8000 S
Baxi part no. 080369

3   OBSOLETE SIDE-CHEEK-ASSY-RH-BRAZ 8000 Z
Baxi part no. 080365

4   OBSOLETE KIT-PANEL-BRAZILIA 8000 S
Baxi part no. 080383

5 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571
£3.12
6   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010
£2.04
7   OBSOLETE HEAT SHIELD - OUTER CASE
Baxi part no. 080366

8   OBSOLETE SHIELD - RADIATION
Baxi part no. 080368

10 Part number 082351, OBSOLETE KNOB-CONTROL-BRAZ 8000 S OBSOLETE KNOB-CONTROL-BRAZ 8000 S
Baxi part no. 082351

11   OBSOLETE BACK PLATE ASSEMBLY
Baxi part no. 080346

12   OBSOLETE CABLE/PIPE CLIP (EDGE TYPE) - SPRING STEEL
Baxi part no. 082240

13   OBSOLETE SHIELD - HEAT AIR BOX
Baxi part no. 080260

14   OBSOLETE SCR-ST-NO8X3/8-PN POZI ZNPD
Baxi part no. 062626

15   OBSOLETE GROMMET AIR BOX. HEAT RESISTANT
Baxi part no. 082358

16   OBSOLETE WOOD SCREW NO.10 X 2INS. SLOTTED ROUND HEA
Baxi part no. 062367

17   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
18 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
19   OBSOLETE H/EXCH-SECT-REAR BRAZ 8000
Baxi part no. 081013

20   OBSOLETE KIT-GAS-H/EX-A/BOX-SEAL-B8000I
Baxi part no. 080297

21 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441
£3.01
22   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463

23 Part number 082234, OBSOLETE BURNER-BRAZILIA 8000 OBSOLETE BURNER-BRAZILIA 8000
Baxi part no. 082234

24 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
25   OBSOLETE ADAPT- INJ/GAS TAP BRAZ 8000
Baxi part no. 082242

26   OBSOLETE SHIELD-HEAT CONTROL-BRAZ.8000
Baxi part no. 080267

27   OBSOLETE NUT-LOCK-M15 X 1-4H-BRASS
Baxi part no. 042032

28   OBSOLETE INJECTOR-NG-AMAL-270 BRAZ 8000
Baxi part no. 082233

29   OBSOLETE ELECTRODE-SPARK IGN-5000MK2
Baxi part no. 082187

30   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
31   OBSOLETE SLEEVE - 6MM GLASS FIBRE X 100MM
Baxi part no. 080373

32   OBSOLETE HEAT EXCH.SECT.FRONT-BRAZ.8000
Baxi part no. 081014

33 Part number 100017, OBSOLETE KIT-SIGHT-WINDOW OBSOLETE KIT-SIGHT-WINDOW
Baxi part no. 100017

34   OBSOLETE SEAL-HEAT EXCHANGER-10MM X 1210MM
Baxi part no. 082231

35   OBSOLETE MACHINE SCREW M8 X 40 SLOTTED PAN HEAD - M
Baxi part no. 062682

36 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252

37 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
38   OBSOLETE ADAPTER-GAS INLET BRAZ MK2
Baxi part no. 082188

39   OBSOLETE WASHER-SEALING-M10
Baxi part no. 082118

40   OBSOLETE BRKT-ADAPT-SEC BRAZ 5000 MK2
Baxi part no. 080228

41   OBSOLETE NUT-LOCK-1/8IN BSP-ZNPD
Baxi part no. 082159

42   OBSOLETE TUBE-GAS TAP SUPPLY BRAZ 8000
Baxi part no. 082230

43 Part number 082229, OBSOLETE IGNITOR/GAS TAP-CONCENTRIC OBSOLETE IGNITOR/GAS TAP-CONCENTRIC
Baxi part no. 082229

44 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

47   OBSOLETE LINER WALL 9.75-13.75IN
Baxi part no. 080351

48   OBSOLETE KIT-FLUE TERM 15-19 BRAZ 8000
Baxi part no. 080263

49   OBSOLETE FLUE TERMINAL 5-9IN BRAZ 8000
Baxi part no. 080264

50 Part number 080266, KIT-GUARD-TERMINAL-BRAZ 8000 KIT-GUARD-TERMINAL-BRAZ 8000
Baxi part no. 080266
