WORCESTER
GREENSTAR 30 HE PLUS - (Tubes & Connections)
Appliance Code: 47-311-75

Appliance Diagram


Tubes & Connections diagram for Worcester Greenstar 30 HE PlusClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87154069500, HEAT EXCHANGER HEAT EXCHANGER
Worcester part no. 87154069500		 £167.53
2 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
2 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
3 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
4 Part number 87107255090, PIPE - FLOW PIPE - FLOW
Worcester part no. 87107255090		 £123.28
5 Part number 87101030460, WASHER 1" (10X) WASHER 1" (10X)
Worcester part no. 87101030460		 £2.95
5 Part number 87161156820, WASHER 1" (1X) WASHER 1" (1X)
Worcester part no. 87161156820		 £2.95
8 Part number 87107253280, SYPHON SYPHON
Worcester part no. 87107253280		 £49.27
9 Part number 87107255120, PIPE - CONNECTING HOT PIPE - CONNECTING HOT
Worcester part no. 87107255120		 £66.31
10 Part number 87102050800, O-RING 7,75X2,1 (10X) O-RING 7,75X2,1 (10X)
Worcester part no. 87102050800		 £0.59
10 Part number 87161074400, O-RING 7.75 X 2.1 L (X1) O-RING 7.75 X 2.1 L (X1)
Worcester part no. 87161074400		 £0.59
11 Part number 87145000540, TEMPERATURE SENSOR TEMPERATURE SENSOR
Worcester part no. 87145000540		 £36.94
12   PIPE - CONNECTING
Worcester part no. 87107255150		 £32.54
13 Part number 87167711550, NOW USE 87161165490 O-RING 13,87X3,53 (10X) NOW USE 87161165490 O-RING 13,87X3,53 (10X)
Worcester part no. 87167711550
13 Part number 87161165490, O-RING 13,87X3,53 (10X) O-RING 13,87X3,53 (10X)
Worcester part no. 87161165490		 £3.13
14 Part number 87107259830, PIPE - VENTING PIPE - VENTING
Worcester part no. 87107259830		 £72.30
15   PIPE - CONNECTING COLD
Worcester part no. 87107255140		 £45.80
16 Part number 87172043500, NOW USE 8737714720 PUMP DDPWM 15-60 130MM G1 230V 50HZ NOW USE 8737714720 PUMP DDPWM 15-60 130MM G1 230V 50HZ
Worcester part no. 87172043500

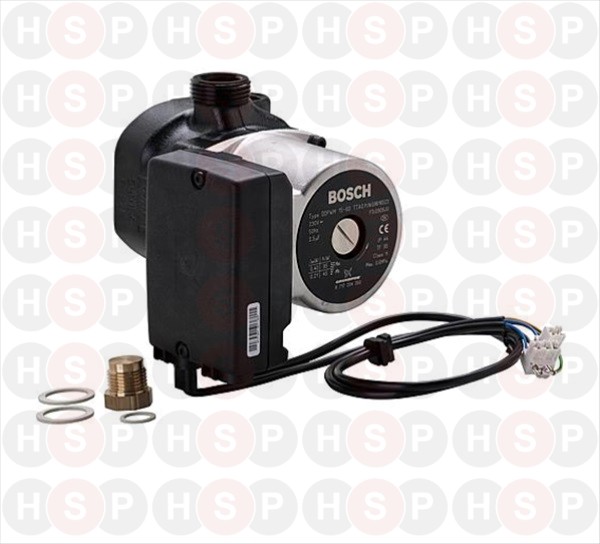

16   PUMP UPMO 15-50 130MM G1 230V 50HZ
Worcester part no. 8737714720		 £235.78
19 Part number 87112000160, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87112000160		 £0.59
20 Part number 87102050850, O-RING O-RING
Worcester part no. 87102050850		 £0.59
21   WIREFORM SPRING (10X)
Worcester part no. 87112000150		 £0.79
22 Part number 87174010120, SAFETY RELIEF VALVE 3BAR SAFETY RELIEF VALVE 3BAR
Worcester part no. 87174010120		 £32.54
23 Part number 87155044740, ADAPTER ADAPTER
Worcester part no. 87155044740		 £65.40
24 Part number 87172043450, MOTOR MOTOR
Worcester part no. 87172043450		 £90.39
25 Part number 87170100620, 3-WAY VALVE 3-WAY VALVE
Worcester part no. 87170100620		 £147.66
26 Part number 87102050870, O-RING O-RING
Worcester part no. 87102050870		 £0.59
27 Part number 87172080790, MANOMETER MANOMETER
Worcester part no. 87172080790		 £45.80
28   PIPE - RETURN
Worcester part no. 87107255160		 £32.54
30 Part number 87107031780, NOW USE 87182201060 HOSE NOW USE 87182201060 HOSE
Worcester part no. 87107031780
30 Part number 87182201060, HOSE HOSE
Worcester part no. 87182201060		 £7.15
31 Part number 87101031540, WASHER SET WASHER SET
Worcester part no. 87101031540		 £4.19
32 Part number 87107254480, SYPHON SYPHON
Worcester part no. 87107254480		 £45.80
33 Part number 87133056450, CONNECTION UNION CONNECTION UNION
Worcester part no. 87133056450		 £32.54
34   PUMP CABLE
Worcester part no. 87144113070		 £55.75
35 Part number 87229975130, PLUG-CHROME PLATED BRASS C/W O-RING PLUG-CHROME PLATED BRASS C/W O-RING
Worcester part no. 87229975130		 £7.85
